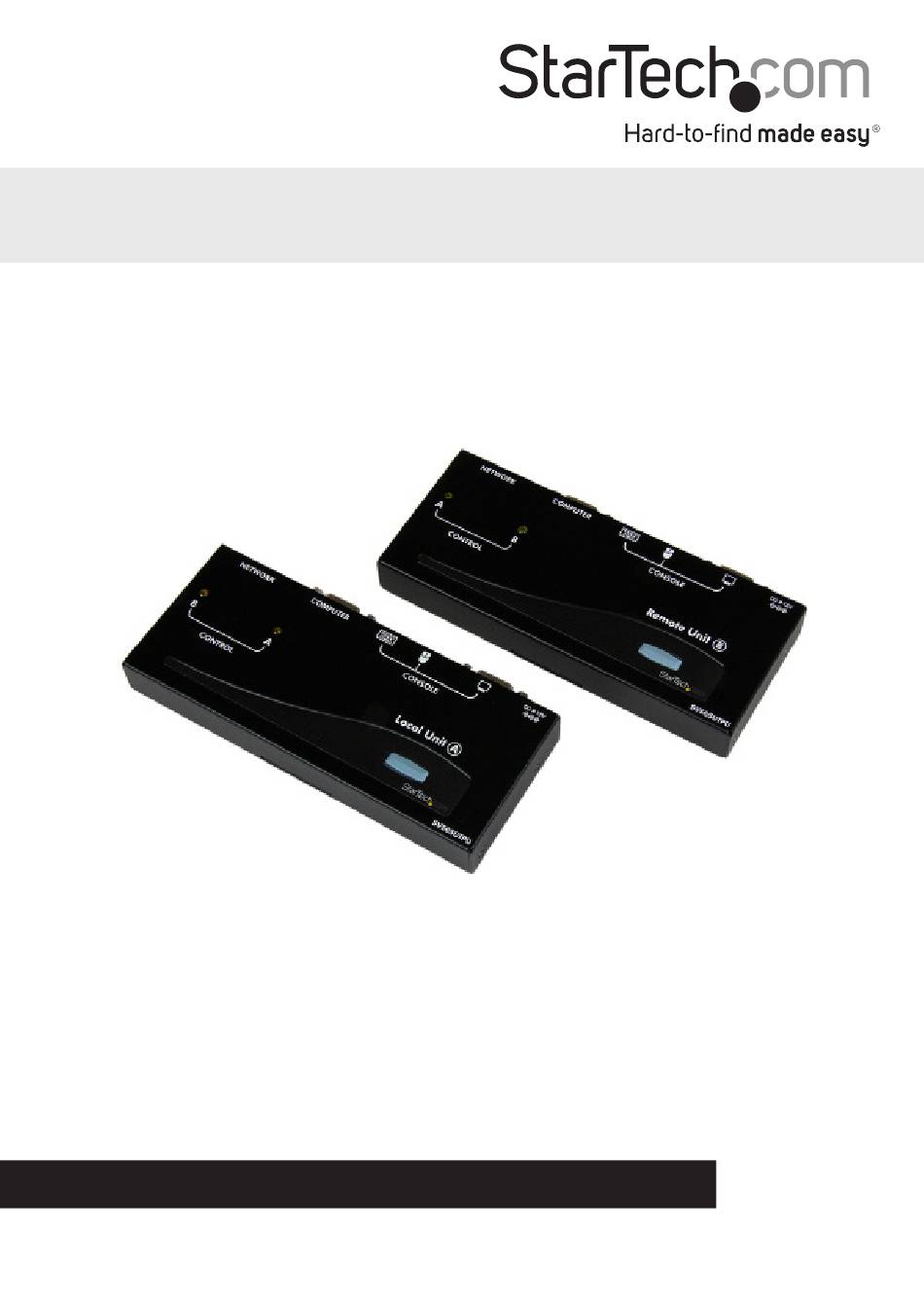

VGA USB KVM Console Extender over
CAT5 UTP (500 ft)
SV565UTPU
SV565UTPUGB
SV565UTPUEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/26/2023
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV565UTPUGB
Summary of Contents for StarTech.com SV565UTPUGB
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/26/2023...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Connecting Your KVM Extender ............2 Preparing Your Site ........................... 2 Installing the Host Unit ........................... 3 Installing the Remote Unit ........................3 (Remote Unit Only) ........4 Video Compensation Using the KVM Extender ...............5 Using the Host Unit .......................... -
Page 4: Introduction
KVM view at the remote location. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Packaging Contents • 1 x host unit •... -
Page 5: Connecting Your Kvm Extender
This product will also control a KVM switch, allowing you to manage more than one computer remotely. In this configuration, you can connect the KVM extender’s Host Unit to the “console” ports on the KVM. You must use the provided power adapters if using this configuration. -
Page 6: Installing The Host Unit
VGA and input connections. Using a StarTech.com integrated KVM cable, connect the end of the cable that has two (USB) or three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard PS/2 connectors on the computer as appropriate. -
Page 7: Video Compensation (Remote Unit Only)
Video Compensation (Remote Unit Only) Video Compensation allows the user to adjust the equalization on the Remote Unit to optimize video performance based on the length of cable being used, as well as other factors that may affect . There are five segments of various lengths of CAT 5 cables from which to chose;... -
Page 8: Using The Kvm Extender
Using the KVM Extender This section details how to use your KVM extender at both the host and remote locations. Using the Host Unit The Host Unit allows users connected to the Host and Remote units to share control of devices (hosts, computers, KVM Switches) connected to it. - Page 9 Keyboard Shortcut Command Sequences With Compatibility Standard Command Description Mode Enabled Toggles control of Computer [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] A between Auto, Local, and Remote modes [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence Enables (2 beeps) or disables (1 beep) Compatibility Mode...
- Page 10 With Compatibility Standard Command Description Mode Enabled Privacy Setting: A. Local Unit in Local mode ( LED B: Off, LED A: On) 1 beep: Reset to Factory Default. 2/3 beeps: Disable the Local Unit output video signal. B. Local Unit in Auto mode ( LED A&B flashes alternately) 1 beep: Reset to Factory Default.
- Page 11 Beep Codes Some of the keyboard command sequences you issue to the Host Unit have multiple possible settings. The unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled...
-
Page 12: Using The Remote Unit
Using the Remote Unit The Remote Unit allows a user at the Remote Unit to assume control of devices connected to the Host Unit, if the Host Unit is set to Auto or Remote mode, and it also permits the user seated at the Remote Unit to use any connected system as though the KVM Extender was transparent. - Page 13 With Compatibility Mode Standard Command Description Enabled Switches control to [Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1] Computer B Switches control to Computer A (input [Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2] allowed only if the Host Unit is in Remote or Auto mode)
- Page 14 Beep Codes Some of the keyboard command sequences you issue to the Remote Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled...
-
Page 15: Set Maximum Video Resolution
Set Maximum Video Resolution By default the KVM switch is set to output an EDID signal with a maximum video resolution of 1024 x 768 to the host computer systems. To be able to set a higher video resolution on the host computer systems, use the following command with the 4 digit code for the maximum video resolution you wish to set. -
Page 16: Troubleshooting
Troubleshooting How do the A and B modes work for the local and remote units? In order to properly control the local computer at the remote end, it is useful to understand the different possible states the two units can be in. Note: In the following descriptions, “console”... -
Page 17: Specifications
Specifications 1024 x 768 (at maximum UTP cable length) Maximum Actual maximum resolution varies by network cable Resolution length Maximum Range 500 feet (150 meters) Network Cabling Straight-through Unshielded Twisted Pair (UTP) Cat. 5+ Type Each, Host and Remote Unit 2 x HD-15 female (1 x KVM, 1 x console VGA) Connectors 1 x RJ-45... -
Page 18: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 19 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
