Gooxi SL401-G4 Series User Manual page 25

Temperature-controlled fan
2
socket
SFF-8639 MiniSAS
3
connector

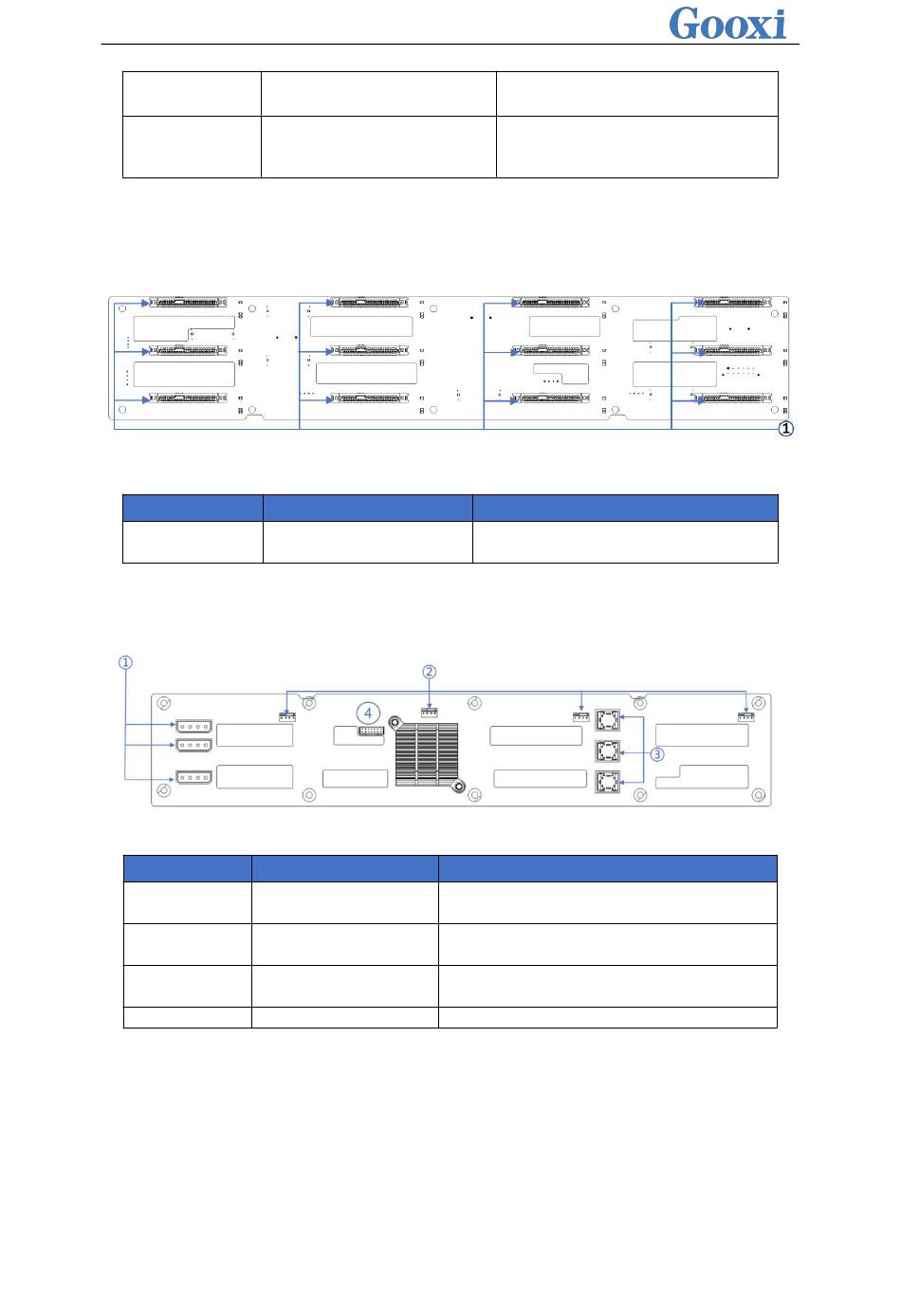

Rear 12×3.5-inch Backplane

TOP surface
No. Description
29-pin SATA/SAS hard
1
drive connector
Bottom surface
No. Description
1 Power connector
Temperature-controll
2
ed fan socket
SFF-8639 MiniSAS
3
connector
4 27 pin header
used for 4-pin fan interface
provides SAS/SATA x4 interface
for connecting PCH or
HBA/RAID Card
Table 2-14
Figure 2-24
supports SAS/SATA 3.0 hard drive
interface for connecting HDD/SSD
Table 2-15
Figure 2-25
Function
backplane power transmission connector
for 12V and 5V power transmission
used for 4-pin fan interface
provides SAS/SATA x4 interface for
connecting PCH or HBA/RAID Card
stray signal connector for debugging
Table 2-16
24
Function
