- Page 1 SL101-G3 Rackmount Server User Manual Document version: 01 Release date: 2023/12/28 Shenzhen Gooxi Information Security Co., Ltd.
-
Page 2: Statement
Gooxi provides this user manual "as is" and to the extent permitted by law, makes no express or implied warranties or guarantees, including but not limited to merchantability, fitness for a particular purpose, non-infringement of any rights of others, and any warranties or guarantees regarding the use or inability to use this user manual. -
Page 3: Foreword
Foreword This manual is the product technical manual for the Gooxi Whitely platform 1U model servers. It primarily provides an introduction and explanation of the product's appearance, structure, hardware installation, and basic configuration. Please note that this manual is intended for reference and research purposes for professional technical personnel. -
Page 4: Table Of Contents
Contents Statement..............................1 Foreword..............................2 1. Product Introduction ..........................5 1.1 Product Overview ........................5 1.2 Product Structure .........................6 1.3 Logical Structure .........................6 1.4 Product Specifications .........................8 2. Hardware Description ..........................9 2.1 Front Panel ..........................9 2.1.1 Appearance ........................9 2.1.2 Indicator lights and buttons ..................9 2.2 Rear Panel ..........................11 2.2.1 Appearance ........................ - Page 5 2.8.2 PCIe slot description ....................17 2.8.3 PCIe expansion module ....................18 2.9 PCBA ............................18 2.9.1 Motherboard ........................ 18 2.9.2 Hard drive backplane ....................20 3. Installation Instructions ........................23 3.1 Chassis Top Cover Installation ..................... 23 3.2 Installation of Accessories .....................23 3.2.1 CPU installation ......................
-
Page 6: Product Introduction

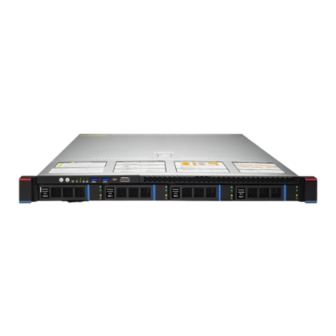

1.1 Product Overview SL101 Whitely 1U dual-socket rackmount server is a new generation 1U dual-socket rack server launched by Gooxi to meet the diverse needs of the Internet, IDC (Internet Data Center), cloud computing, enterprise markets, and telecommunications services. It... -
Page 7: Product Structure
1.2 Product Structure Product exploded view of SL101 Whitely 1U dual-socket rack server (example of 10-bay model) Structure diagram 1-3 Name Name Hard Drive CPU Heatsink Backplane Assembly Top Cover Fan Module Half-Height PCIe Module Cable Management Hole Rear I/O Panel Air Shroud OCP3.0 Memory Stick... - Page 8 Motherboard logic block diagram 1-4 The CPU uses the third generation Intel® Xeon® Scalable processor, LGA 4189 socket, TDP power consumption 270W. Each CPU supports 8 channels of DDR4, and each channel supports 2 memory modules, RDIMM/LRDIMM. Two CPUs support a maximum capacity of 12 TB (including Optane memory).
-
Page 9: Product Specifications
1.4 Product Specifications SL101-D10R-G3 Product Series SL101-D04R-G3 SL101-D10R-NV-G3 Form Factor 1U 4-bay 1U 10-bay Dimension 748*433.4*43.6mm(depth*width*height) Processor Supports 1 or 2 3rd generation Intel® Xeon® Scalable series processors DDR4 memory slots, supporting DDR4 LRDIMM/RDIMM2666 /2933/3200 MHz; the maximum capacity of a single slot is 256GB, Memory compatible with Optane memory, and the entire machine supports a maximum memory capacity of 12 TB... -
Page 10: Hardware Description
2. Hardware Description 2.1Front Panel 2.1.1 Appearance 4x3.5-inch hard drive configuration Figure 2-1 Name Name Left Ear Hanging VGA Port Front Panel Indicator Light Right Ear Hanging USB3.0 Port 3.5-inch Hard Drive Table 2-1 10x2.5-inch hard drive configuration Figure 2-2 Name Name... - Page 11 Indicator light/button Indicator light/button Power switch System alarm indicator light button/indicator light Network port 1 connection UID button/indicator light status indicator light Network port 2 connection Server restart button status indicator light Hard drive indicator light LED status description logo Indicator Status description light/button...
-
Page 12: Rear Panel
the motherboard. Ethernet Port Indicator Lights for Corresponding Network Card Insertion: Network port Green (Solid): Indicates a normal Ethernet connection connection. status indicator Off: Indicates the Ethernet port is not in use or light there is a fault. Note: Corresponds to the two 1G Ethernet ports on the motherboard. -
Page 13: Interface
When configuring 1 processor, it needs to be installed at CPU 0 position. Processors configured on the same server must be of the same model. For specific optional system configurations available for purchase, please consult with Gooxi sales. The location of the processor is as shown below: ... -
Page 14: Memory
Figure 2-7 2.4 Memory 2.4.1 Memory slot location This motherboard utilizes the Intel Whitely platform, paired with Intel Xeon ICE Lake CPUs. Each CPU supports 8 channels, with 2 DIMMs per channel. The motherboard can support 32 DIMMs in total. When only one DIMM is inserted, it should be prioritized to be inserted into the slot highlighted in blue on the diagram (the plastic color of the slot on the slot board is blue). -
Page 15: Memory Compatibility Information
2.4.2 Memory compatibility information The motherboard supports DDR4 RDIMM/LRDIMM server memory, and the memory frequency supports 2666/2933/3200. Note: The same server must use the same model of DDR4 memory, and all memories must run at the same speed. The speed value is the lowest of the following: The memory speed supported by a specific CPU. -
Page 16: Storage
2.5 Storage 2.5.1 Hard drive configuration Maximum number of front Configuration Description hard drives (pcs) 4 x 3.5-inch hard drive (4 x 3.5/2.5) – Slots 0~7 SAS hard drives require an passthrough support SAS/SATA hard optional SAS passthrough card configuration drives or RAID card for support 10-bay tri-mode backplane,... -
Page 17: Power Supply
For power modules configured on the same server, the power module models must be the same. For specific optional system options, please consult Gooxi sales. The power supply location is shown in the figure below: Figure 2-12 2.7 Fans... -
Page 18: I/O Expansion
Figure 2-13 2.8 I/O Expansion 2.8.1 PCIe slot location Figure 2-14 The Riser1 module provides Slot 0; the Riser2 module provides Slot 1. 2.8.2 PCIe slot description When CPU1 is not in place, its corresponding PCIe slot is unavailable. Subordinate PCIe slot PCIe standard... -
Page 19: Pcie Expansion Module
2.8.3 PCIe expansion module PCIE expansion module 1 x16 to x16 adapter card Figure 2-15 2.9 PCBA 2.9.1 Motherboard Motherboard Figure 2-18 Name BMC_UART5, BMC debugging serial port Used for CPU0 VR upgrade and burning, no jumper cap is connected by default Used for CPU1 VR upgrade and burning, no jumper cap is connected by default... - Page 20 Rear USB3.0 connector q(x2) Trusted Platform Module (TPM) M.2 PCIE X2 CONN, only supports PCIe Only 2280 size SSD1/SSD2 specification CPLD JTAG Header, used to burn CPLD programs Front panel buttons, LED connector 2X10 BP HDD LED Connector (for Rear HDD BP backplane) sSATA, SATA 3.0 Connection from PCH (8643 miniSAS HD with PCH sSATA SGPIO Pins) *Nebula 3 Ver.A motherboard must use J27 and J48 to connect RM2112-SHDB-D1 /D2 to turn on the hard...
-
Page 21: Hard Drive Backplane
1X2 CD/DVD Power Connector NVME Key (VROC) VR Debug Mode Jump (Reserved for RD test Only) CPLD No CPU Power ON Jump (Reserved for RD test Only) 2X4 SATA sGPIO Header (for 8643 miniSAS HD Conn J29/J31) 2X4 sSATA sGPIO Header (for 8643 miniSAS HD Conn J28) BMC Watch Dog Timer Enable (Reserved for RD test Only) IPMB Connector SCY Strap, (2/3) High = Disable Flash Descriptor Security... - Page 22 Figure 2-20 Description Function Backplane power transmission ATX power input connector, used for 12V power 1、2 transmission Temperature controlled fan For 4pin fan interface socket SFF-8643 12Gb Backplane bay signal interface interface Table 2-14 10×2.5-inch direct-connect backplane TOP surface Figure 2-21 Description Function...
- Page 23 Table 2-16 10×2.5-inch NVME tri-mode direct-connect backplane TOP surface Description Function 1. Supports up to 32G/b NVME hard drive NVMe/SAS/SATA 2. Supports up to 12G/b SAS hard drive Hard Drive Connector 2. Supports up to 6G/b SATA hard drive 4.
-
Page 24: Installation Instructions
3. Installation Instructions 3.1 Chassis Top Cover Installation Step 1: Lift the slot at the opening position and push it in the direction shown in the diagram. Push forward in the direction of the arrow until it locks into place. ... -
Page 25: Heatsink Installation
Figure 3-3 3.2.2 Heatsink installation Step 1: Remove the processor idle bracket. (As shown in the figure below) Figure 3-4 Step 2: Align the heatsink with the heatsink mounting screws on the CPU socket, and tighten the heatsink mounting screws in the indicated sequence. (As shown in the figure below) Figure 3-5 Caution: The pins on the motherboard are very fragile and can be easily... - Page 26 DIMME1/E0, DIMMF1/F0. It is important to note that the notch on the memory module should align with the notch on the DIMM slot. Insert each DIMM module vertically to prevent incorrect installation. Figure 3-6 Figure 3-7 Note: Please use memory modules with the same CAS delay value on this motherboard.
-
Page 27: Server Slide Rail Installation
3.2.4 Server slide rail installation Step 1: Prepare two slide rails and pull out the inner rail Figure 3-8 Step 2: Fasten the inner rails to both sides of the chassis Figure 3-9 Step 3: Install the outer rails on the cabinet brackets and secure the screws ... - Page 28 Step 4: Align the chassis with the outer rail and proceed with the installation Figure 3-11 Note: When pushing the chassis forward, you will hear a snapping sound. When the chassis cannot be pushed further, you need to pull the inner rail buckle downward before you can continue to push the chassis gently.
-
Page 29: Configuration Instructions
4. Configuration Instructions 4.1 Initial Configuration 4.1.1 Power on and start Before powering on, it is necessary to ensure that all configurations of the server are installed in accordance with the corresponding specifications and standards, and keep the server turned off but not unplugged from the power supply. - Page 30 Figure 4-1 PCH state after G3 PCH state setting after G3, the menu options are: S0: Power on and start up directly. S5: You need to press the Power button to turn on the power. leave power state unchanged: Leave the power state unchanged. Default: S0 Log in to the iBMC management interface to perform remote power-on and ...
-
Page 31: Initial Data
Figure 4-2 For detailed usage of BMC and BIOS, please view the corresponding user manual. 4.1.2 Initial data BMC default account: admin BMC default password: Gooxi@123. BMC default address: 192.168.100.1 BIOS Default Password: N/A 4.1.3 Configure BIOS Press the <DEL>... -
Page 32: Configure Bmc
Figure 4-3 The Main interface contains the basic information of the BIOS system, such as the BIOS version number, CPU model, memory capacity, and the system time can be set. For detailed instructions, please refer to the "BIOS User Manual". Navigation key description: ... - Page 33 address is displayed. After the server powers on, pay attention to the POST process. Press the <DEL> or <ESC> key on the keyboard to enter the BIOS Setup interface. Switch to the following interface: Figure 4-4 Configure IPV4 support : BMC sharelink Management Channel ...
- Page 34 BMC IP, subnet mask, MAC address, router IP, and router MAC. BMC Dedicated Management Channel Configuration Address source Configure the BMC IP address allocation mode, the menu options are: Unspecified: No change to BMC parameters Static: BIOS static IP setting DynamicBmcDhcp: BMC runs DHCP to dynamically assign IP DynamicBmcNonDhcp: BMC runs the Non-DHCP protocol to dynamically assign IP...
- Page 35 IPV6 Support Choose whether to support IPV6, the menu options are: Enabeld: support IPV6 Disabled: does not support IPV6 Default: Enabeld When changing from "Unspecified" to other parameters, saving and rebooting will result in the options reverting to the "Unspecified" value. There is no need to configure the BMC IP during every startup process.
- Page 36 Figure 4-6 This page sets the IP address of the BMC management network port.
-
Page 37: Appendix
If the above steps do not resolve the issue, try replacing the monitor with a known working one to confirm if the original monitor is faulty. If the issue persists, please contact Gooxi's customer service department for resolution. Front Panel Indicator Lights Alarm Refer to the instructions in the manual to determine the specific alarm information indicated by the front panel lights and buttons. - Page 38 Set static or dynamic IP and ensure ping connectivity. If the web interface does not open, try using a newer version of Internet Explorer. If the problem is not resolved, please contact Gooxi’s customer service department for further assistance and resolution.
