- Page 1 SL101-G4 Rackmount Server User Manual Document version：01 Release date：2023/07/10 Shenzhen Gooxi Information Security Co., Ltd.
-
Page 2: Statement
Gooxi provides this user manual "as is" and to the extent permitted by law, makes no express or implied warranties or guarantees, including but not limited to merchantability, fitness for a particular purpose, non-infringement of any rights of others, and any warranties or guarantees regarding the use or inability to use this user manual. -
Page 3: Foreword
Foreword This manual is the product technical manual for the Gooxi Eagle Stream platform 1U model servers. It primarily provides an introduction and explanation of the product's appearance, structure, hardware installation, and basic configuration. Please note that this manual is intended for reference and research purposes for professional technical personnel. -
Page 4: Table Of Contents
Contents Statement..............................1 Foreword..............................2 1. Product Introduction ..........................5 1.1 Product Overview ........................5 1.2 Product Structure .........................6 1.3 Logical Structure .........................7 1.4 Product Specifications .........................8 2. Hardware Description ..........................9 2.1 Front Panel ..........................9 2.1.1 Appearance ........................9 2.1.2 Indicator lights and buttons ..................9 2.2 Rear Panel .......................... - Page 5 4.1 Initial Configuration ........................26 4.1.1 Power on and start .......................26 4.1.2 Initial data ........................28 4.1.3 Configure BIOS ......................28 4.1.4 Configure BMC ......................29 5. Appendix ............................. 34 6. Scrap Recycling ...........................36...
-
Page 6: Product Introduction

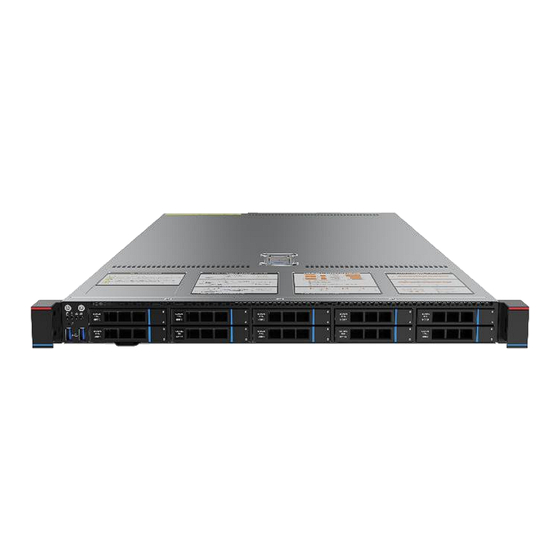

1.1 Product Overview SL101-G4 Series 1U Dual-socket Rack-Mount Server is a new generation of versatile 1U dual-socket rack-mount servers launched by Gooxi to meet the needs of the Internet, IDC (Internet Data Center), cloud computing, enterprise markets, and telecom business applications. It is suitable for core IT operations, cloud computing virtualization, high-performance computing, distributed storage, large-scale data processing, enterprise or telecom business applications, and other complex workloads. -
Page 7: Product Structure
Rear view 1-2 1.2 Product Structure Eagle Stream 1U Dual-Socket Rack-Mount Server Exploded View Structure diagram 1-3 Name Name Hard Drive Full-Height PCIe Expansion Module Hard Drive Bracket Module Power Module Air Guide Module OCP 3.0 LED Board BMC Card Fan Module UID Board Rear Top Cover... -
Page 8: Logical Structure
1.3 Logical Structure The logic of the SL101-G4 Series Dual-Socket Rack-Mount Server is as shown in the following diagram: Motherboard logic block diagram 1-4 The CPU adopts the 4th/5th generation Intel Xeon Scalable processor, LGA4677 socket. Each CPU supports 8 channels, and each channel supports 2 DDR5 ... -
Page 9: Product Specifications
1.4 Product Specifications Product Series SL101-G4 Form Factor 799x433.4x43.6mm (depth*width*height) System Size Supports 1 or 2 4th/5th generation Intel® Xeon® Scalable processors Processor Memory 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800 MHz Internal Storage 3 MiniSAS HD interfaces, 2 SATA M.2 interfaces (22110/2280 specifications) -
Page 10: Hardware Description
2. Hardware Description 2.1 Front Panel 2.1.1 Appearance 10x2.5-inch hard drive configuration Figure 2-1 Name Name Switch Panel Left mounting ear 2.5-inch hard drive Right mounting ear Table 2-1 2.1.2 Indicator lights and buttons Figure 2-2 Indicator/Button Indicator/Button Power switch System alarm indicator button/indicator UID button/indicator... - Page 11 LED status description Indicator Logo Status description light/button Gooxi logo Description of the power indicator light: Green (steady on): Indicates that the device has been powered on normally. Green (blinking): Indicates that the device is in standby. Green off: Indicates that the device is not powered on.
-
Page 12: Rear Panel
2.2 Rear Panel 2.2.1 Appearance Appearance of the rear panel Figure 2-3 Name Name Riser 1 module Riser 2 module Riser 3 module Power module 1 Power module 2 OCP1 network card slot BMC Management Module OCP2 network card slot Table 2-3 2.2.2 Indicator lights and buttons Rear Panel Indicators... -
Page 13: Interface
When configuring with 1 processor, it should be installed in CPU 0 position. Processors installed in the same server must have the same model. For specific optional system configurations, please consult Gooxi sales. Processor positions are as shown in the following diagram: ... -
Page 14: Memory
Figure 2-6 2.4 Memory 2.4.1 Memory slot location This motherboard adopts the Intel Eagle Stream platform. Each CPU supports 8 channels, and each channel supports 2 DDR5 memories. The motherboard can support 32 DIMM DDR5 memories. When inserting only one memory, prioritize A0, B0, C0, D0, E0, F0, G0, H0 (memory slots with blue plastic color). -
Page 15: Storage
The server can install up to 32 DDR5 memories and supports DDR5 RDIMM server memory. The memory frequency supports 4400/4800MHz. The memory installation principles must be followed when configuring the memory (CPU1 is the same as CPU0). Figure 2-8 Note： 1. -
Page 16: Hard Drive Status Indicator
For power modules configured in the same server, the power module models must be identical; For specific optional system accessories, please consult Gooxi sales. The power supply positions are as shown in the following diagram: Figure 2-11... -
Page 17: Fans
2.7 Fans Supports 7 fan modules; Supports hot-swapping; Supports single fan failure; Supports variable fan speed; For fan modules configured in the same server, the fan module models must be identical. The fan positions are as shown in the following diagram: ... -
Page 18: Pcie Slot Description
2.8.2 PCIe slot description When CPU1 is not in place, its corresponding PCIe slot is unavailable. Subordinate PCIe slot PCIe standard Bus bandwidth Slot size OCP1 CPU0 PCIe 5.0 OCP2 CPU1 PCIe 5.0 Full-Height Slot 0 CPU0 PCIe 5.0 Half-Length Half-Height Slot 1 CPU1... -
Page 19: Pcba
Figure 2-15 2.9 PCBA 2.9.1 Motherboard Motherboard Figure 2-16 Name Name CPU0 DDR5 Memory Channels 1,2,3,4 CPU0 DIMMA1/A0/B1/B0/C1/C0/D1/D0 connectors... - Page 20 CPU0 DDR5 Memory Channels 8,7,6,5 CPU0 DIMMH0/H1/G0/G1/F0/F1/E0/E1 connectors CPU1 DDR5 Memory Channels 1,2,3,4 CPU1 DIMMA1/A0/B1/B0/C1/C0/D1/D0 connectors CPU1 DDR5 Memory Channels 8,7,6,5 CPU1 DIMMH0/H1/G0/G1/F0/F1/E0/E1 connectors 2 hard drive backplane I2C connectors, 2 MCIO I2C MCIO x8 connectors(CPU1) × 4 connectors Three 2*6Pin hard drive MCIO x8 connectors(CPU0) ×...
-
Page 21: Hard Drive Backplane
2.9.2 Hard drive backplane 10×2.5-inch Backplane TOP surface Figure 2-17 Description Function Supports PCIe×4 and SAS/SATA U.2 SFF-8639 U.2 hard drive interface, used to connect connector HDD/SSD/NVME Table 2-11 Bottom surface Figure 2-18 Description Function provides PCIe x8 interface for 1、2、3、4、5 MCIO connector connecting CPU and NVMe SSD... -
Page 22: Installation Instructions
3. Installation Instructions 3.1 Chassis Top Cover Installation Step 1: Lift the slot at the opening position, push and lift it in the direction indicated by the diagram. Figure 3-1 3.2 Installation of Accessories 3.2.1 CPU installation Step 1: Align the triangular mark on the CPU with the handle on the bracket as ... -
Page 23: Heatsink Installation
3.2.2 Heatsink installation Step 1: Remove the protective cover on the motherboard CPU socket. Step 2: Install the CPU and heatsink onto the CPU socket. (As shown in the diagram below) Figure 3-3 Step 3: Press down on the four corners of the heatsink's fixing lock towards ... -
Page 24: Memory Installation
Caution: The pins on the motherboard are extremely fragile and can be easily damaged. To prevent damage to the motherboard, do not touch the processor or the contact points on the processor socket. 3.2.3 Memory installation The 16 memory slots controlled by CPU0 on the motherboard are as follows: CPU0 DIMMB0/B1,DIMMA0/A1, DIMMD0/D1, DIMMC0/C1, DIMMG1/G0, DIMMH1/H0, DIMME1/E0, DIMMF1/F0. - Page 25 Figure 3-7 Step 2: Fasten the inner rails to the sides of the chassis. Figure 3-8 Step 3: Install the outer rails on the cabinet brackets and secure the screws. Figure 3-9 Note: When installing the guide rail, align it with the U-mark, and push it into place until you hear a click sound.
- Page 26 Step 4: Align the chassis with the inner rails installed with the outer rails for installation. Figure 3-10 Note: When you push the chassis forward, you will hear a snapping sound. If you can’t push it, you need to pull down the buckle of the inner rail to continue to push the chassis gently.
-
Page 27: Configuration Instructions
4. Configuration Instructions 4.1 Initial Configuration 4.1.1 Power on and start Before powering on, it is necessary to ensure that all configurations of the server are installed in accordance with the corresponding specifications and standards, and keep the server turned off but not unplugged from the power supply. - Page 28 Figure 4-1 PCH state after G3 PCH state setting after G3, the menu options are: S0: Power on and start up directly S5: You need to press the Power button to turn on the power leave power state unchanged: Leave the power state unchanged . Default: S0 Log in to the iBMC management interface to perform remote power-on and ...
-
Page 29: Initial Data
Figure 4-2 For detailed usage of BMC and BIOS, please refer to the corresponding user manual. 4.1.2 Initial data BMC default account: admin BMC default password: Gooxi@123. BMC default address: 192.168.100.1 BIOS Default Password: N/A 4.1.3 Configure BIOS Press the <DEL>... -
Page 30: Configure Bmc
Figure 4-3 The Main interface contains the basic information of the BIOS system, such as the BIOS version number, CPU model, memory capacity, and the system time can be set. For detailed instructions, please refer to the "BIOS User Manual". Navigation key description: ... - Page 31 After the server is powered on, turn it on. Pay attention to the POST process when starting the server. In the lower left corner of the logo screen, the IP address is displayed. After the server powers on, pay attention to the POST process. Press the ...
- Page 32 When the "Configuration Address Source" option is set to "Unspecified," it will display the network parameters (IPv4) for the system's shared Ethernet port. The displayed information includes the current IP configuration method, BMC IP, subnet mask, MAC address, router IP, and router MAC. BMC Dedicated Management Channel ...
- Page 33 will display the network parameters (IPv6) for the system's shared Ethernet port. BMC Dedicated Management Channel IPV6 Support Choose whether to support IPV6, the menu options are: Enabeld: support IPV6 Disabled: does not support IPV6 Default: Enabeld When changing from "Unspecified"...
- Page 34 Figure 4-6 This page sets the IP address of the BMC management network port.
-
Page 35: Appendix
If the above steps do not resolve the issue, try replacing the monitor with a known working one to confirm if the original monitor is faulty. If the issue persists, please contact Gooxi's customer service department for resolution. Front Panel Indicator Lights Alarm Refer to the instructions in the manual to determine the specific alarm information indicated by the front panel lights and buttons. - Page 36 Set static or dynamic IP and ensure ping connectivity. If the web interface does not open, try using a newer version of Internet Explorer. If the problem is not resolved, please contact Gooxi’s customer service department for further assistance and resolution.
-
Page 37: Scrap Recycling
6. Scrap Recycling For environmental protection and resource reuse, we earnestly ask you to properly handle discarded server products. Before discarding the server, we recommend that you completely demagnetize the storage media, clear data, and physically destroy them to ensure that your personal data is not leaked.
