2.1.3 Interface

Interface location

No.
1
Interface description

Name
VGA
interface
USB
interface

2.2 Rear Panel

2.2.1 Appearance

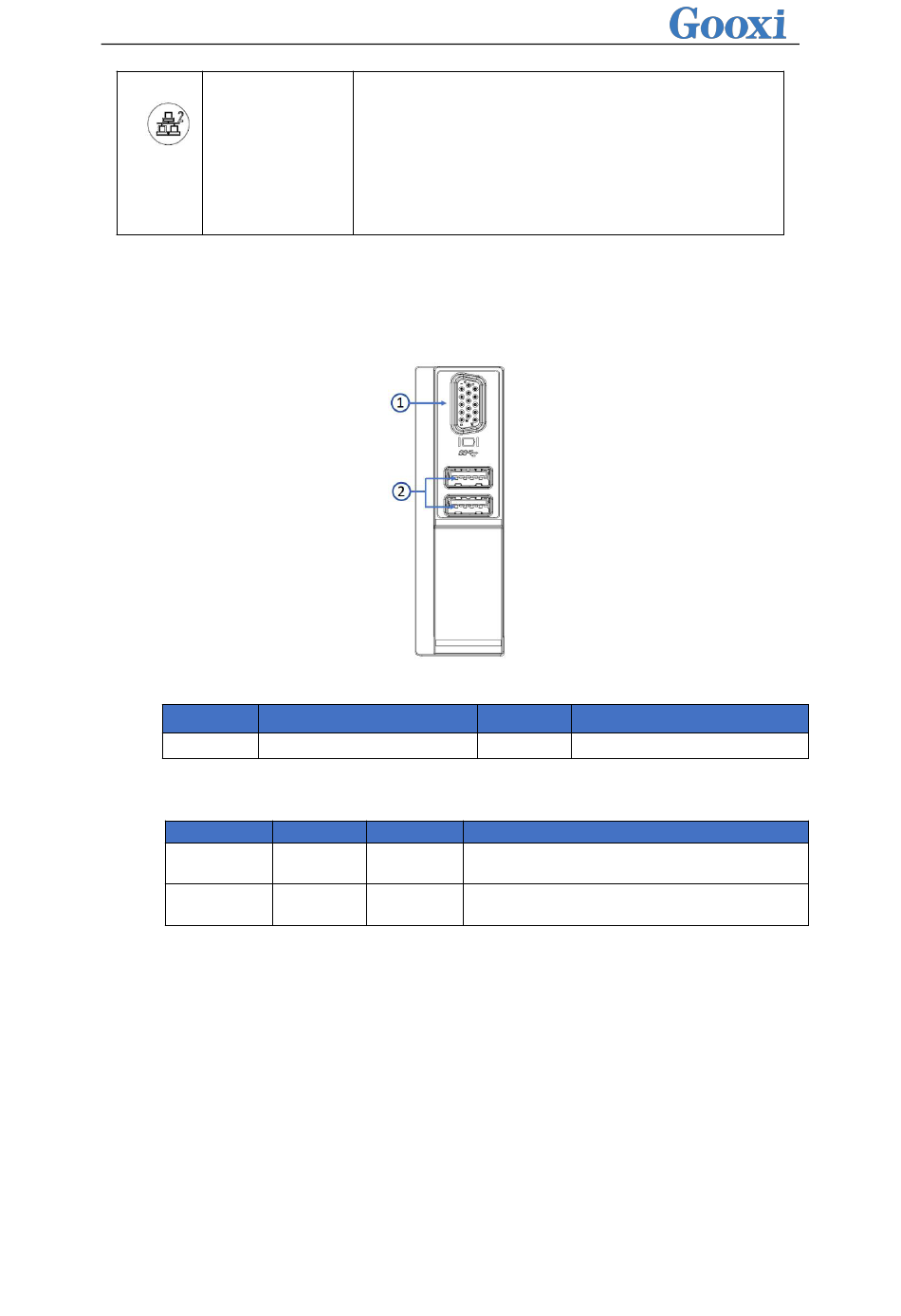

Appearance of the rear panel

Corresponding to the OCP2 network card connection
status indicator light.
network Green (steady on): Indicates that the OCP2 network
presence card is in place.
indicator Off: Indicates that the OCP network card is not
installed or is malfunctioning.
Note: This corresponds to the two OCP network cards
on the motherboard.
Table 2-2
Figure 2-3
Name
VGA interface
Table 2-3
Type Quantity
DB15 1
USB 3.1 2
Table 2-4
11
No.
2 USB 3.1 interface
Description
Used for connecting display terminals,
such as monitors or KVM
For accessing USB devices
Name
