Make sure the receiver is switched off.

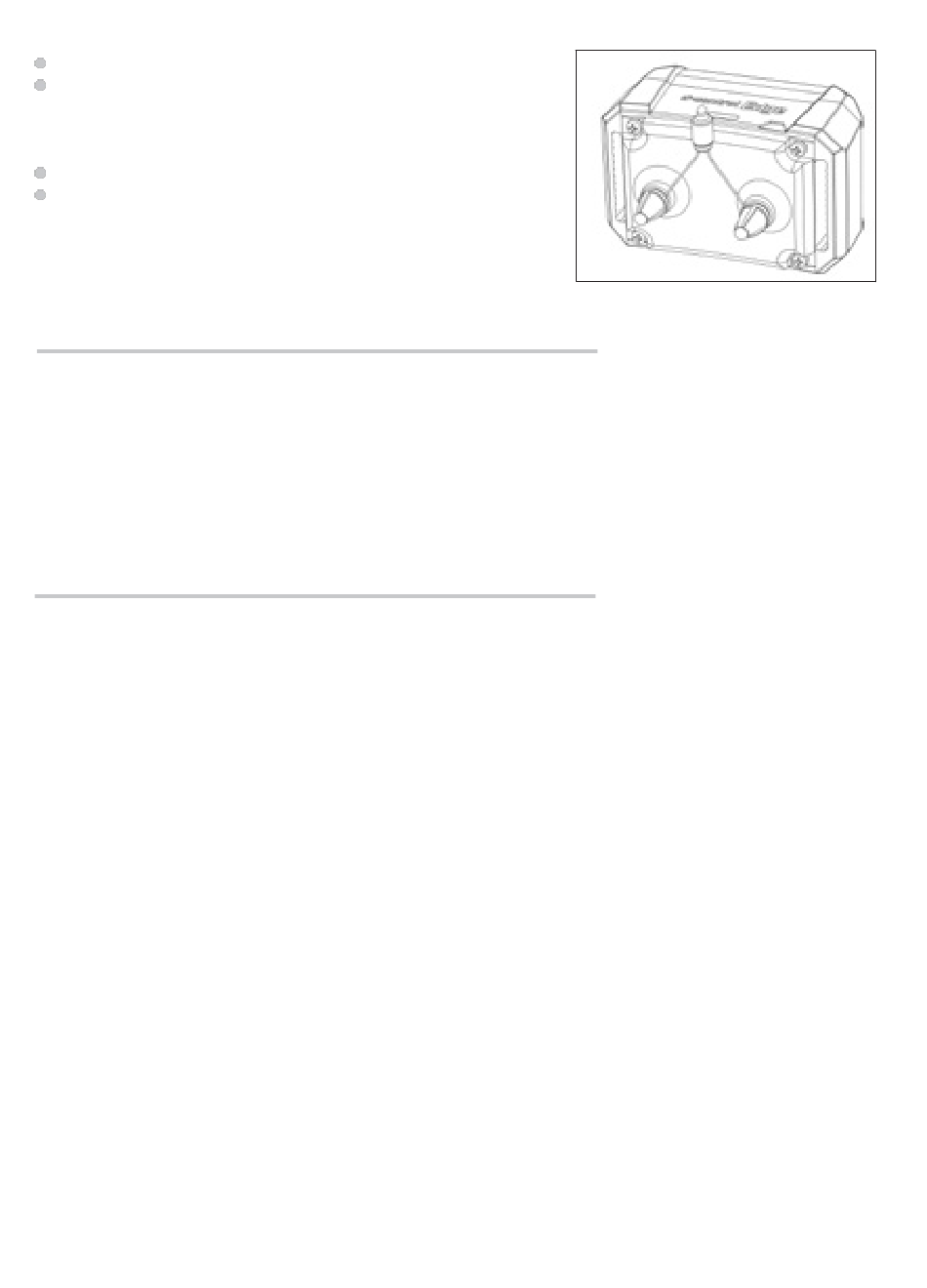

Connect the test gag pins to both contact points - loosen
the contact points, insert the gag pins underneath them
so that they hold firmly and tighten the contact points
again (see picture).
Switch on the transmitter and receiver.
Press the button for the stimulation pulse. As the level
of the stimulation pulse increases, the test glow of
the test glove will increase.
6. If the problem persists, contact your dealer.

12. MAINTENANCE

Never use chemical cleaners, solvents or volatile substances (thinner, petrol or other
cleaners) to clean your d-control. Use a soft, damp cloth and, if necessary,
detergent.
The receiver (collar) is waterproof only if the seal is in good condition. To maintain
watertightness, we recommend replacing the rubber seal under the receiver cap once a year.
Also make sure to clean and adjust the seal properly after each battery change in the receiver
and to tighten the screws properly. However, only tighten them with reasonable force!
If you do not use the training kit for an extended period of time, remove the batteries from the device.

13. TECHNICAL DATA

Transmitter
Reach................................................................................................250 / 450 / 650 m (depending on
model)
Power ................................................................................................................Lithium battery CR2 3V
Battery lifetime..........................................................6 to 12 months (depending on usage and model)
Frequency (power) ..........................................................869.525 MHz (10/32/100 mW - depending on model)
Antenna ...............................................................................................................................integrated
Coverage ..............................................................................................................................Waterproof
Operating temperature.................................................................................................. . -10 °C to +50 °C
Weight..........................................................................................................................73 g (without batteries)
Dimensions.................................................................................................................108 × 50 × 23 mm
Receiver (collar)
Power ................................................................................................................Lithium battery CR2 3V
Battery lifetime ..............................................................................6 months depending on use
Antenna ...............................................................................................................................integrated
Coverage.................................................................................................................................Waterproof
Adjustable belt circumference........................................................................................approx. 20-72 cm
Operating temperature.................................................................................................. . -10 °C to +50 °C
Weight ......................................................................................................53 g (without strap and battery)
Dimensions ...................................................................................................................64 × 40 × 31 mm
Location of the test glove box
a neutral
