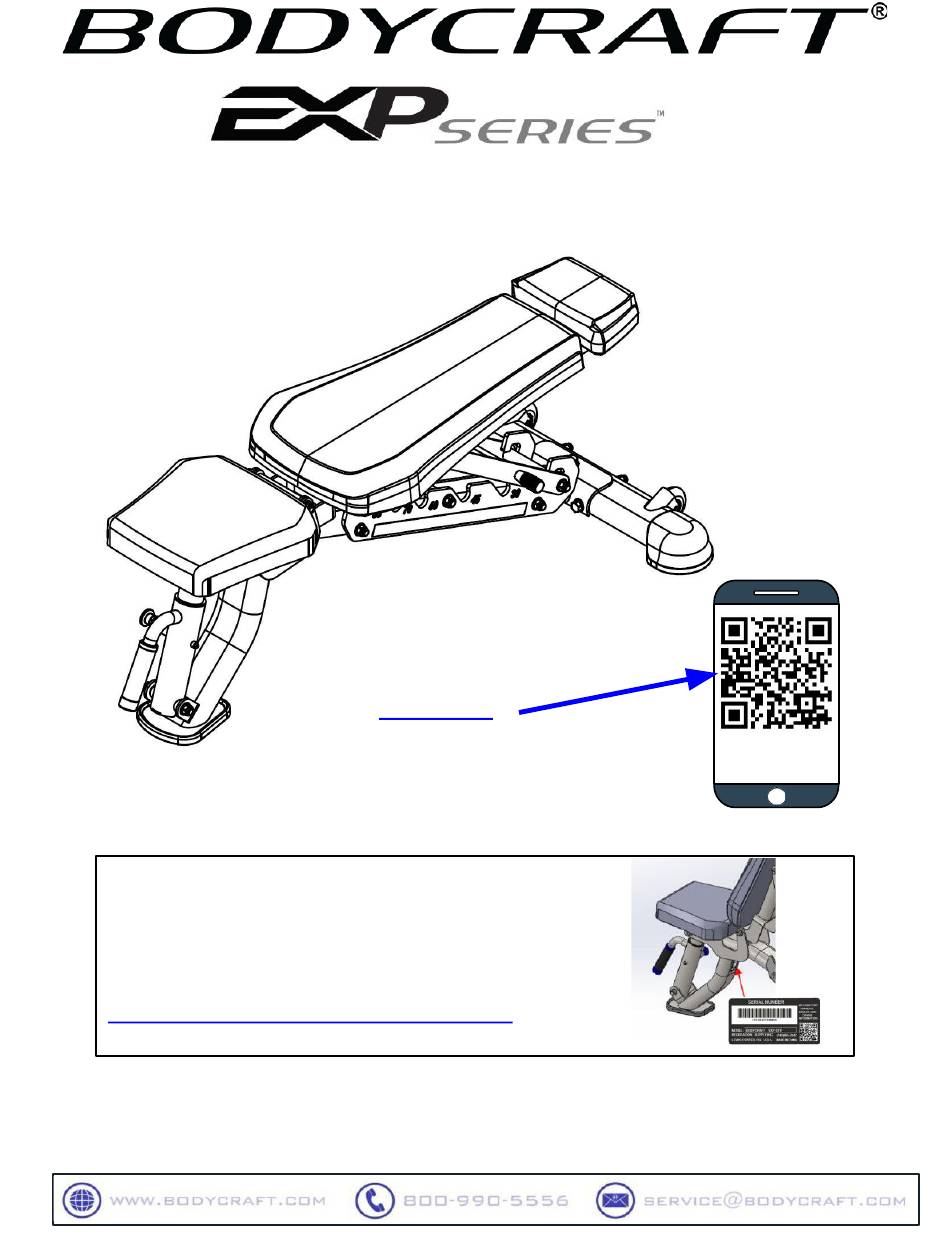

Flat / Incline Bench (EXP-CFI-1)
For the Assembly STEPS in
FULL COLOR
& additional information,
Open your Camera
App and point it at
scan this QR code.
the QR Code
Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Serial Number
Owner's Manual
EXP-CFI-1_OM_v1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BodyCraft EXP Series

  • Page 1 QR code. the QR Code Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at: https://www.bodycraft.com/product-registration/ Serial Number Owner's Manual EXP-CFI-1_OM_v1.2...
  • Page 2 Thank you for selecting BODYCRAFT. Your choice reflects a wise investment in you and your facility. We hope you use it for many healthy years! BODYCRAFT offers a complete array of high-quality fitness equipment. Please refer to our website www.bodycraft.com to view more ways to enhance your lifestyle.
  • Page 3: Table Of Contents

    Table of Contents, CPI-1 NOTE: When you have downloaded the Assembly Manual into a PDF reader, go directly to the desired page by touching any BLUE line in this Table of Contents. Page Product Safety Information Product Safety ……………………………………………………………... Important Notes, Recommended Tools & Cleaners …………………….. Warning Labels &...
  • Page 4: Product Safety

    It is imperative that you retain this Assembly Instructions and be sure all warning labels are legible and intact. Replacement Assembly Instructions and labels are available from BODYCRAFT. If you are unsure about the proper use of the BODYCRAFT strength machine call your local BODYCRAFT dealer or our Customer Service Department. Contact BODYCRAFT at 800-990-5556 or support@bodycraft.com...
  • Page 5: Important Notes, Recommended Tools & Cleaners

    Important Notes, Recommended Tools & Cleaners, EXP-CFI-1 Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list.
  • Page 6: Warning Labels & Serial Number

    Warning Labels, Maintenance Schedule & Serial Number, EXP-CFI-1 Carefully read ALL warning, caution & maintenance schedule labels # CFI-1-056, Warning Label - Pinch Point, Vertical # CFI-1-057, Label - Serial Number # CFI-1-055, Caution Label - # CFI-1-058, Maintenance The Pull-PIN must be fully Schedule Label engaged into the hole before...
  • Page 7: Product Overview Machine Dims & Recommended Training Area

    Machine Dimensions& Recommended Training Area, EXP-CFI-1 Top View CFI-1 Overall Dimensions 51.8” L x 27.8” W x 18.6” H (131.6 cm L x 70.6 cm W x 47.2 cm H) Side View Back View...
  • Page 8: Machine Adjustments

    Machine Adjustments, EXP-CFI-1 Back Adjustment 30° Incline Seat & Back Adjustments 0° Flat Back Adjustment Back Adjustment 45° Incline 60° Incline Back Adjustment Back Adjustment 70° Incline 85° Incline Seat Adjustment Seat Adjustment 20° Incline 15° Incline...
  • Page 9: Assembly Parts & Hardware List W/ Images

    Assembly Parts / Hardware List & Images, EXP-CFI-1 Part # Assembly Parts List CFI-1-001-ASM Frame, Rear Stabilizer - Assembly CFI-1-002-ASM Frame, Main - Assembly CFI-1-003-ASM Frame, Support for Back Pad - Assembly CFI-1-004 Frame, Support for Seat Pad CFI-1-005-ASM Frame, Adjuster for Back Pad - Assembly CFI-1-006-ASM Frame, Adjuster for Seat Pad - Assembly CFI-1-008...
  • Page 10: Product Assembly Pre-Assembly Tips

    Product Assembly - Preassembly Tips PREASSEMBLY TIP #1 – “Stage Right”. During the assembly process we will be stating Right, Left, Front, Back, Top, or Bottom. These all are in the perspective of the user in the machine facing outward with feet on the ground. See below images as examples.
  • Page 11 Product Assembly, EXP-CFI-1 TEP 1: Install Rear Stabilizer Frame to the Main Frame 15 ft-lbs (+/- 2 lbs) Flat Washer 20 ft-lbs (+/- 2 lbs) 20 ft-lbs (+/- 2 lbs) Recommended Tools: Part # Assembly & Hardware Parts List CFI-1-001-ASM Frame, Rear Stabilizer - Assembly CFI-1-002-ASM Frame, Main - Assembly...
  • Page 12 Product Assembly, EXP-CFI-1 TEP 2: Install the Support Frames for the Seat & Back Pads Nylon Washers TIP: Fully tighten the BOLT (31), then loosen its locking NUT (51) approximately 1/4 turn so that SEAT SUPPORT & the BACK SUPPORT pivot freely, without excessive movement.
  • Page 13 Product Assembly, EXP-CFI-1 TEP 3: Install the Seat Pad Recommended Tools: 12.5 ft-lbs (+/- 1 lbs) TORQUE WRENCH w/ 7/32 ALLEN SOCKET Fully tighten at this time to the Recommended Torque Specs Part # Assembly & Hardware Parts List CFI-1-009 Pad, Seat Bolt, Flat Head Countersunk w/ Hex CFI-1-038...
  • Page 14 Product Assembly, EXP-CFI-1 TEP 5: Install the Back & Headrest Pads Recommended Tools: TORQUE WRENCH w/ 9/16 SOCKET Fully tighten at this time to the Recommended Torque Specs Part # Assembly & Hardware Parts List CFI-1-008 Pad, Back 12.5 ft-lbs CFI-1-010 Pad, Headrest (+/- 1 lbs)
  • Page 15: Step 1 - Step

    Product Assembly, Final Assembly Clean up, Lube & Polish STEP 7a: Remove any & all Assembly Stickers, i.e. Part Numbers & Right / Left Circles ● Easy to remove with fingernail or plastic scraper ● If adhesive residue is on frame: ○...
  • Page 16: Routine Schedule

    Product Assembly, Routine Schedule COMMERCIAL HOME...
  • Page 17: Detailed Parts Exploded View

    Flat / Incline Bench (EXP-CFI-1) CPI-1_EV v1.2a...
  • Page 18: Detailed Parts List

    Detailed Parts List & Images, EXP-CFI-1 1 of 2 Part # Detailed Parts List CFI-1-001 Frame, Rear Stabilizer CFI-1-002 Frame, Main CFI-1-003 Frame, Support for Back Pad CFI-1-004 Frame, Support for Seat Pad CFI-1-005 Frame, Adjuster for Back Pad CFI-1-006 Frame, Adjuster for Seat Pad CFI-1-007 Regulating Tube...
  • Page 19 Detailed Parts List & Images, EXP-CFI-1 2 of 2 Part # Detailed Parts List CFI-1-028 Washer, Nylon Φ32 x Φ13 x δ1.6 - BLK CFI-1-029 Bolt, Hex Head, 3/8" x 3-1/4" L - BLK CFI-1-030 Bolt, Hex Head, 1/2" x 5" L - BLK CFI-1-031 Bolt, Hex Head, 1/2"...
  • Page 20: Required Info Before Initiating A Service Case

    Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue?
  • Page 21: Product Warranty

    If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required.
  • Page 22: Product Warranty Registration

    The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to BODYCRAFT within 30 days from the date of equipment installation.
