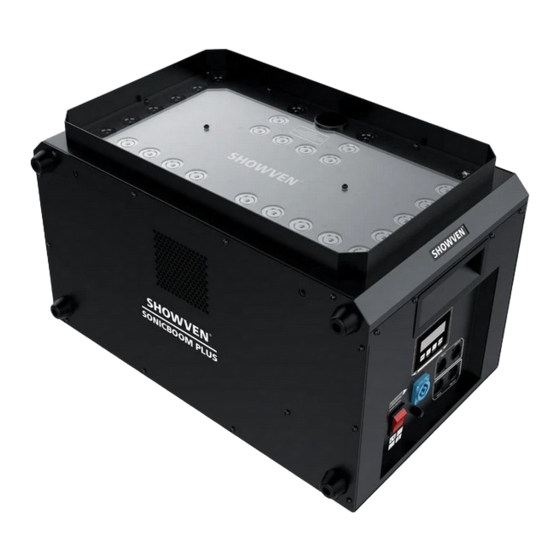

- Page 1 USER MANUAL SONICBOOM ® PLUS SMOKEJET V3.0 2022/05/11 Showven Technologies Co., Ltd.
- Page 3 If the machine fails to work, please stop operation and unplug the machine. Check fog fluid, ® fuse, power connection etc. carefully, if can’t solve the problem, please contact SHOWVEN ® or your local SHOWVEN partner for advise.
- Page 4 MAX CONTINUOUS OUTPUT DURATION: 10s OUTPUT: 80000cuft/min FLUID CONSUMPTION RATE: 3min/L TANK CAPACITY: 5L DMX CHANNEL: 1/11/14 CONSUMABLES: FX-S Structure Δ Handle Fluid Bottle Foot Output Nozzle LCD Screen 3-PIN DMX 5-PIN DMX Power Socket 10. Fuse 11. Power Switch 12.
- Page 5 Operation Panel Δ 1. Control button area MENU: Short press to switch interface, press and hold for 3 seconds can switch to the advanced setup interface Parameters up; multiplex “TIMER” (smoke output time) Parameters down; multiplex “VOLUME” (smoke output start) ENTER Confirm and save parameters, screen will blink once when save successfully.
- Page 6 working and report E1. After machine report E1 please check the fluid bottle and fill it. There are three way to clear the error information. 1. Fill the fog fluid tank, restart the machine. 2. Press “VOLUME” to reset. 3. Firing the machine 3.
- Page 7 81-100 FOG ON – BLUE 101-120 FOG ON - PINK 121-140 FOG ON – PURPLE 141-160 FOG ON – ORANGE 161-180 FOG ON – YELLOW 181-200 FOG ON – SKY BLUE 201-220 FOG ON – WHITE 221-235 FOG ON - RANDOM 236-255 FOG ON –...
- Page 8 Fill the fluid bottle with fast dissipate fog fluid. Please not exceed the maximum fuel level when filling. ® For best effect please use SHOWVEN original fluid FX-S. Improper use of fluid will lead to machine malfunction. Warranty will be void if any other type of fog fluid is used.
- Page 9 Fluid spill because heat can’t effectively transmit to fog fluid, leads to insufficient atomization of the fog fluid in the heating pipe. Possible Reasons: ® Use low quality fog fluid instead of SHOWVEN original fog fluid. Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature is different.
- Page 10 Please don't repair machine without factory permission Below situations NOT included in warranty service: ® ® Damage caused by use other type of fog fluid which is not from SHOWVEN or SHOWVEN authorized distributor. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
