SSV Works X32-PHZ2A Manual page 11

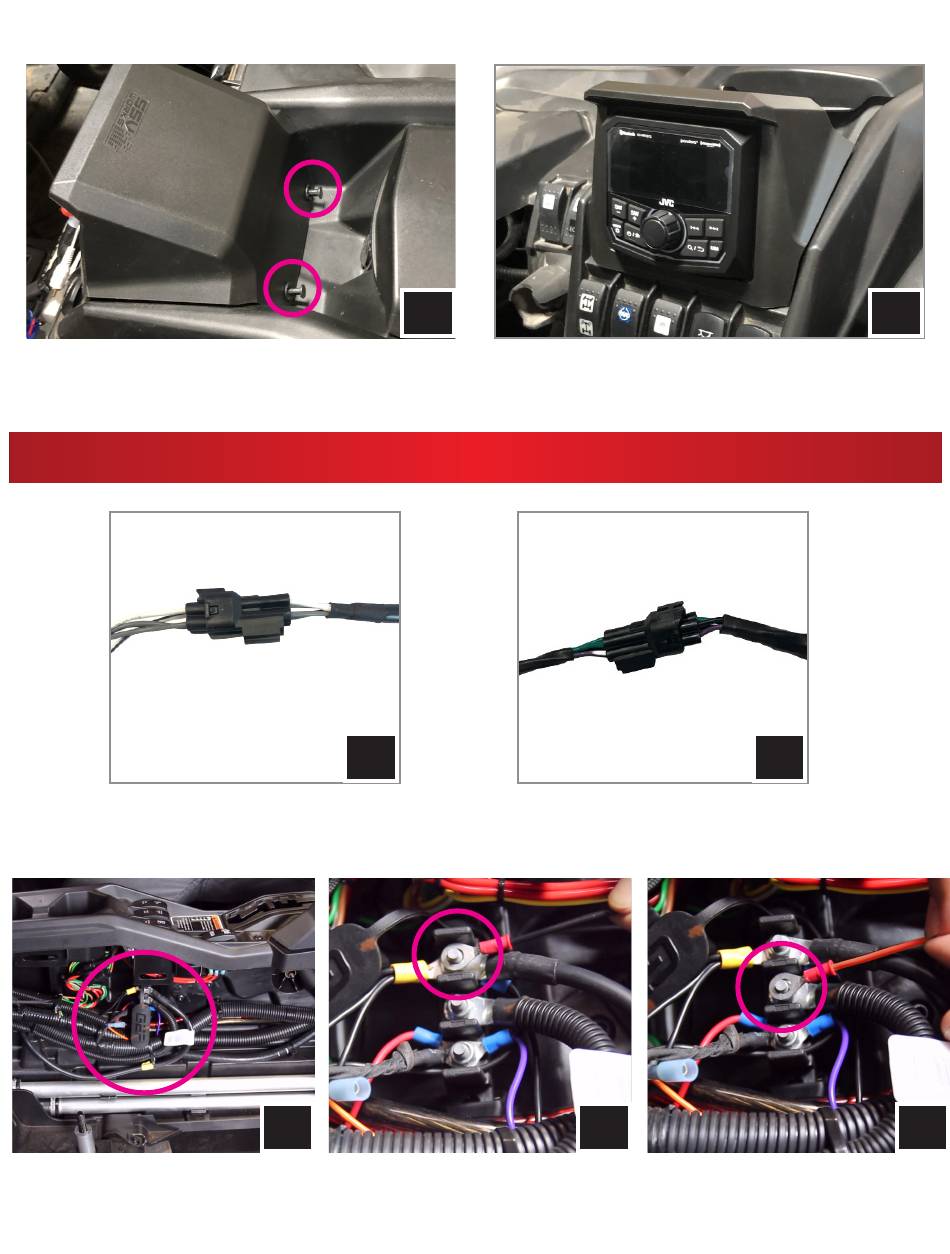

L. Secure the backside of the DMR1 with (2) push pins.
JVC MR1 WIRING CONNECTION
A. Connect the front (white/gray) output from
the MR1 power harness to the B-H1909 front
speaker harness.
C. Connect the MR1 power and ground wires to the power strip located on the passenger side of the center console.
L
A
C
M. Center the trim ring on the MR1 and firmly press down until the side
and corners click into place.
B. Connect the rear (green/purple) output from
the MR1 power harness to the B-H1913 and
B-H1912 rear speaker extension harness.
C
M
B
C
