ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:
parts@staminaproducts.com

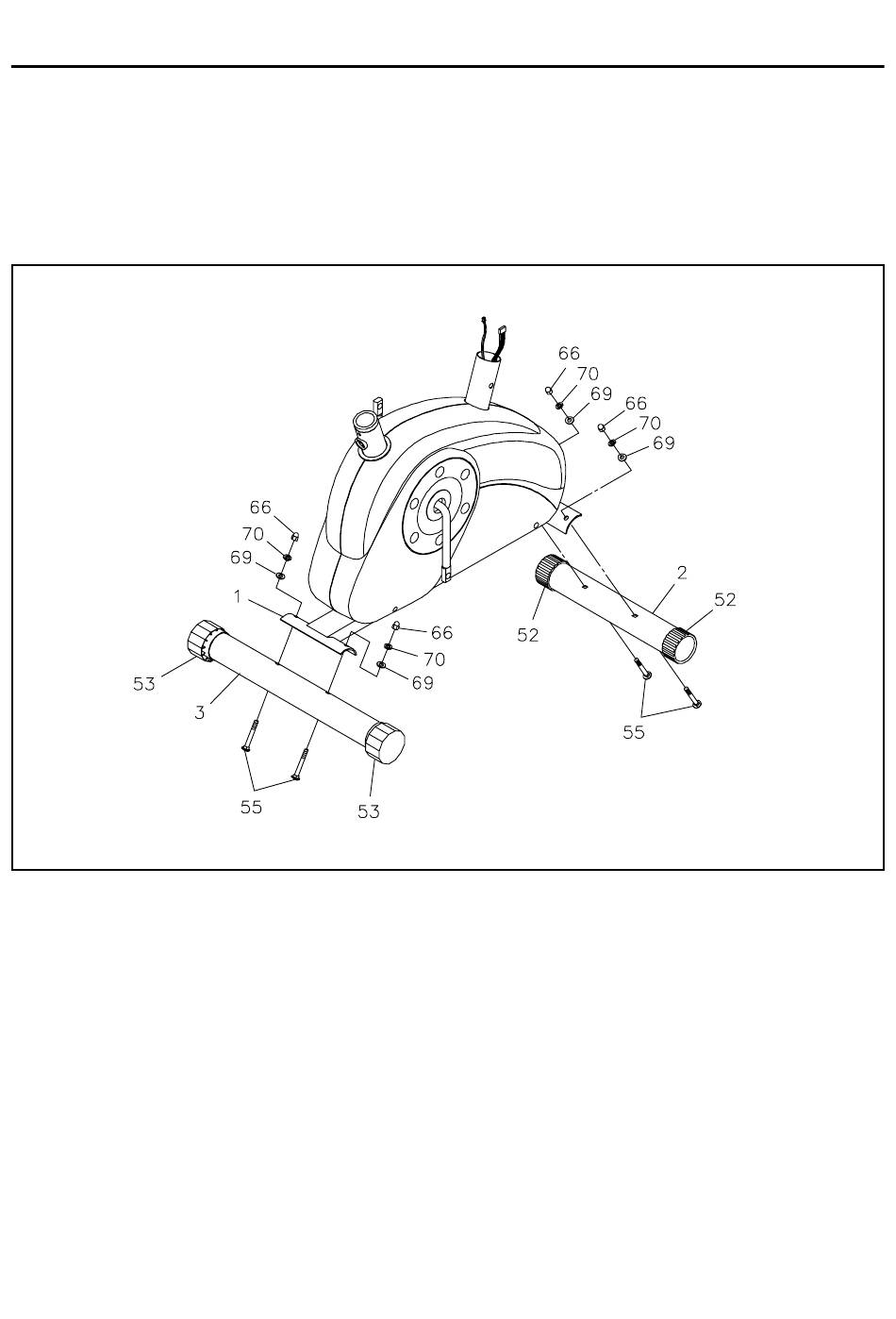

STEP 1
FRONT STABILIZER(2),
WHEEL CAPS(52),
Attach the
the short one that with the
onto the front of the
MAIN FRAME(1)
CARRIAGE BOLTS(M8 x 75mm)(55), ARC WASHERS(M8)(69), LOCK
with
WASHERS(M8)(70),
ACORN NUTS(M8)(66).
and
STEP 2
REAR STABILIZER(3),
LEVELING CAPS(53),
MAIN FRAME(1)
Attach the
the one with the
onto the
CARRIAGE BOLTS(M8 x 75mm)(55), ARC WASHERS(M8)(69), LOCK WASHERS(M8)(70),
with
ACORN NUTS(M8)(66).
and
NOTE: You can adjust the
LEVELING CAPS(53)
REAR STABILIZER(3)
on the
to keep the Bike
stable.
