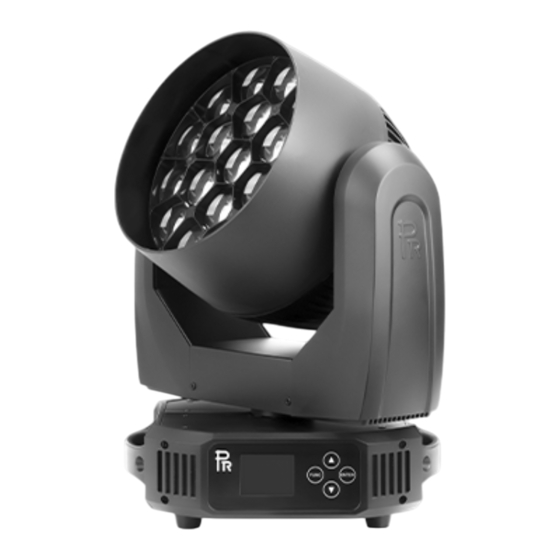

XLED 4019
PR-8124
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XLED 4019 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XLED 4019

Summary of Contents for PR Lighting XLED 4019

  • Page 1 XLED 4019 PR-8124 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.

  • Page 2: Safety And Warnings

    Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.
  • Page 3 NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles User Electrical Protective High Warning Flames Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. Should there be any damage ●...
  • Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure a projector is disconnected from power ●...

  • Page 5: Installation

    TROUBLESHOOTING ● PROBLEM ACTION Check if the fuse is burned  Check if the power cord is connected well  Check if the switching power supply is bad or not connected well. A  Aprojector can’t be switched on professional technician is required for the repair Check if the control board is connected well.
  • Page 6 Warning: Safety cord For safety, please run the safety cord through the hole and lock it well. Clamp Safety cord Safety cord Hole Hole Take 2 clamps and 1 the safety cord out from the package and mount 2 clamp on the BOTTOM of fixture with 4 retainers attached to the clamp.
  • Page 7 DMX CONTROLCONNECTION ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.

  • Page 8: Setup And Configuration

    5. SETUPAND CONFIGURATION FRONT PANELOPERATION ● Fixture’s address and function code configuration can be set conveniently via Touch Key and LCD display. Press button ENTER more than 3 seconds to unlock panel. LED display shows the fixture’s function menu. Each Option of the main menu has its own sub-menu.

  • Page 9: Operation Menu

    be set accordingly. After Powered on, the group will run in Master/Slave Mode 6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-503(Short mode) 1-495 (Standard mode) DMX Address 1-493(Extended mode ) Default IPAddress 2.X.X.X /10.X.X.X IP Address Custom IPAddress X.X.X.X...
  • Page 10 sACN In/XLR Out Loss of DMX Hold Last Value Custom User Memory 1 OffAfter Delay Display Mode OnAlways Invert OFF Invert ON Display Invert Display Config InvertAuto English Language Setting Chinese Touch Calibration Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Confirm/Cancel Factory Defaults...

  • Page 11: Dmx Protocol

    Boot =XXX Electronic SN Electronic SN=XXX PR-8124 RDM Device Label ANSI E1.20 RDM LED Fan F1 Fan Status Power Fan F2 Basic Fan F3 Strobe XXX Dimmer XXX Manual Effect Control Service … … Factory Test Change Operation Mode? Confirm/Cancel DMX Mode Preset Memory Change Operation Mode?
  • Page 12 Dimmer Fine 000-255 Linear dimmer(0-100%) in 16 bit 000-001 002-255 Linear CTO（1800 – 10000K） 000-007 008-009 Color Temperature 2700K 010-011 Color Temperature 3000K 012-013 Color Temperature 3500K 014-015 Color Temperature 4000K 016-017 Color Temperature 4500K 018-019 Color Temperature 5000K 020-021 Color Temperature 5700K 022-023 Color Macro1...
  • Page 13 088-089 LEE 100 (Spring Yellow) 090-091 LEE 101 (Yellow) 092-093 LEE 102 (Light Amber) 094-095 LEE 103 (Straw) 096-097 Lee 104 (DeepAmber) 098-099 LEE 105 (Orange) 100-101 LEE 106 (Primary Red) 102-103 LEE 111 (Dark Pink) 104-105 LEE 115 (Peacock Blue) 106-107 LEE 116 (Medium Blue-Green) 108-109...
  • Page 14 176-177 LEE 204 (Full C.T. Orange) 178-179 LEE 205 (Half C.T. Orange) 180-181 LEE 206 (Quarter C.T. Orange) 182-183 LEE 247 (LEE Minus Green) 184-185 LEE 248 (Half Minus Green) 186-187 LEE 281 (Three Quarter C.T. Blue) 188-189 LEE 285 (Three Quarter C.T. Orange) 190-191 LEE 352 (Glacier Blue) 192-193...
  • Page 15 8. SIGNS OF THE TOUCH SCREEN Config Settings Option Settings Chinese/English Information Service Error Messages Operation Mode Address Reset User Memories 9. TECHNICALDATA ELECTRIC PARAMETERS Rate voltage :100V~240VAC，50/60Hz Rate power :800W @ 220VAC Current at maximum : 3.6A @ 220VAC Power factor : PF>0.9 THE SPECIFICATIONS OFTHE LIGHT SOURCE Brand:...
  • Page 16 STROBE Electronic strobe，0.3-25 F.P.S. , with built-in pulse strobe LENSANGLE BeamAngle(1/2 peak) θ : 4 °~40° 1/10 Peak) θ : 7°~60° FieldAngle( 1/10 CONTROL International Standard DMX512 signal, 5 pin DMX512 interfaces RDM protocol 10 channels in short mode,18channels in standard mode, and 20 channels in extended mode Master/slave synchronized mode Stand-alone mode, Preset mode, mode...

  • Page 17: Light Output

    LIGHT OUTPUT Beam angle File angle...

  • Page 18: Circuit Diagram

    10. CIRCUIT DIAGRAM...

  • Page 19: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 030040174A PANAND TILT MOTORS 030040309 ZOOM MOTOR 030060122 POWER SUPPLY FAN 030060118 BASE FAN 030060130 HEAD FAN 192010240 SWITCHING POWER SUPPLY...
  • Page 20 PR LIGHTING LTD. 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320021583 Version:20240221...

This manual is also suitable for:

Pr-8124
