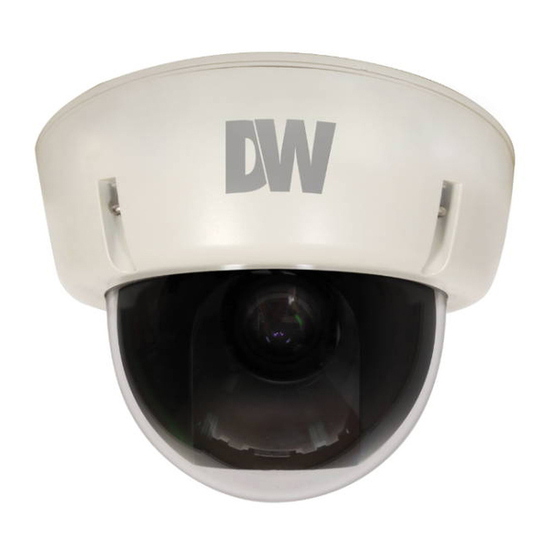

- Page 1 Starlight MPA Vandal Dome Camera DWC-V5661T DWC-V5661TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 07212014...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Surface Mount Installation Accessories Installation 9-12 Connecting to Monitors Control Board Adjus ing the Camera Lens Adjus ing the Camera Gimbal Module OSD Menu 17-29 Troubleshooting Warranty Information 31-32 Specifications 33-34... -
Page 4: Features
FEATURES* 1/3" Sony 1.3M CMOS 820 TV Lines [B/W], 800 TV Lines [Color] 2.8~12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync, Smart IR [DWC-V5661TIR] True Day & Night with IR Cut Filter 3D DNR (3D Digital Noise Reduction) WDR (Wide Dynamic Range) Star-Light (Super Low Light Technology) HME (Highlight Masking Exposure) - Page 5 PARTS & DESCRIPTION* Bottom Case BNC Cable Camera Gimbal DC12V Cable Upper Case UTP Cable Dome Cover RS485 Cable Cover Screws (x4) Alarm Output Cable Side Port for Cabling...
-
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (IN)* 144.0 5.7 145.0 5.7... -
Page 7: Inside The Box
INSIDE THE BOX* Included with Camera: User Manual Secondary Video-BNC Cable Moun ing Template L-Key 4 Machine Screws and 4 Dry Wall Anchors DC Plug Power Cable Star ight MPA Vandal Dome Camera DWC-V566 T DWC-V566 T R AB U MA... -
Page 8: Surface Mount Installation
SURFACE MOUNT INSTALLATION INSTRUCTIONS* 1. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. 2. Pull wires through and make connections. 3. Using the four (4) included screws, mount and secure the camera to the wall or ceiling. - Page 9 JUNCTION BOX INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the dry wall anchors and Insert wires through he the box. machine screws to mount the wall and make the junc ion box and rubber appropriate connec ions. gasket to the wall.
- Page 10 WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Insert the wires from he Attach the camera to the box. camera through the wall he wall mount housing. mount housing. Use the mounting template to Attach he camera housing make pilot holes.
- Page 11 PENDANT MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Attach he top shield to the Slide the wires from the the box. pendant mount. camera through the pendant mount. Attach the camera to the Attach he camera housing to Use the moun ing template to pendant mount using the the fixture.
- Page 12 CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount to the corner bracket Attach the assembly to a wall corner with dry with the 4 machine screws. wall anchors and machine screws.
-
Page 13: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC CCTV Monitor Left Right Second Video Output Down Monitor Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration. -
Page 14: Control Board
CONTROL BOARD* Secondary Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. Remove the camera’s cover dome to access the OSD joystick controller. Use he Joys ick to control he camera’s OSD options. -
Page 15: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom Wide Tele Non IR Focus Near To adjust the field of view, use the L-Key to turn he zoom screw (located on he bottom of he camera) counter-clockwise to zoom in, or clockwise to zoom out. -
Page 16: Camera Gimbal
ADJUSTING THE CAMERA GIMBAL* Non IR Non R Rotation 360º Panning 360º Non IR Tilting 70º IR LED Tilting 90º... -
Page 17: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE SHARPNESS MANUAL / DC ATW / AWB / PUSH / AUTO / COLOR / B&W 0 ~ 10 BACKLIGHT CONTROL GAMMA MANUAL OFF / HME / BLC / WDR AUTO / EXT. - Page 18 EXPOSURE LENS Manual mode supports the fixed board lens or the manual Manual iris lens. DC mode supports the auto-iris varifocal lens. NOTE: Bo h MANUAL and DC mode have FOCUS ADJ. You can adjust the focus by finding he highest number on the FOCUS SET. DC Lens Submenu MANUAL Lens Submenu Mode: MANUAL: Set the lens mode to Normal or Deblur.
- Page 19 EXPOSURE BACKLIGHT HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and mode. The lower the setting, he darker the masking areas have to be. Select from: 0 ~ 20. Mode: Select when to enable HME settings.
- Page 20 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: Off, Low, Middle, or High NOTE: If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.
- Page 21 COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K Auto White Balance Control mode compensates for color temperature changes lower than 2000K and higher han 15000K PUSH Push fixes he white balance based on the current ligh ing automatically. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).
- Page 22 DAY & NIGHT D&N MODE AUTO / In AUTO mode, the camera switches between day and night automatically depending COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode. B&W If B&W is selected, camera always stays in night/B&W mode. CONTROL Select if the Day/ Night switch will be based on the AGC levels (AUTO), or using IR LED lights (EXT.)
- Page 23 DAY & NIGHT CONTROL (CONT.) - CDS: The camera’s Day/ Night switch will be set according to the LED board in the camera. * CDS Threshold: Marks the light level at which the camera will switch between color and B/W. The lower the value, the camera will require less light (more darkness) to switch to Night Mode.
- Page 24 FUNCTION SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0 ~ 10 GAMMA Select he desired gamma level. 0.55 is default set ing. 0.45 ~ 0 65 MIRROR / FLIP Reflects the camera horizontally. MIRROR FLIP Reflects the camera vertically.
-
Page 25: Motion Set
MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION OFF / ON Select to enable or disable the camera’s motion detection. If ON is selected: DET. SETTINGS Use his submenu to adjust he mo ion detec ion’s sensitivity, detec ion dwell ime, Motion Es imate, and setup a Signal Output Ac ion: - Sensitivity: The smaller the movement you want to detect, he higher the sensitivity value must be. - Page 26 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. ALARM Select to enable or disable the camera’s motion detection, and select which conditions will trigger the alarm from the following options: - Shaking (ON / OFF): “Camera Moving!!”...
- Page 27 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. PRIVACY SET - Select the zone number you want to setup. - To enable it, turn the display option ON. - H-POS: Move the Zone posi ion Left or right.
- Page 28 SETUP COMMUNICATION Use this setup menu to adjust the camera’s ID and Baudrate. The camera’s default Protocol is Pelco-D. - CAM ID: Provide an ID number for the camera ( 0 ~ 255 ). - BAUDRATE: 9600bps is default. Select the baudrate from the following options: 2400/4800/9600/57600/115200 bps.
- Page 29 EXIT EXIT SAVE Exit he OSD menu after saving the recent changes. INITIAL Exit he OSD menu after resetting he camera to factory default.
-
Page 30: Dome Cover
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current. -
Page 31: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defec ive, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 32 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, hen write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
-
Page 33: Specifications
SPECIFICATIONS* VIDEO Image Sensor 1/3” Sony 1.3 Mega Pixel CMOS Sensor 1280 (H) x 1024 (V) Active Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59 95Hz (V) Synchronization Internal Horizontal Resolution 820 TV Lines [B/W], 800 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.0 Lux S/N Ratio... - Page 34 SPECIFICATIONS* OPERATIONAL Auto Gain Control 0 ~ 20 Intelligent Motion Detection Digital Quick Zoom Motion Detection 4 Motion Regions Privacy Zones 16 Programmable Privacy Masks Enhanced Day & Night Function LED Operation point selection, External LED ON/OFF Control Sharpness 0 ~ 10 Gamma 0.45 ~ 0.65 De-Fog...
- Page 35 MEMO*...
- Page 36 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
