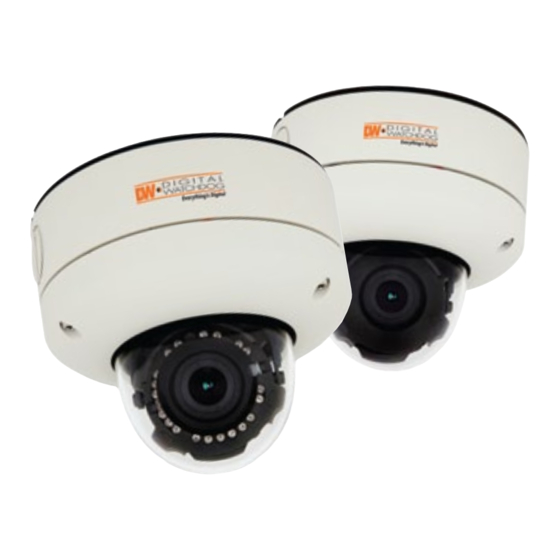

Digital Watchdog Snapit DWC-V4367WD Manual

Vandal-proof dome camera
Hide thumbs

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

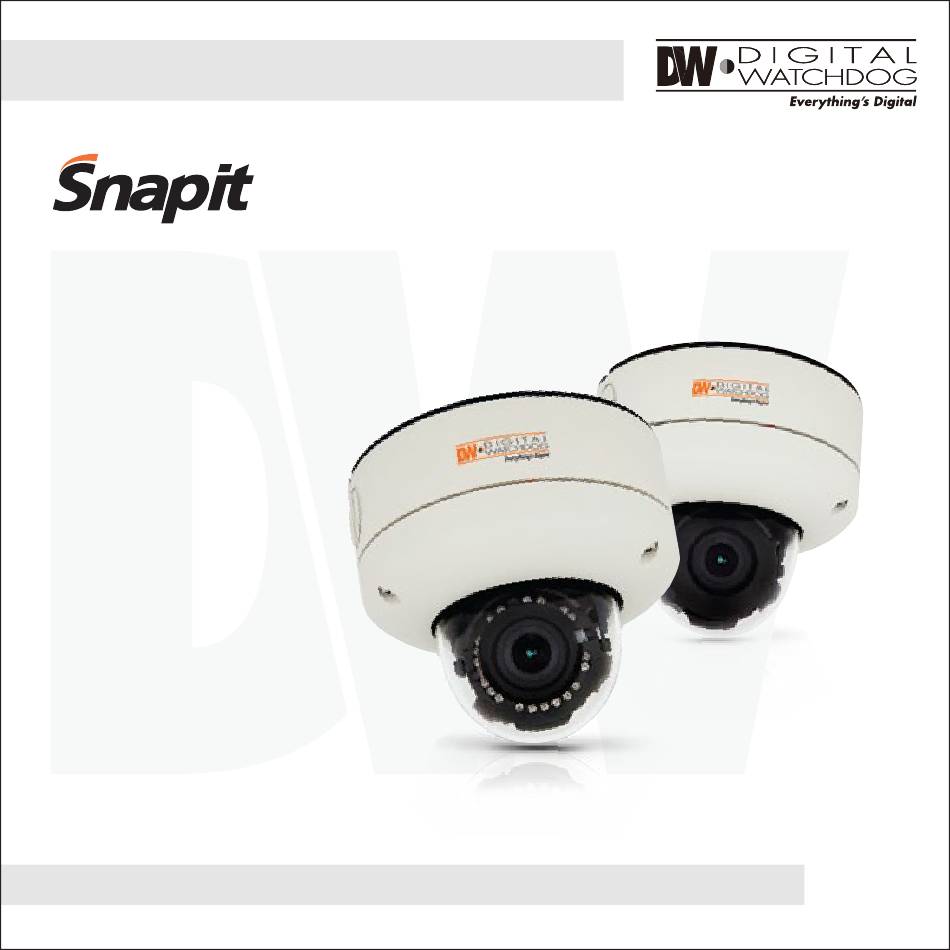

Vandal-Proof Dome Camera
DWC-V4367WD
DWC-V4367WTIR
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
12132012

Advertisement

loading
Need help?

Need help?

Do you have a question about the Snapit DWC-V4367WD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog Snapit DWC-V4367WD

Summary of Contents for Digital Watchdog Snapit DWC-V4367WD

  • Page 1 All manuals and user guides at all-guides.com Vandal-Proof Dome Camera DWC-V4367WD DWC-V4367WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132012...
  • Page 2 All manuals and user guides at all-guides.com PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
  • Page 3 All manuals and user guides at all-guides.com TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mounting the Camera 8-13 Connecting to Monitors 14-15 Adjusting the Camera Lens Adjusting the 3-Axis Gimbal Module OSD Menu 18-29 Troubleshooting Warranty Information 31-32...
  • Page 4 All manuals and user guides at all-guides.com FEATURES* 1/3” Sony Super HAD CCD II 620 TV Lines (B&W), 600 TV Lines (Color) 3.3~12mm Varifocal Auto Iris Lens 70ft Range IR with Intelligent Camera Sync [DWC-V4367WTIR Only] Electronic Day and Night [DWC-V4367WD Only] TDN (True Day and Night / IR Cut Filter) [DWC-V4367WTIR Only] Smart DNR (Digital Noise Reduction) WDR (Wide Dynamic Range)
  • Page 5 All manuals and user guides at all-guides.com PART & DESCRIPTIONS* Lens Power Input Connector (Dual Voltage) RS-485 Primary Video-BNC Output Connector Camera Control Board Bubble Dome Cover Upper Case Flush Mount Base Surface Mount Base / Junction Box Assembly Screws (#8 - 32 x 0.75) NO IR Secondary Video-BNC Output Connector Safety Wire...
  • Page 6 All manuals and user guides at all-guides.com DIMENSIONS IN MILLIMETERS (IN)* Flush Mount 137(5.39”) 101(3.98”) 17(0.67”) 28(1.1”) (4.76”) 98.8(3.89”) 54(2.13”) Surface Mount 139(5.47”) 139(5.47”) 36(1.42”) 118.8 (4.68”) 29(1.41”) (4.76”) 53.8(2.12”)
  • Page 7 All manuals and user guides at all-guides.com INSIDE THE BOX* Included with Snapit Vandal Dome Camera User Manual L-Wrench Mounting Template TORX-T20 Bolt 4 Machine Screw and 4 Dry Wall Anchors DC Plug TORX-T20 Wrench Secondary Video-BNC Cable...
  • Page 8 All manuals and user guides at all-guides.com SURFACE MOUNT INSTALLATION INSTRUCTIONS* Use the camera’s mounting Drill holes into the drywall and Pull wires through and make template or your camera to insert the drywall mounts into connections. mark the holes as required. the holes.
  • Page 9 All manuals and user guides at all-guides.com Snap the camera module onto the base by aligning the red and black markings on the base and the camera module. Secure the three (3) assembly Adjust the camera’s position Tighten the three locking screws.
  • Page 10 All manuals and user guides at all-guides.com FLUSH MOUNT INSTALLATION INSTRUCTIONS* For a flush mount housing, detach the surface mount base, which is also known as the junction box, from the flush mount base. Use the mounting template to mark the holes for the screws and a larger hole for the top extruded component of the flush mount base.
  • Page 11 All manuals and user guides at all-guides.com WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Insert the wires from the Use the mounting template to the box. camera through the wall make pilot holes. Use the dry mount housing.
  • Page 12 All manuals and user guides at all-guides.com PENDANT MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Attach the top shield to the Run all necessary cables the box. pendant mount. from the ceiling to the mount. Use the mounting template Connect all cables and verify Attach the camera to the to make pilot holes.
  • Page 13 All manuals and user guides at all-guides.com CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount bracket to the corner Mount the camera assembly to the corner of mount using the machine screws.
  • Page 14 All manuals and user guides at all-guides.com CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. DC 12V / AC 24V CCTV Monitor NO IR Second Video Output 300.0mm(11.8”) Monitor Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
  • Page 15 All manuals and user guides at all-guides.com UTP SYSTEM* Passive to Passive Monitor Passive UTP UTP Cable (Max.300ft) DVR(Digital Video Recorder) Including the Passive UTP Passive to Active Monitor Active UTP UTP Cable (Max 3,000ft) DVR(Digital Video Recorder) Including the Passive UTP...
  • Page 16 All manuals and user guides at all-guides.com ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. Focus Zoom NO IR ZOOM: TELE WIDE FOCUS: FAR NEAR Loosen the zoom and focus handles by rotating them counter-clockwise. Adjust the field of view by moving the handle RIGHT(TELE) to zoom in or LEFT(WIDE) to zoom out.
  • Page 17 All manuals and user guides at all-guides.com ADJUSTING THE 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as shown below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 90 Tilting 75...
  • Page 18 All manuals and user guides at all-guides.com MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB MODE D&N MODE MIRROR MANUAL / DC AWC / ATW / MANUAL / PUSHLOCK AUTO / COLOR / B&W MIRROR / OFF BACKLIGHT RED GAIN NIGHT C.
  • Page 19 All manuals and user guides at all-guides.com EXPOSURE LENS Manual mode supports the fixed board lens or the manual iris Manual lens. DC mode supports the auto-iris varifocal lens. NOTE: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET.
  • Page 20 All manuals and user guides at all-guides.com EXPOSURE BACKLIGHT BACK LIGHT COMPENSATION User can manually adjust the BLC level in five areas of the scene (TOP, BOTTOM, CENTER, LEFT, RIGHT). MANUAL Increase the BLC levels to make the image brighter. This is recommended.
  • Page 21 All manuals and user guides at all-guides.com EXPOSURE AGC (AUTO GAIN CONTROL) AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes the images brighter; however, it could increase OFF / LOW / MID / HIGH / HIGHEST the amount of noise.
  • Page 22 All manuals and user guides at all-guides.com COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually by changing RED MANUAL GAIN and BLUE GAIN (see below).
  • Page 23 All manuals and user guides at all-guides.com DAY & NIGHT D&N MODE Camera switches between day and night automatically depending AUTO on light level. Camera will stay in color mode when there is enough light. Camera will switch to B&W at night or other low light environments.
  • Page 24 All manuals and user guides at all-guides.com FUNCTION MIRROR Flips the image horizontally. MIRROR SHARPNESS Sets the image sharpness. The higher the number, the sharper 0 ~ 30 the image. GAMMA Select the desired gamma level. 0.45 is default setting. 0.45 / 0.60 / 1.0 / MANUAL SLC (SIDE LIGHT COMPENSATION)
  • Page 25 All manuals and user guides at all-guides.com MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. AREA SET OFF / ON AREA 1 ~ 4 If ON, motion areas can be selected and moved accordingly. Select Areas 1-4 and adjust using controls for TOP, BOTTOM, LEFT, or RIGHT.
  • Page 26 All manuals and user guides at all-guides.com PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK 1 ~ MASK 8 Select ON or OFF for each mask (MASK 1 through 8). OFF / ON If ON is selected you can set the area to be masked and the shape and color of the mask.
  • Page 27 All manuals and user guides at all-guides.com SETUP TITLE If ON is selected, you can display the camera title on the screen. OFF / ON *CLR: Clear the title. *POS: Position the title on the screen. DPC (DEAD PIXEL CANCELLATION) DPC automatically removes defective pixels in real time.
  • Page 28 All manuals and user guides at all-guides.com SETUP MONITOR MODE 1 is the default. If the displayed image is not good enough, try MODE 2. MODE 1 MODE 2 LANGUAGE The camera supports the following languages: ENGLISH, CANTONESE, MANDARIN, JAPANESE, DEUTSCH, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH.
  • Page 29 All manuals and user guides at all-guides.com EXIT EXIT Save the current settings and exit the OSD menu. SAVE & EXIT Exit the OSD menu without saving the changes. EXIT...
  • Page 30 All manuals and user guides at all-guides.com TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
  • Page 31 All manuals and user guides at all-guides.com WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 32 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
  • Page 33 All manuals and user guides at all-guides.com SPECIFICATIONS* VIDEO Image Sensor 1/3" Sony Super HAD CCD II Total Pixels 811 (H) x 508 (V), 411K Pixels Effective Pixels 768 (H) x 494 (V) Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 620 TV Lines [B&W], 600 TV Lines [Color] Minimum Illumination...
  • Page 34 All manuals and user guides at all-guides.com OPERATIONAL Back Light OFF / BLC / HME / WDR White Balance AWC / ATW / MANUAL / PUSHLOCK Privacy Zones OFF / ON (8 Programmable Zones) Language ENGLISH / MANDARIN / CANTONESE / JAPANESE / GERMAN FRENCH / ITALIAN / RUSSIAN / SPANISH / DUTCH ENVIRONMENTAL Operating Temperature...
  • Page 35 All manuals and user guides at all-guides.com MEMO*...
  • Page 36 All manuals and user guides at all-guides.com 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
