Let's Go Aero T01731 Manual

Tonneau cover for littlegiant & specops trailers
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

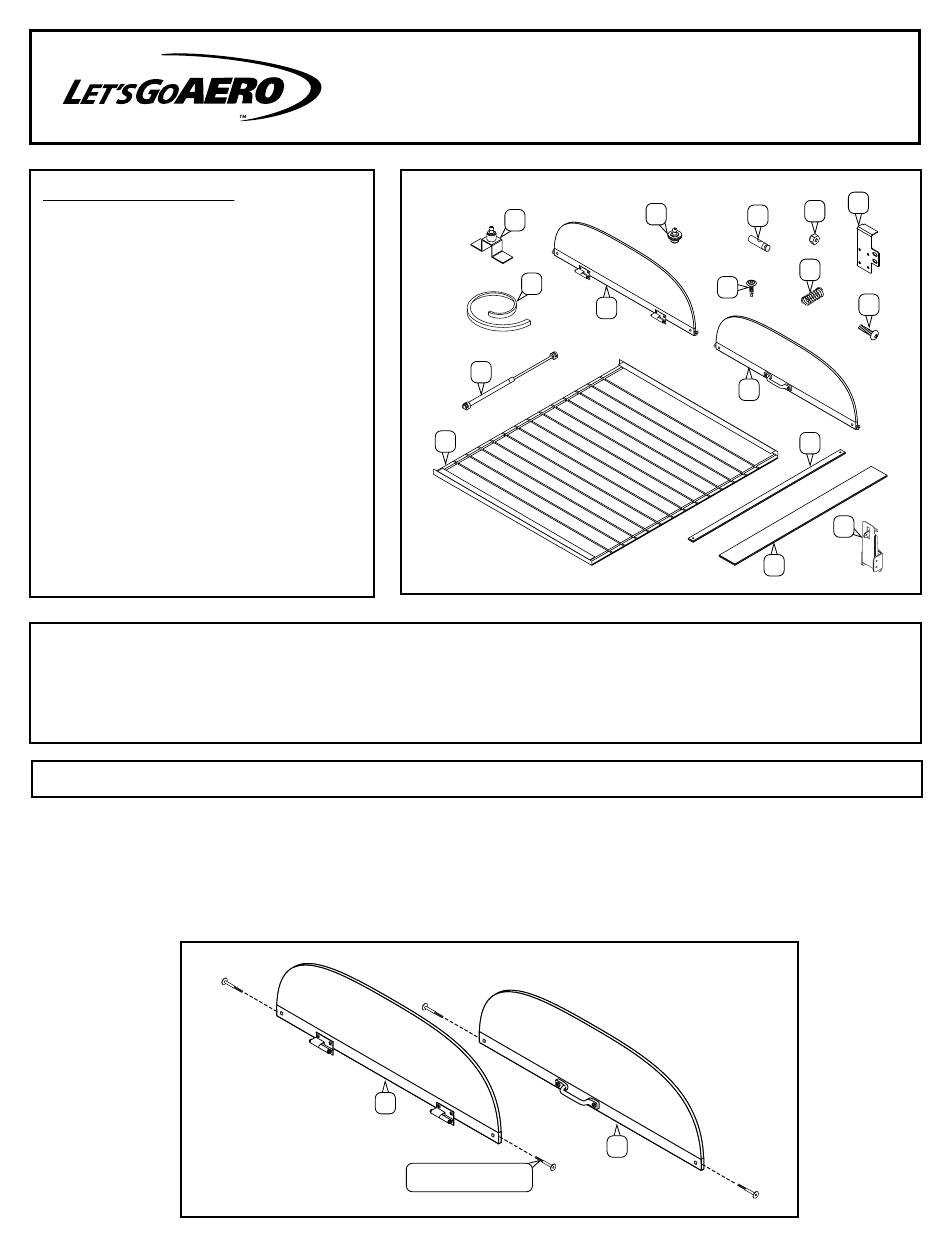

PARTS LIST
Qty Description
A
1
Body Cover
B
1
Front Bulk Head (With Hinges)
C
1
Rear Bulk Head (With Handle)
D
4
Standard Pin Nuts
E
1
HexCap Insert
F
2
Bracketed Ball Stud & Assemblies
G
2
Ball Studs & Assemblies
H
4
Hinge Tek Screws (SM)
I
2
Gas Lifts
J
2
Latch Plates
K
2
Weather Stripping
L
4
Cover Bands
M
2
Band Springs
N
2
Latch Plates (Left & Right)
P
8
10-24 x 1/2in Pan Philips Screw
Q
8
10-24 Nylock Nut
R
12
Upholstery Nails
5/32in Hex Key
3/8in Hex Driver
1/2in Wrench
Step 1:
TOOL REQUIRED: 5/32in Hex Key
Remove the pre-installed Joint Connector Bolts from each side of the Front & Rear Bulk Head [B & C] and set the bolts
aside. [Fg 1]
NOTE: Do not remove the pre-installed Pin Nuts.
HexCap Hardshell Tonneau Cover
Tonneau Cover for LittleGiant & SpecOps Trailers
F
K
I
A
TOOLS REQUIRED:
1/2in Socket Wrinch
5/16in Drill Bit
Cordless Drill
B
JOINT
CONNECTOR BOLT
Page 1 of 7
G
D
H
B
C
E
Phillips Screw Driver
[Fg 1]
C
P/N T01731
N
P
M
Q
L
J

Advertisement

loading
Need help?

Need help?

Do you have a question about the T01731 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Let's Go Aero T01731

Summary of Contents for Let's Go Aero T01731

  • Page 1 HexCap Hardshell Tonneau Cover Tonneau Cover for LittleGiant & SpecOps Trailers P/N T01731 PARTS LIST Qty Description Body Cover Front Bulk Head (With Hinges) Rear Bulk Head (With Handle) Standard Pin Nuts HexCap Insert Bracketed Ball Stud & Assemblies Ball Studs & Assemblies...

  • Page 2: Proper Installation

    Step 2: TOOL REQUIRED: 5/32in Hex Key IMPORTANT - THIS STEP REQUIRES TWO PEOPLE FOR [Fg 2] PROPER INSTALLATION. Place the HexCap Body Cover [A] on a large flat surface. Starting at one end of the Body Cover, align both Bulk Heads [B &...

  • Page 3: Inside View

    Step 5: TOOL REQUIRED: Drill; 3/8in Hex Driver; 1/2in Socket Wrench IMPORTANT - THIS STEP REQUIRES TWO PEOPLE FOR PROPER INSTALLATION. Place the HexCap cover assembly SQUARELY on the trailer with [Fg 6] the Front Bulk Head (with Hinges) [B] onto the front of the trailer as shown.
  • Page 4 Step 7: TOOL REQUIRED: Drill; 3/8in Hex Driver; 1/2in Wrench IMPORTANT - THIS STEP REQUIRES TWO PEOPLE FOR PROPER INSTALLATION. From the front of the trailer locate the #5 U-Tube. Measure 1 inch across and 1 inch down and mark this spot. Drill a hole using a dill with a 3/8 inch drill bit in the marked location.
  • Page 5 Step 9: Secure each Latch to a Latch Plate with the horizontal lip of the Latch Plate [N] facing away from the Latch [J] using the supplied 10-24 Nuts [Q] and 10-24 Screws [P] as shown. [Fg 16] NOTE: There is a Right & Left version of the Latch Plate [N].
  • Page 6 Step 11: TOOL REQUIRED: Drill; Philips Head Driver Apply Weather Striping [K] to each end of the HexCap Body Cover [A]. [Fg IMPORTANT: The “Tooth” on the Weather Striping [K] must face inwards on the cover. [Fg 21] Secure the Weather Stripping [K] using six (6) Upholstery Nails [R] per side as shown.

  • Page 7: One-Year Limited Warranty

    WARNING ALWAYS BE SURE THE LATCHES ARE FULLY LOCKED AND SECURE BEFORE TRANSIT. FAILURE TO PROPERLY LOCK AND SECURE THE HEXCAP LATCHES MAY RESULT BODILY INJURY, DEATH, AND/OR PROPERTY DAMAGE. NEVER BEGIN TRANSIT WITH THE HEXCAP COVER LATCHES UNLOCKED WARNING ALWAYS BE SURE ALL CONNECTIONS ARE SNUG AND FULLY SECURE BEFORE TRANSIT.
