Let's Go Aero TwinTube User Assembly And Operation Manual

Let's Go Aero TwinTube User Assembly And Operation Manual

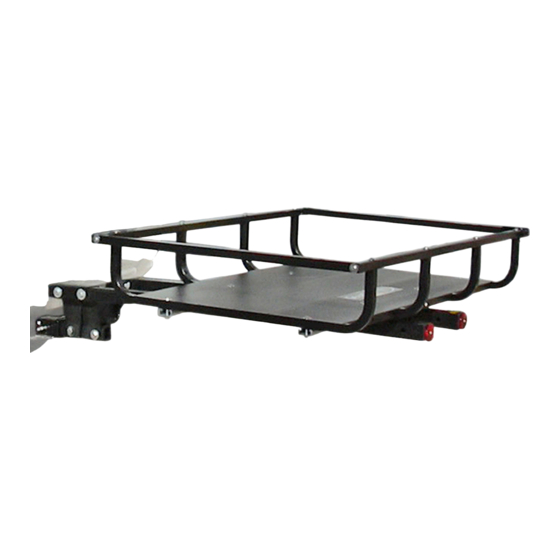

Cargo rack

Advertisement

Quick Links

Part One
TwinTube™ Telescope Mounting
Platform Installation Page 2
Part Two
GearCage™ Cargo Rack Installation Page 7
Part Three
Safe Use and Operation Page 9
Installation Tips:
Keep this manual for future reference.
The GearCage™ TT system fits a 2" size receiver style hitch and requires a minimum
of a Class II tow rating. If your vehicle has a Class II, 1.25" size hitch, an adapter will
be required
Keep in mind that the TwinTube™ Mounting Platform is a precision built product and
some consideration of "alignment" is necessary when first assembling the system.
The TwinTube™ uses "symmetry" in a balanced manner, so when bolting the system
together for the first time, tighten all hardware in a two step process - first tighten the
assembly to set the components in position and then, when the TwinTube™ is installed,
securely tighten all hardware.
If this product was purchased from a dealer, all documentation MUST be furnished to the customer.
G
C
™ TT C
ear
aGe
GCTT 4210 T
User Assembly and Operation Manual
r
arGo
aCk
s
elesCopinG
ysTem
