BE SURE THE LEVELERS INCLUDED WITH THE TRAILER ARE FOLDED DOWN AND IN THE "DEPLOYED POSITION" BEFORE
INSTALLING AND USING THE CRASH PAD TENT AND DECKING, WHEN UNCOUPLED FROM THE HITCH.

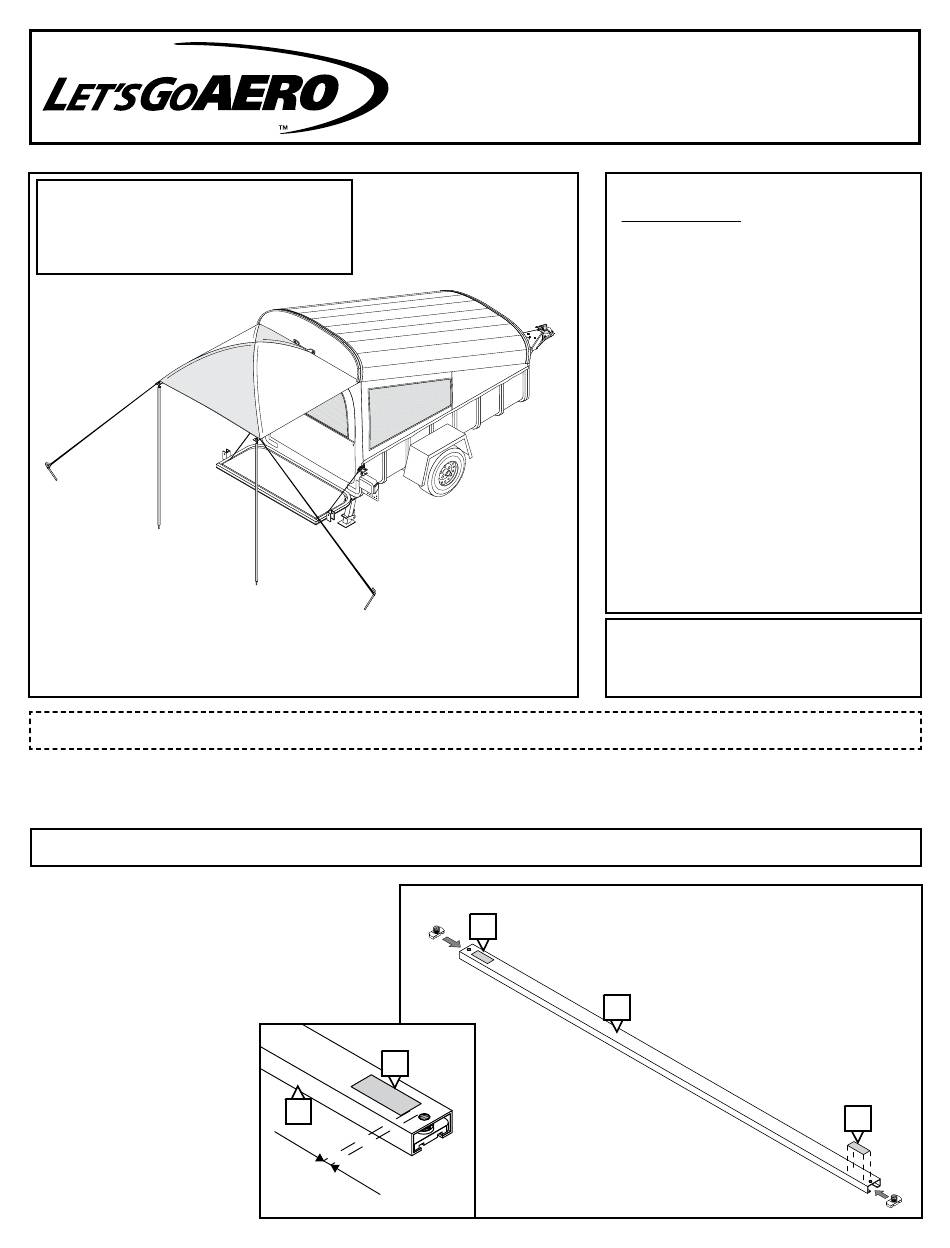

STEP 1
TOOLS REQUIRED: 3/16IN ALLEN KEY & 7/16IN ALLEN KEY
Apply two (2) small Velcro Strips (approx 2in in
length) [G] to each end of the Support Bar as
shown. [Fg. 1]
NOTE: The Velcro should be approximately
.25in away from the holes at
each end. [Fg. 2]
Slide one (1) Spring Nut [V]
into each end of the Support
bars [F] and align the holes.
[Fg. 3]

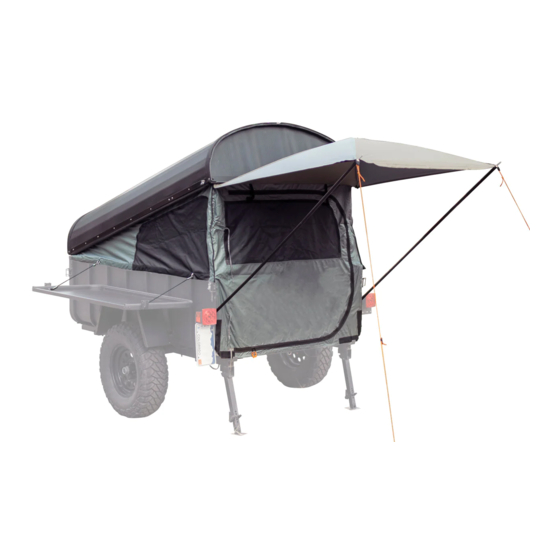

HexCap Cover , Tent & Deck Platform for LittleGiant and SpecOps Trailers
*TRAILER SOLD SEPARATELY
BEFORE STARTING
[Fg. 2]
G
E
~.25IN
Page 1 of 10
Crash Pad Camper Upfit Kit
QTY
10
10
10
10
5
1
10
2
1
2
4
1
2
2
2
2
2
2
4
4
10
G
E
Umbrella P/N T01991
PARTS LIST
PARTS:
A
1/4-20 BUTTON HEAD BOLT
B
1/4-20 WASHERS
C
1/4-20 NYLOCK NUT
D
SUPPORT BRACKETS
E
SUPPORT BAR
F
DECK
G
2IN VELCRO
H
1/2IN VELCRO - 84" LENGTH
I
1IN VELCRO - 54" LENGTH
J
1IN VELCRO - 84" LENGTH
K
.5IN TEK SCREWS
L
1IN VELCRO - 49" LENGTH
M
1IN VELCRO - 19" LENGTH
N
1IN VELCRO - 1.5" LENGTH
O
TAIL GATE CABLES
P
END GATE TABLE CABLES
Q
TAILGATE HINGES
TAILGATE BRACKET
S
T
3/4" TEX SCREWS
U
LOCK WASHERS
V
SPRING NUTS
HEXCAP COVER KIT P/N T01731
TOOLS REQUIRES
3/16" ALLEN KEY
7/16" WRENCH OR SOCKET
DRILL
PATENT PROTECTED
[Fg. 1]
G
