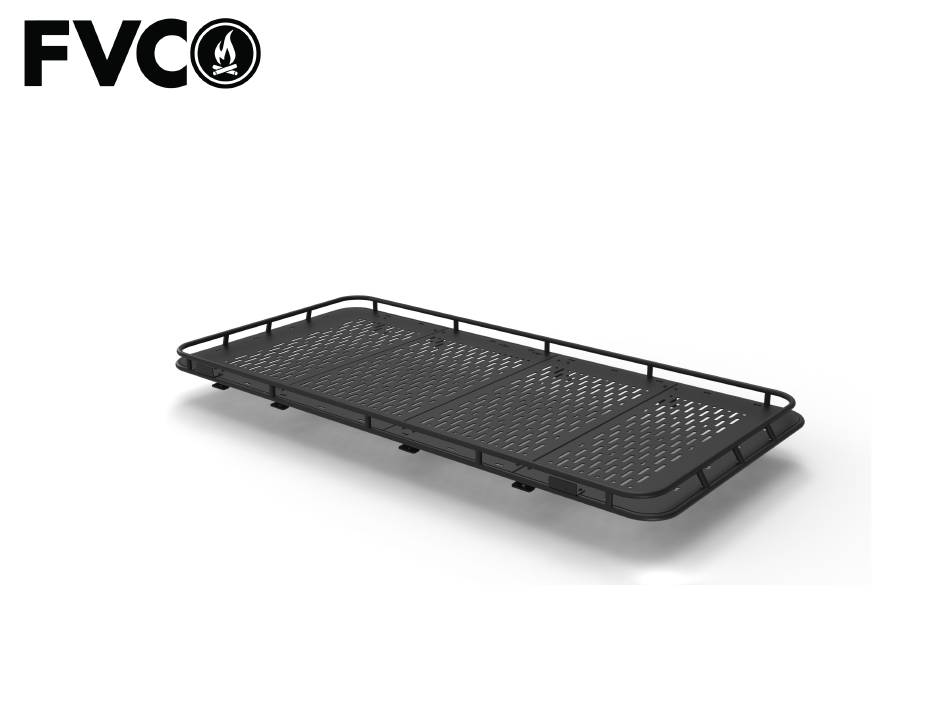

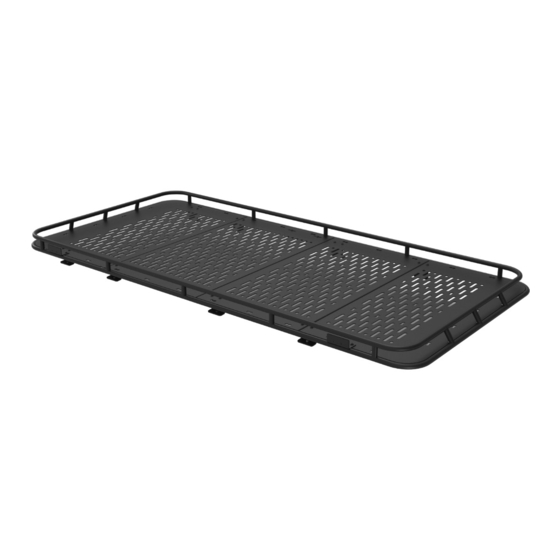

- Page 1 Installation Guide Safari Rack 148 MR TR0106B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW SAFARI RACK? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS F45 BRACKET LADDER BRACKET FAN TRIM RING SAFARI RACK FOOT BRACKET QTY-2 QTY-1 QTY-1 QTY-1 QTY-8 M8 HEX BOLT 3/8 FLAT 3/8-16 NYLOCK 3/8-16 FLANGE HEAD BOLT SEALING WASHER QTY-8 WASHER QTY-22 QTY-22 QTY-8 QTY-44 STICKER PACK INSTALLATION GUIDE QTY-1 QTY-1 FLATLINE VAN CO •... -
Page 5: Let's Get Started
LET’S GET STARTED! REF PHOTO 1 FIRST STEP IS TO ATTACH THE FOOT BRACKETS TO THE TOP OF YOUR VAN USING THE SUPPLIED M8 HARDWARE AND SEALING WASHERS. NOTE- DUE TO FACTORY INCONSISTENCIES YOU MAY NEED TO GRIND CLEARANCE ON THE HOLES OF YOUR VAN TO GAIN ACCESS TO THE THREADED HOLES. - Page 6 IF YOU’VE GOT A FAN (OR TWO) YOU’LL WANT TO MAP THOSE OUT ON THE RACK TO CUT ACCESS HOLES. WE RECOMMEND USING THE FRONT OF THE FORWARD FOOT BRACKET YOU JUST MOUNTED ON YOUR VAN AS YOUR REFERENCE POINT NOTE- WE RECOMMEND USING A JIGSAW WITH A METAL CUTTING 18.25”...
- Page 7 FIGURE 1 NEXT, IF YOU’VE GOT A SIDE LADDER TO THROW ON, YOU’LL WANT TO INSTALL THE LADDER BRACKET TO YOUR RACK BEFORE YOU HOIST IT ONTO THE VAN. BOLT IT LOOSE TO THE SAFARI RACK AS SHOWN IN FIGURE 1 & 2 LADDER BRACKET FIGURE 2 FLATLINE VAN CO •...
- Page 8 THE NEXT STEP IS TO STRAP UP THE RACK AND LIFT IT UP INTO PLACE. AS PREVIOUSLY MENTIONED, IT’S BEST TO HAVE A PROFESSIONAL DO THIS. ONCE THE RACK IS IN PLACE, TIGHTEN THE RACK DOWN TO YOUR FOOT BRACKETS USING THE 3/8-16 HEX BOLTS, SPLIT LOCK WASHERS, AND 3/8-16 NYLOCKS.
- Page 9 IF YOU’RE INSTALLING A FIAMMA F45 AWNING, ATTACH THE PROVIDED BRACKETS TO THE RACK USING THE PROVIDED HARDWARE. FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 10 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
