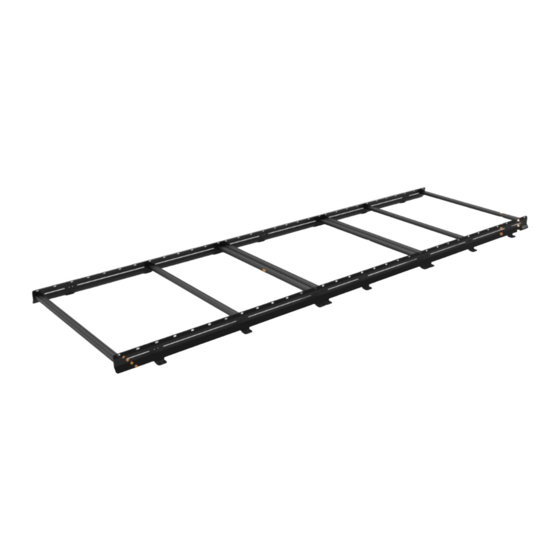

- Page 1 Installation Guide Low Pro Roof Rack 170 SP0102B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW PARTS? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS LEFT SIDE RAIL RIGHT SIDE RAIL CENTER SIDE RAIL CROSSBAR QTY-2 QTY-2 QTY-2 QTY-8 RAIL NUT 1/4-20 FLANGE HEAD SCREW 3/8-16 BUTTON HEAD SCREW 3/8 SPLIT LOCK WASHER QTY-36 QTY-32 QTY-36 QTY-36 STICKER PACK INSTALLATION GUIDE QTY-1 QTY-1 FLATLINE VAN CO •... -
Page 5: Let's Get Started
LET’S GET STARTED! RAIL NUT SLIDE HALF OF THE RAIL NUTS INTO THE PASSENGER SIDE FACTORY ROOF RAIL, AND HALF OF THEM INTO THE DRIVER SIDE RAIL. PRO TIP- IF YOU’RE INSTALLING A SIDE LADDER, PUT TWO (2) EXTRA RAIL NUTS IN ON THE DRIVER SIDE! SPACE OUT THE RAIL NUTS CLOSE TO THE FINAL POSITION (GROUPS OF 2) SEE FIGURE 1 FOR ROUGH REFERENCE DIMENSIONS. - Page 6 BEGINNING WITH THE FORWARD SECTION OF THE RACK (SEE FIGURE 2 FOR LAYOUT), START LOOSELY ATTACHING THE SIDE RAILS TO THE ROOF RAILS USING THE 3/8-16 BUTTON HEAD SCREW & 3/8 SPLIT LOCK WASHER, BUT DO NOT TIGHTEN ALL THE WAY DOWN (SEE FIGURE 3 FOR DETAIL) FIGURE 2 NOTE- FRONT “FOOT”...
- Page 7 FIGURE 4 PLACE YOUR CROSSBARS IN DESIRED LOCATION, LOOSELY BOLTING THE 1/4-20 FLANGE HEAD SCREWS IN PLACE. NOTE- KEEP IN MIND THE LAYOUT OF YOUR ROOF TOP ARRAY (SOLAR PANELS, FANS, TENTS, ETC.) YOU CAN MOUNT CROSSBARS IN THE SET PAIR OF HOLES (SEE FIGURE 4), OR YOU CAN PLACE THEM IN THE SLOTS WHICH PROVIDES YOU MORE FREEDOM OF LAYOUT.
- Page 8 FIGURE 7 TIGHTEN ALL CROSSBAR BOLTS USING THE 5/32 ALLEN KEY (SEE FIGURE 7) NOTE- DO NOT OVERTIGHTEN! IF YOU ARE CONCERNED ABOUT THE BOLTS BACKING OUT, YOU CAN PUT A DAB OF BLUE LOCTITE ON THE BOLTS BEFORE TIGHTENING DOWN COMPLETELY. FIGURE 8 NOW TIGHTEN SIDE RAILS TO ROOF RAIL USING THE 7/32 ALLEN KEY (SEE FIGURE 8)
- Page 9 GET OUT AND EXPLORE! LEAVE US A REVIEW Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave Review." Add a short review and upload a few photos to be showcased on the product page.
