About Tab
The About Tab is an information tab that displays the company name, part name, system serial number, the
firmware revisions, and populated light source names and serial numbers. There is no interactable content on this
page.
Serial Numbers
(Placeholder shown)
Help Icon
The user can get help on any of the settings menu options by tapping the question mark icon at the bottom right
of the screen (See Figure 13). Note that this help is only available on the various Settings tabs wherever the
question mark icon is shown. After tapping the icon, it will change to a question mark icon with an arrow.
While active, the help mode will disable selection of any of the options. Instead, tapping any menu, value, or
selection option button on the screen will bring up a help popup window. The user needs to tap something to exit
out of help mode, even the help icon. For example, tapping the question mark icon then tapping the Signals Tab
will bring up the help popup screen shown in Figure 17 below.
Rev. B, May 17, 2024

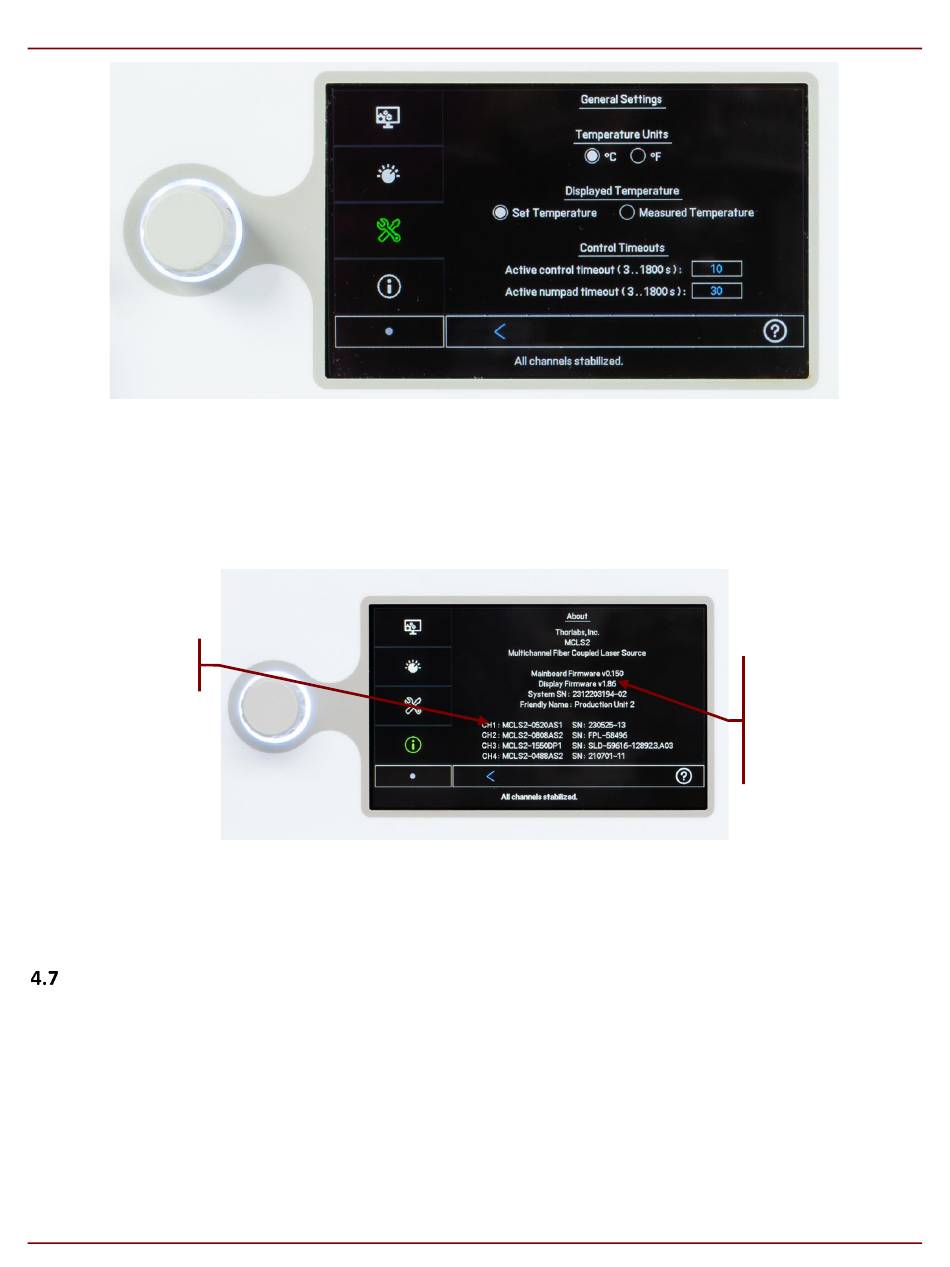

Figure 15
General Menu – System Defaults Shown
Figure 16
About Tab
Chapter 4: Operation
The revision of the control
board and display
firmware are shown here.
Note the rev number may
be different.
Page 23
