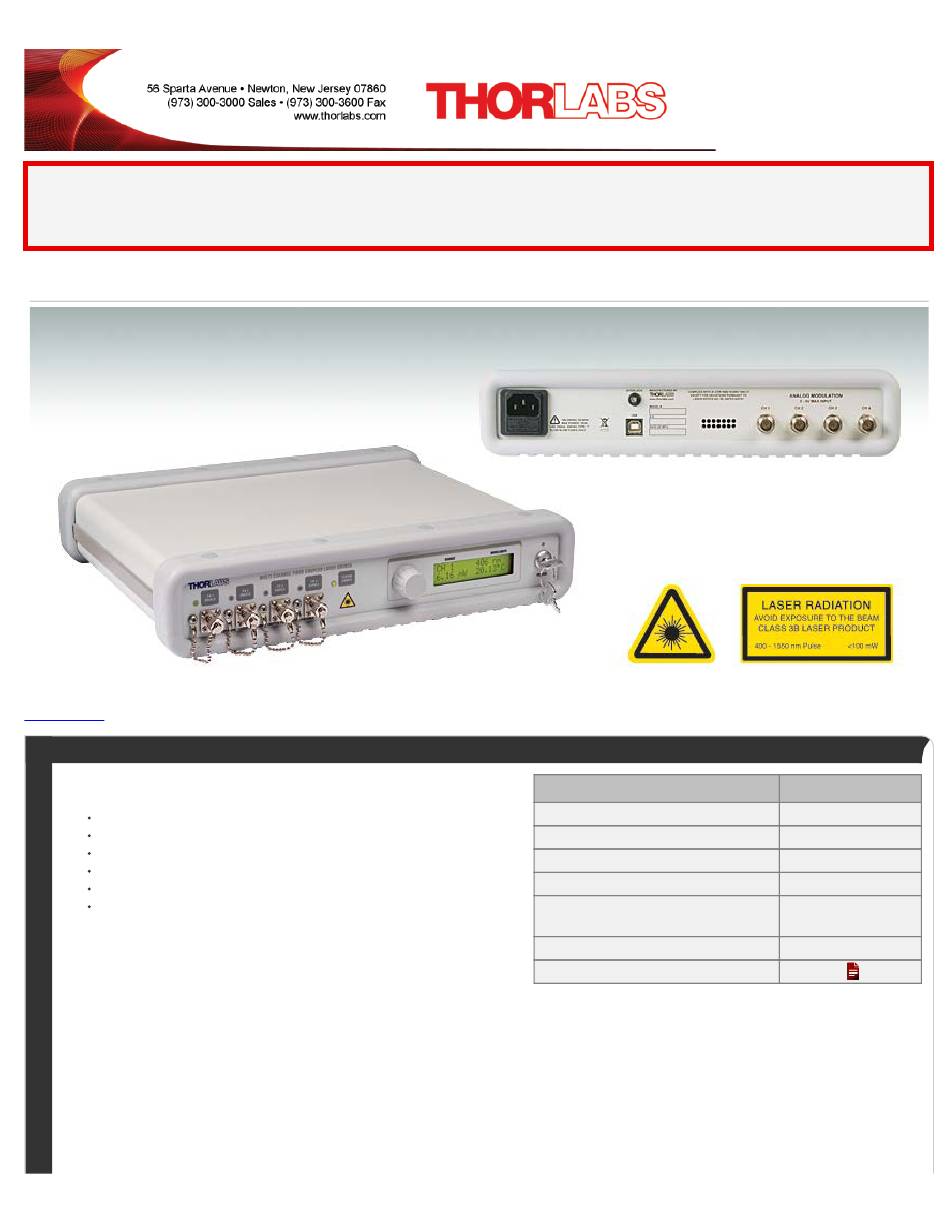

Thorlabs.com - 4-Channel Fiber-Coupled Laser Source
Item # MCLS1-980-20 was discontinued on January 11, 2016. For informational purposes, this is a copy of
►
4 Laser Output Channels with FC/PC Connectors
►
TEC and Controller for Each Channel
►
Stable, Low Noise Output
►
33 Power/Wavelength Options Available
Hide Overview
O V E R V I E W
Features
4 Laser Output Channels with FC/PC Connectors
Independent Temperature Control Gives High Temperature Stability
Low Noise Output
USB Interface
Low-Profile Package, 2.5" (64 mm) Tall
25 Wavelengths Available (See Table Below for Details)
Thorlabs' 4-Channel, Fiber-Coupled, Customizable Laser Source provides easy
coupling and simple control of laser-diode-driven fiber optics. The laser source is
configured to accept a wide range of fiber-pigtailed laser diodes with discrete
wavelengths in the spectral range from 405 - 1550 nm, in any combination. The laser
source allows more than one channel to be turned on simultaneously; however, it is only possible to adjust the power output of one at a time from the front
panel.
Each laser diode is operated from an independent, high-precision, low-noise, constant-current source and temperature control unit. An intuitive LCD interface
allows the user to view and set the laser current and temperature independently for each laser. The display indicates the channel number selected, the output
wavelength of the source, the operating power calculated from the laser diode monitor diode, and the actual temperature the laser is set to.
This device incorporates a microcontroller to fully control the laser's optical power and temperature as well as to monitor the system for fault conditions. The
laser source includes a USB connection that allows remote enabling, power adjustment, and temperature adjustment. On the rear panel, analog inputs are
http://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=19&objectgroup_id=3800[2/12/2016 5:39:20 PM]
MCLS1-980-20 - January 11, 2016
the website content at that time and is valid only for the stated product.
4 - C H A N N E L F I B E R - C O U P L E D L A S E R S O U R C E
MCLS1
Item #
Display Power Accuracy
Current Set Point Resolution
Temperature Adjust Range
Temperature Set Point Resolution
Noise
Rise/Fall Time
Support Documents
View of Back Panel
MCLS1
±10%
0.01 mA
20.00 to 30.00 °C
±0.01 °C
<0.5% Typical
(Source Dependent)
<5 µs
