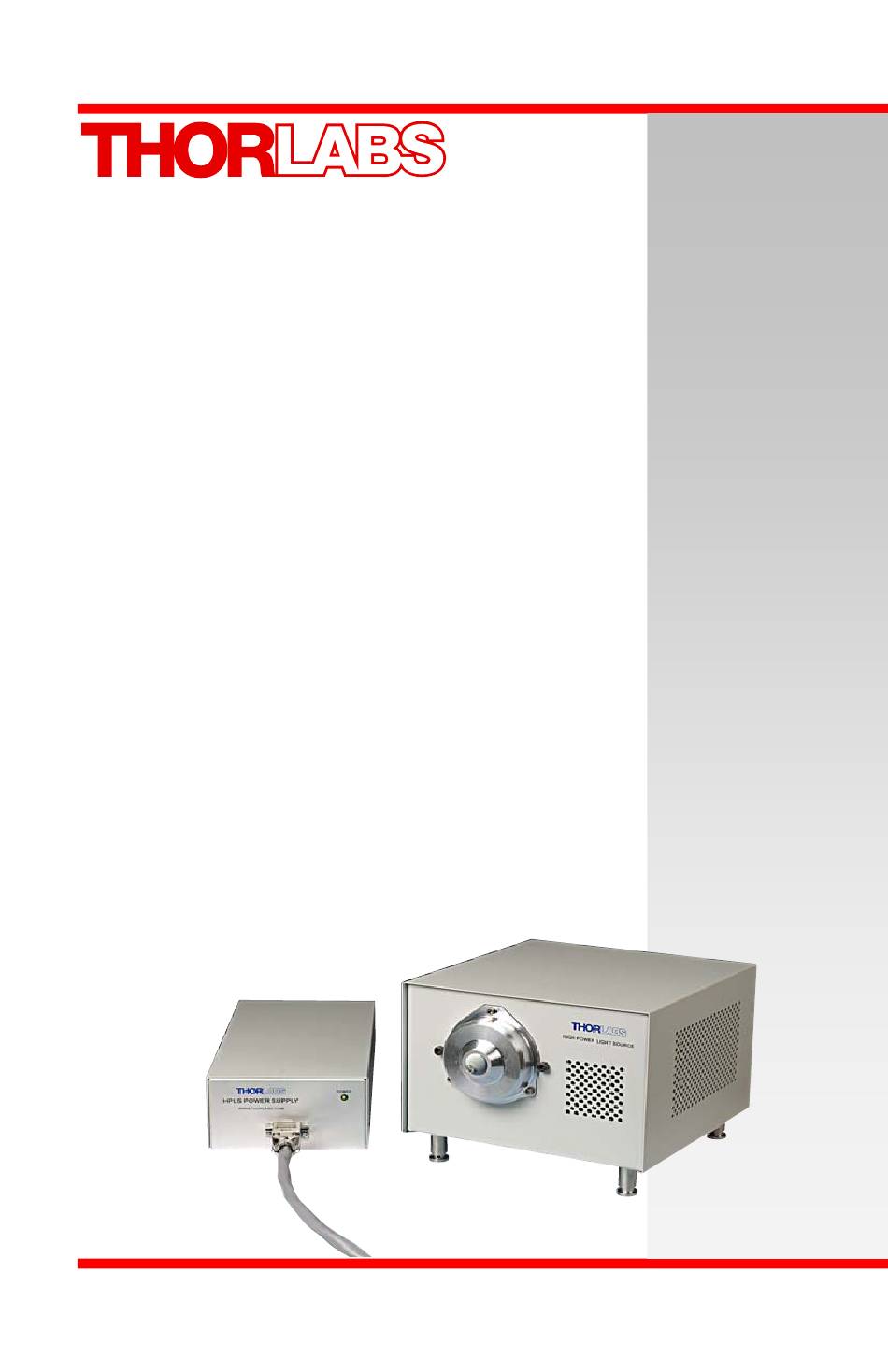

- Page 1 HPLS-30 Series High Power Lamp Source Operating Manual...
-
Page 2: Table Of Contents
5.1. Fuse Replacement ..................17 5.2. Ventilation ...................... 17 5.3. Troubleshooting ..................... 17 Part 6. Warranty Information ..............18 Part 7. Regulatory ..................18 Part 8. Thorlabs Worldwide Contacts ............19 19713-D02, Rev C, March 18, 2011 Page 2 www.thorlabs.com... - Page 3 Figure 4: Power Supply, 28VDC D-Sub Connector ............7 Figure 5: Power Supply, Rear Panel ................7 Figure 6: Graphical User interface, GUI ............... 9 Figure 7: HPLS Mechanical Drawing ................. 16 19713-D02, Rev C, March 18, 2011 Page 3 www.thorlabs.com...
-
Page 4: Part 1. Important Safety Notice
Mobile telephones, cellular phones or other radio transmitters should not to be used within the range of three meters of this unit since the electromagnetic field intensity may exceed the maximum allowed disturbance values according to EN50082-1. 19713-D02, Rev C, March 18, 2011 Page 4 www.thorlabs.com... -
Page 5: Part 2. Product Overview
GUI. The unit includes an external power supply, which contains the mains power switch, fuse, power LED, and D-Sub power supply cable. INT-30 Spectral Power Distribution (5 mm Diameter Aperture) INT-30-04 INT-30-02 INT-30-03 950 1000 Wavelength (nm) Figure 1: HPLS-30 Spectrum 19713-D02, Rev C, March 18, 2011 Page 5 www.thorlabs.com... -
Page 6: Figure 2: Front Lamp Output
UV High Power Lamp Lamp Output Figure 2: Front Lamp Output Lamp Intensity Control Lamp Enable Switch Interface Lamp Enable LED D_SUB Power Lamp Power LED Connector Figure 3: Back Panel and Manual Control 19713-D02, Rev C, March 18, 2011 Page 6 www.thorlabs.com... -
Page 7: Figure 4: Power Supply, 28Vdc D-Sub Connector
UV High Power Lamp Power LED D-Sub Power Indicator connector Figure 4: Power Supply, 28VDC D-Sub Connector Power Switch Fuse Drawer IEC Connector Figure 5: Power Supply, Rear Panel 19713-D02, Rev C, March 18, 2011 Page 7 www.thorlabs.com... -
Page 8: Part 3. Setup And Operation
To disable the lamp, press the Lamp Enable switch. The Lamp will go OFF. The Lamp Enable LED will go OFF. • After the lamp has been disabled and turned OFF, please wait 30 seconds before lamp is turned back ON. 19713-D02, Rev C, March 18, 2011 Page 8 www.thorlabs.com... -
Page 9: Gui Control
PC with the USB cable and run the application. The software will automatically locate the correct COM Port to communicate with the lamp. Figure 6: Graphical User interface, GUI 19713-D02, Rev C, March 18, 2011 Page 9 www.thorlabs.com... -
Page 10: Gui Operation
Warning: Voltage under Limit • Alarm: Lamp Shut Down! • Alarm: Lamp Failed to Start! • Alarm: Excessive Temperature! • Alarm: Voltage to Low! • Alarm: Current to Low! • No Lamp Connected. 19713-D02, Rev C, March 18, 2011 Page 10 www.thorlabs.com... -
Page 11: Computer Controlled Operation
Return Extended Status 0x23 Lstat1, Lstat2 See Status below Return Current and 0x24 Current and See Status below Temperature Temperature Return all status 0x25 Lstat1, Lstat2, See Status below Current and Temp 19713-D02, Rev C, March 18, 2011 Page 11 www.thorlabs.com... - Page 12 0 corresponds to a current of 0 A 255 corresponds to a current of Measurement 12.45 A 1 Status bits cleared to ZERO automatically when the warning condition returns to normal. 19713-D02, Rev C, March 18, 2011 Page 12 www.thorlabs.com...
-
Page 13: Part 4. Specifications
Input line voltage range DC output voltage Rated at 8.5 A Fuse, User Replaceable 5 mm x 20 mm, 250 V, Slow Blow, Type T AC Line Voltage Input line voltage range 19713-D02, Rev C, March 18, 2011 Page 13 www.thorlabs.com... - Page 14 Blower, bulb cooling 12 VDC 50 mm Dimensions (L,W,H) 9.42" x 7.23" x 5.76" Weight 14.75 lbs boxed weight Feet 1" Stainless Steel Pillar Post; Thorlabs MSP1 HPLS-30-02 UV Screened Specifications Parameter Conditions Unit Luminous Flux See Note 1 1920...
- Page 15 UVA Output (315-400nm) See Note 1 Watts Focal Point Measured from 8.36 tip of cone Numerical Aperture NA 0.66 Note 1: Measured into a 5mm diameter circular aperture with NA = 0.5 19713-D02, Rev C, March 18, 2011 Page 15 www.thorlabs.com...
-
Page 16: Mechanical Drawing
UV High Power Lamp 4.1. Mechanical Drawing Figure 7: HPLS Mechanical Drawing 19713-D02, Rev C, March 18, 2011 Page 16 www.thorlabs.com... -
Page 17: Part 5. Maintenance
There are no serviceable parts in the HPLS and no reason to open the unit. If you suspect a problem with your HPLS please call Thorlabs and technical support will be happy to assist you. -
Page 18: Part 6. Warranty Information
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 19: Part 8. Thorlabs Worldwide Contacts
UV High Power Lamp Part 8. Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com... - Page 20 www.thorlabs.com...
