Features
Supports bus operation up to 250 MHz
■
Available speed grades are 250, 200, and 167 MHz
■
Registered inputs and outputs for pipelined operation
■
3.3V core power supply
■
2.5V or 3.3V I/O power supply
■
Fast clock-to-output times
■
2.6 ns (for 250 MHz device)
❐
Provides high performance 3-1-1-1 access rate
■
User selectable burst counter supporting Intel Pentium
■
leaved or linear burst sequences
Separate processor and controller address strobes
■
Synchronous self-timed write
■
Asynchronous output enable
■
Single cycle chip deselect
■

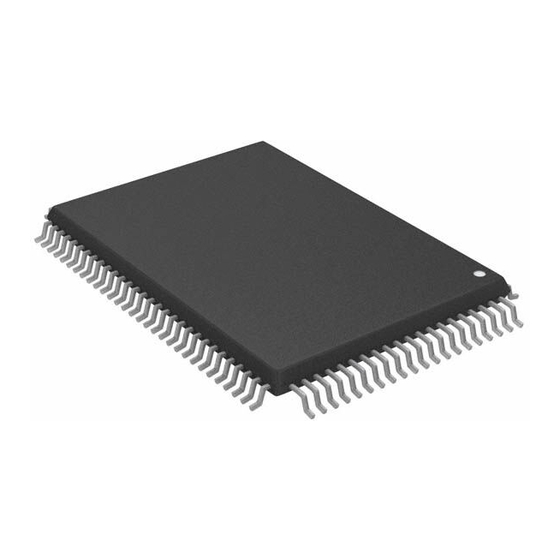

CY7C1380D/CY7C1382D is available in JEDEC-standard
■
Pb-free 100-pin TQFP, Pb-free and non Pb-free 165-ball FBGA
package; CY7C1380F/CY7C1382F is available in
JEDEC-standard Pb-free 100-pin TQFP, Pb-free and non
Pb-free 119-ball BGA and 165-ball FBGA package
IEEE 1149.1 JTAG-Compatible Boundary Scan
■
ZZ sleep mode option
■
Selection Guide
Description
Maximum Access Time
Maximum Operating Current
Maximum CMOS Standby Current
Notes
1. For best practices or recommendations, please refer to the Cypress application note AN1064, SRAM System Design Guidelines on www.cypress.com.
2. CE CE are for TQFP and 165 FBGA packages only. 119 BGA is offered only in 1 chip enable.
3, 2
Cypress Semiconductor Corporation
Document #: 38-05543 Rev. *F

Functional Description

The
SRAM integrates 524,288 x 36 and 1,048,576 x 18 SRAM cells
with advanced synchronous peripheral circuitry and a two-bit
counter for internal burst operation. All synchronous inputs are
gated by registers controlled by a positive edge triggered clock
input (CLK). The synchronous inputs include all addresses, all
data
depth-expansion chip enables (CE
inputs (ADSC, ADSP, and ADV), write enables (BW
and global write (GW). Asynchronous inputs include the output
enable (OE) and the ZZ pin.
Addresses and chip enables are registered at rising edge of
®
inter-
clock when address strobe processor (ADSP) or address strobe
controller (ADSC) are active. Subsequent burst addresses can
be internally generated as they are controlled by the advance pin
(ADV).
Address, data inputs, and write controls are registered on-chip
to initiate a self-timed write cycle.This part supports byte write
operations (see
for further details). Write cycles can be one to two or four bytes
wide as controlled by the byte write control inputs. GW when
active LOW causes all bytes to be written.
The
operates from a +3.3V core power supply while all outputs
operate with a +2.5 or +3.3V power supply. All inputs and outputs
are JEDEC-standard and JESD8-5-compatible.
250 MHz
2.6
350
70
• 198 Champion Court
CY7C1380D, CY7C1382D
CY7C1380F, CY7C1382F
18-Mbit (512K x 36/1M x 18)
Pipelined SRAM
CY7C1380D/CY7C1382D/CY7C1380F/CY7C1382F
inputs, address-pipelining
Table 1 on page 6 and
CY7C1380D/CY7C1382D/CY7C1380F/CY7C1382F
200 MHz 167 MHz
3.0 3.4
300 275
70 70
,
• San Jose CA 95134-1709
[1]
chip enable (CE ),
1
[2]
and CE ), burst control
2 3
, and BWE),
X
"Truth Table" on page 10
Unit
ns
mA
mA
• 408-943-2600
Revised January 12, 2009
