Cypress Semiconductor NoBL CY7C1470BV33 Specification Sheet

Features
■ Pin-compatible and functionally equivalent to ZBT™
■ Supports 250 MHz bus operations with zero wait states
❐ Available speed grades are 250, 200, and 167 MHz
■ Internally self-timed output buffer control to eliminate the need
to use asynchronous OE
■ Fully registered (inputs and outputs) for pipelined operation
■ Byte Write capability
■ Single 3.3V power supply
■ 3.3V/2.5V IO power supply
■ Fast clock-to-output time
❐ 3.0 ns (for 250-MHz device)
■
Clock Enable (CEN) pin to suspend operation
■
Synchronous self-timed writes

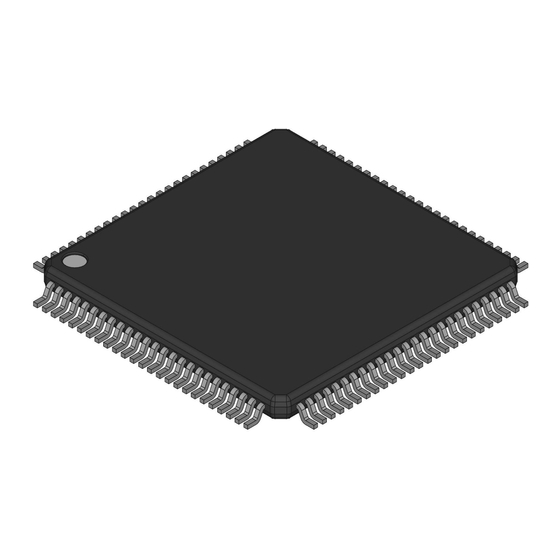

■ CY7C1470BV33, CY7C1472BV33 available in
JEDEC-standard Pb-free 100-pin TQFP, Pb-free and
non-Pb-free 165-ball FBGA package. CY7C1474BV33
available in Pb-free and non-Pb-free 209-ball FBGA package
■ IEEE 1149.1 JTAG Boundary Scan compatible
■
Burst capability—linear or interleaved burst order
■ "ZZ" Sleep Mode option and Stop Clock option
Selection Guide
Description
Maximum Access Time
Maximum Operating Current
Maximum CMOS Standby Current
Cypress Semiconductor Corporation
Document #: 001-15031 Rev. *C
72-Mbit (2M x 36/4M x 18/1M x 72)
Pipelined SRAM with NoBL™ Architecture

Functional Description

The CY7C1470BV33, CY7C1472BV33, and CY7C1474BV33
are 3.3V, 2M x 36/4M x 18/1M x 72 Synchronous pipelined burst
SRAMs with No Bus Latency™ (NoBL™) logic, respectively.
They are designed to support unlimited true back-to-back read
or write operations with no wait states. The CY7C1470BV33,
CY7C1472BV33, and CY7C1474BV33 are equipped with the
advanced (NoBL) logic required to enable consecutive read or
write operations with data being transferred on every clock cycle.
This feature dramatically improves the throughput of data in
systems that require frequent read or write transitions. The
CY7C1470BV33, CY7C1472BV33, and CY7C1474BV33 are pin
compatible and functionally equivalent to ZBT devices.
All synchronous inputs pass through input registers controlled by
the rising edge of the clock. All data outputs pass through output
registers controlled by the rising edge of the clock. The clock
input is qualified by the Clock Enable (CEN) signal, which when
deasserted suspends operation and extends the previous clock
cycle.
Write operations are controlled by the Byte Write Selects
(BW
CY7C1472BV33, and BW
Write Enable (WE) input. All writes are conducted with on-chip
synchronous self-timed write circuitry.
Three synchronous Chip Enables (CE
asynchronous Output Enable (OE) provide for easy bank
selection and output tri-state control. To avoid bus contention,
the output drivers are synchronously tri-stated during the data
portion of a write sequence.
250 MHz
3.0
500
120
• 198 Champion Court
CY7C1472BV33, CY7C1474BV33
–BW for CY7C1470BV33,
a d
–BW
a h
200 MHz 167 MHz
3.0
500
120
,
• San Jose CA 95134-1709
CY7C1470BV33
BW –BW for
a b
for CY7C1474BV33) and a
, CE , CE ) and an
1 2 3
Unit
3.4 ns
450 mA
120 mA
• 408-943-2600
Revised February 29, 2008
