Disassemble the camera

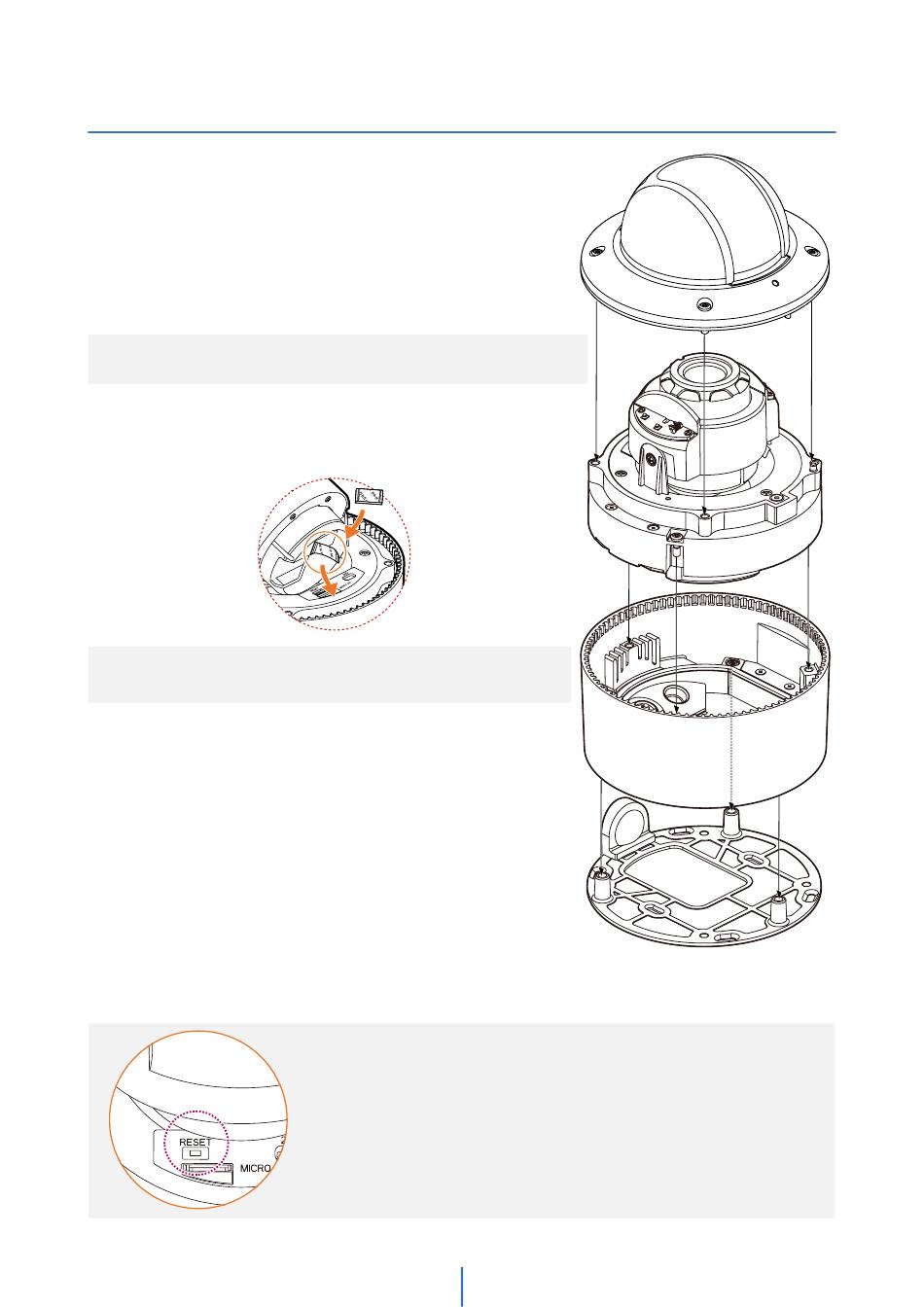

1. For the installation, remove the dome using the wrench included with
the camera to loosen the four (4) screws on the base of the dome.
Remove the protection film between the dome and the camera module.
2. Detach the camera module from the junction box and gang box bracket.
Using the wrench included with the camera, loosen the three (3) screws
connecting the camera module to the junction box and the three (3)
screws connecting the junction box to the gang box bracket.
NOTE: The camera module is connected to the junction box with both screws
and a magnetic holder. Use caution when removing the camera
moudule from the junction box to not damage the magnetic holder.
3. Remove the existing moisture packet and insert the new packet in its
place. The camera will generate enough heat to dry moisture during
operation. In case of a moisture issue, keep the moisture absorber
in the camera for up to six (6) months.
WARNING: The moisture absorber prevents moisture buildup inside the
camera, which may cause image performance issues and
damage the camera.
4. Using the mounting template sheet or the camera's junction box itself,
mark and drill the necessary holes in the mounting surface.
Resetting the camera: With the camera ON, press the reset button above
the SD card slot for five (5) seconds to initiate a camera-wide reset of all
the settings, including network settings.
