Installation -

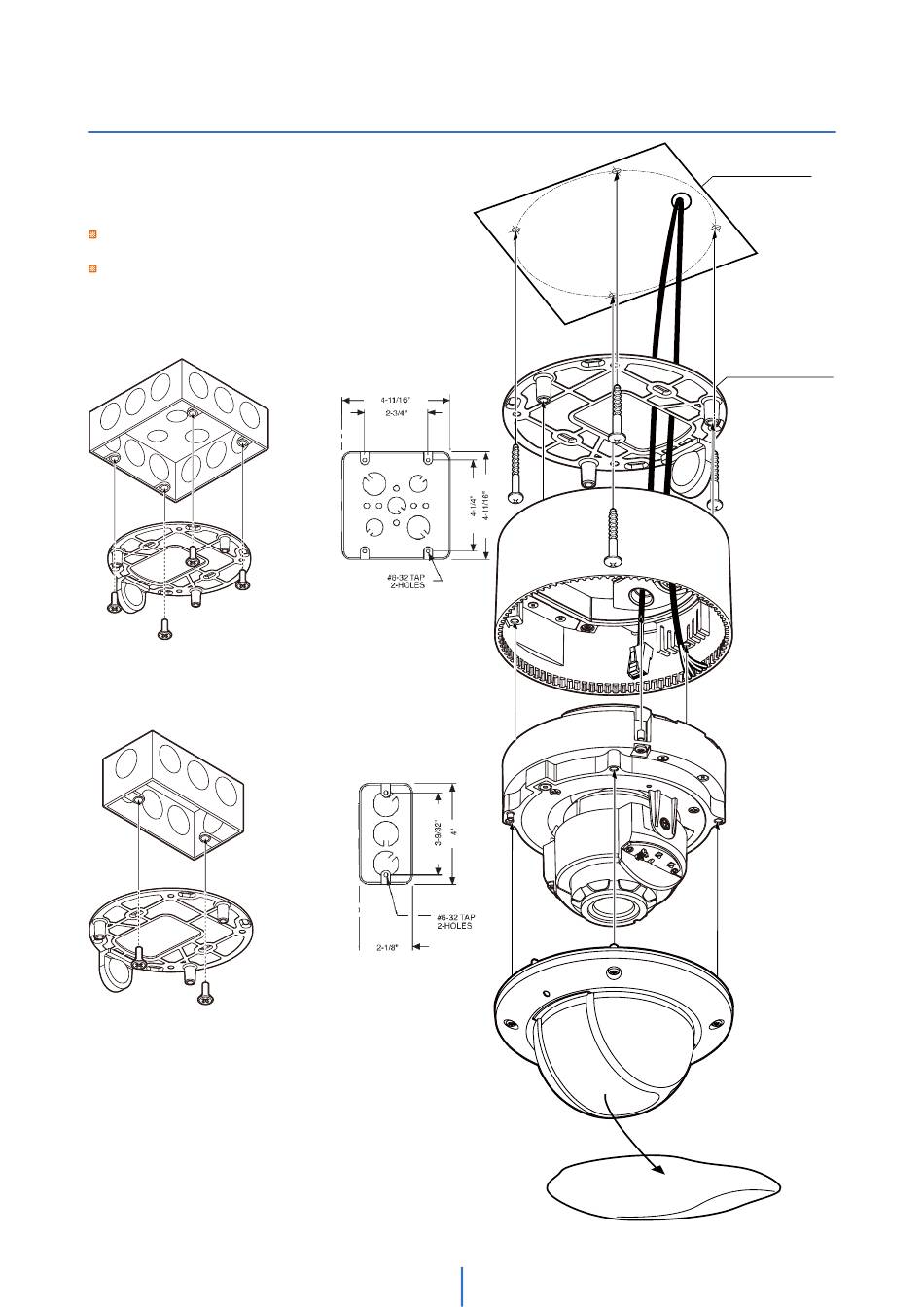

Typical Installation
1. Attach the gang box bracket to the mounting surface
using the included anchors and screws. Please note
that the camera cannot be mounted without the gang
box bracket.
Use the 4 screws (A) included with the converter plate
when using a 2-gang handy electrical box or switch box.
Use the 2 screws (B) included with the converter plate
when using a 1-gang handy electrical box.
2-Gang handy Boxes /
switch boxes
1-gang handy
electrical box
2. Tighten the red-color screws to assemble the bottom
junction box and camera module.
2-gang handy electrical
box and switch boxes
handy boxes
9
Mounting Template
Gang Box
Bracket
Dome Cover
Protective Film
