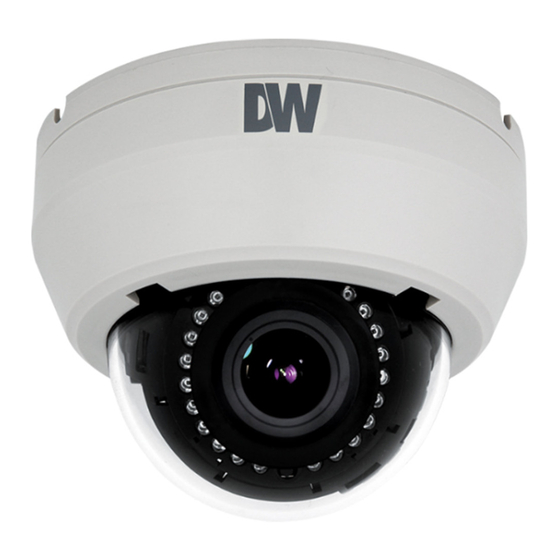

- Page 1 All manuals and user guides at all-guides.com Indoor Dome IR Camera DWC-D3361WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132013...
- Page 2 All manuals and user guides at all-guides.com PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 All manuals and user guides at all-guides.com Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Lens Adjusting the Camera Angle Module OSD Menu 13-21 Troubleshooting Warranty Information...
- Page 4 All manuals and user guides at all-guides.com FEATURES* 1/3” 760H CMOS Sensor Chip (760 Horizontal Pixels) 690TVL 2.8~12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync TDN (True Day & Night) with IR Cut Filter WDR (Wide Dynamic Range) 2D DNR (2D Digital Noise Reduction) Smear Cancelation AGC / AWB...
- Page 5 All manuals and user guides at all-guides.com PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover...
- Page 6 All manuals and user guides at all-guides.com DIMENSIONS IN MILLIMETERS (IN)* 120.0 4.72” 89.0 3.50” 81.0 3.19”...
- Page 7 All manuals and user guides at all-guides.com INSIDE THE BOX* Included with your Camera User Manual Mounting Template 4 Machine Screws and 4 Dry Wall Anchors L-Key Secondary Video-BNC Cable Indoor Dome IR Camera DWC-D3361WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
- Page 8 All manuals and user guides at all-guides.com EASY INSTALLATION* 1. To detach the camera’s cover dome from the camera’s module press the small buttons located at the sides of the cover dome. While pressing the buttons, disconnect the cover dome from the camera’s base module.
- Page 9 All manuals and user guides at all-guides.com CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC CCTV Monitor Left Right Second Video Output Down Monitor Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
- Page 10 All manuals and user guides at all-guides.com CONTROL BOARD* Secondary Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. Remotve the camera’s lens cover by rotating it counter-clockwise. Use the Joystick to control the camera’s OSD options.
- Page 11 All manuals and user guides at all-guides.com ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom: Wide Tele Non IR Focus: Near To adjust the field of view, use the L-Key to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out.
- Page 12 All manuals and user guides at all-guides.com ADJUSTING THE CAMERA GIMBAL* Non IR Non IR Rotation 360º Panning 360º Non IR Tilting 55º IR LED Tilting 65º...
- Page 13 All manuals and user guides at all-guides.com MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT LENS WB MODE D&N MODE MANUAL / DC ATW / INDOOR / OUTDOOR AUTO / COLOR / ETX. BRIGHTNESS COLOR GAIN EXIT JUMP 1 ~ 10 1 ~ 10 SAVE &...
- Page 14 All manuals and user guides at all-guides.com EXPOSURE LENS Manual mode supports the fixed board lens or the Manual manual iris lens. DC mode supports the auto-iris varifocal lens. BRIGHTNESS Adjust the camera’s brightness from 0~10. The higher the number, the brighter the image will appear.
- Page 15 All manuals and user guides at all-guides.com EXPOSURE WDR (Wide Dynamic Range) Enables the camera to capture clear images even when there are both very bright and very dark areas in the camera’s field of view. Select from the following options: LOW / MIDDLE (Default) / HIGH.
- Page 16 All manuals and user guides at all-guides.com COLOR WB MODE Set as the camera’s default value. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. OUTDOOR Select this option if the camera is to be mounted ouside in an open area. INDOOR Select this option if the camera is to be mounted inside a closed area.
- Page 17 All manuals and user guides at all-guides.com DAY & NIGHT D&N MODE AUTO In AUTO mode, camera switches between day and night automatically depending on light level. COLOR If COLOR is selected, camera always stays in day/color mode. For best IR LEDs performance, select this option as default.
- Page 18 All manuals and user guides at all-guides.com FUNCTION MIRROR The mirror option allows you to flip the camera’s image horizontally and vertically to adjust the camera’s view after installation. Chose from the following options: NONE / H / V / H, V. V - Flip- turns the camera upside down.
- Page 19 All manuals and user guides at all-guides.com SETUP WHITE LEVEL Adjust the camera’s White Levels from 1 ~ 10. The higher the number, the stronger white colors in the camera’s Field of View will appear. The camera is set by default to the optimal White Level and therefore it is recommended not to change the original settings.
- Page 20 All manuals and user guides at all-guides.com SETUP BURST Setting the color signal level value from 1 to 10. The camera is set by default to the optimal burst level and therefore it is recommended not to change the original settings. OSD BG You can add a dark background behind the OSD to better view the OSD options when the camera’s image is too bright and the OSD text is not seen properly.
- Page 21 All manuals and user guides at all-guides.com EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. RESET Exit the OSD menu adter resetting the camera to its default settings.
- Page 22 All manuals and user guides at all-guides.com TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
- Page 23 All manuals and user guides at all-guides.com WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 24 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 25 All manuals and user guides at all-guides.com SPECIFICATIONS* VIDEO Image Sensor 760H CMOS Total Pixels 756(H) X 504(V) Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal Horizontal Resolution 690 TV Lines Minimum Illumination F1.2 (30IRE): 0.0 Lux S/N Ratio 58dB (AGC off) Video Output...
- Page 26 All manuals and user guides at all-guides.com OPERATIONAL Day and Night AUTO/ COLOR/ EXT Mirror NONE/ H/ V/ H,V Contrast 1~10 Sharpness 1 ~ 10 White Level 1~10 ENVIRONMENTAL Operating Temperature C ~ 50 C (14 F ~ 122 Operating Humidity Less than 90% (Non-Condensing) ELECTRICAL Power Requirement...
- Page 27 All manuals and user guides at all-guides.com MEMO*...
- Page 28 All manuals and user guides at all-guides.com 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
