RS232 Serial Over IP Device Server

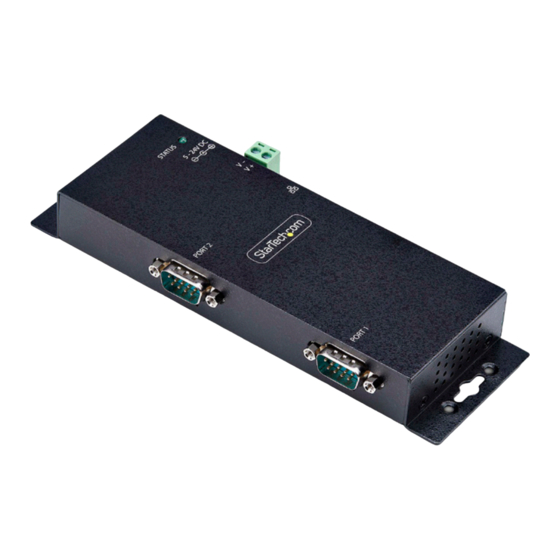

I23-SERIAL-ETHERNET shown
Actual product may vary from photos
User Manual
SKU#: I23-SERIAL-ETHERNET / I43-SERIAL-ETHERNET
For the latest information and specifications visit
www.StarTech.com/I23-SERIAL-ETHERNET / www.StarTech.com/I43-SERIAL-ETHERNET
Manual Revision: 06/21/2024
Advertisement
Table of Contents
Related Manuals for StarTech.com I23-SERIAL-ETHERNET
Summary of Contents for StarTech.com I23-SERIAL-ETHERNET
- Page 1 RS232 Serial Over IP Device Server I23-SERIAL-ETHERNET shown Actual product may vary from photos User Manual SKU#: I23-SERIAL-ETHERNET / I43-SERIAL-ETHERNET For the latest information and specifications visit www.StarTech.com/I23-SERIAL-ETHERNET / www.StarTech.com/I43-SERIAL-ETHERNET Manual Revision: 06/21/2024...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• 電源が入っている状態の製品または電線の終端処理を行わないでくださ い。 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I terminiali dei fili elettrici non devono essere realizzate con il prodotto e/o le linee elettriche sotto tensione. • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Table Of Contents
Use the Software to Discover the Serial Device Server ............... 12 Configure the Serial Port Settings ....................... 14 Changing COM Port or Baud Rate in Windows ................17 LED Chart ..............................18 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 5: Product Diagram (I23-Serial-Ethernet)
• Four Holes on the bottom of the Serial Device Server DIN Rail Mounting Holes • Used to secure the included DIN Rail (Not Shown) Mounting Kit to the Serial Device Server To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Rear View
• Connect a +5V~24V DC Power Source Terminal Block Power • A minimum of 5V 3A (15W) is required Input DC Power Input • Connect the included Power Adapter To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram (I43-Serial-Ethernet)
• Four Holes on the bottom of the Serial Device Server DIN Rail Mounting Holes • Used to secure the included DIN Rail (Not Shown) Mounting Kit to the Serial Device Server To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Rear View
• Connect a +5V~24V DC Power Source Terminal Block Power • A minimum of 5V 3A (15W) is required Input DC Power Input • Connect the included Power Adapter To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Information
• Network Protocol Mode: Telnet Server (RFC2217) • Serial Mode: RS-232 Factory Default Button Settings • IP Address: 192.168.5.252 • Password: admin • Network Protocol Mode: Telnet Server (RFC2217) • Serial Mode: RS-232 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Hardware Installation
5. Using a pair of fine-point tweezers or a small flat-head screwdriver, carefully move the jumper to the 5V position. 6. Re-assemble the Housing, ensuring the Housing Screw Holes align. 7. Replace the Housing Screws removed in Step 3. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Software Installation
1. Navigate to: www.StarTech.com/I23-SERIAL-ETHERNET www.StarTech.com/I43-SERIAL-ETHERNET 2. Click the Drivers/Downloads tab. 3. Under Driver(s), download the Software Package for Windows Operating System. 4. Extract the contents of the downloaded .zip file. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Operation
Telnet server. 2. Type the IP Address of the Serial Device Server. Note: This can be found using the StarTech.com Device Server Manager for Windows, or by viewing the connected devices on the local network router. 3. Connect to the Serial Device Server. -
Page 13: Use The Software To Discover The Serial Device Server
2. Click Auto Search to initiate the process of discovering Serial Device Servers on the local network. 3. Discovered Serial Device Servers will appear in the “Remote Server(s)” list in the right pane. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 All Servers” to add all discovered Serial Device Servers. 5. The Serial Device Servers will be mounted in Device Manager as “SDS Virtual Serial Port” with an associated COM port number. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Configure The Serial Port Settings
• Software • None In the Software 1. Open the StarTech.com Device Server Manager. 2. Select “Configure in App” or double click the Serial Device Server in the list. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 2. Type the IP address of the Serial Device Server into the address bar. 3. Enter the password and select “Login”. See Default Password on Page 6. 4. Select the “Serial Settings” to expand the options. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 Number, and more. 6. Under “Set”, select “OK” to set the serial settings to the port. 7. Select “Save Changes” to save the settings to the Serial Device Server. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Changing Com Port Or Baud Rate In Windows
4. Click Save Changes. 5. In the StarTech.com Device Server Manager, click the Serial Device Server which should still have the old COM Port number, then click Delete. 6. Re-add the Serial Device Server using “Add Selected Server” to add a specific Serial Device Server or “Add All Servers”... -
Page 19: Led Chart
• Off: No serial data is being transmitted or received • Steady Green: Power is On • Off: Power is Off Power/Status LED • Blinking Green: Restoring to Factory Defaults To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 21 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
