Summary of Contents for StarTech.com SV1105IPPCI

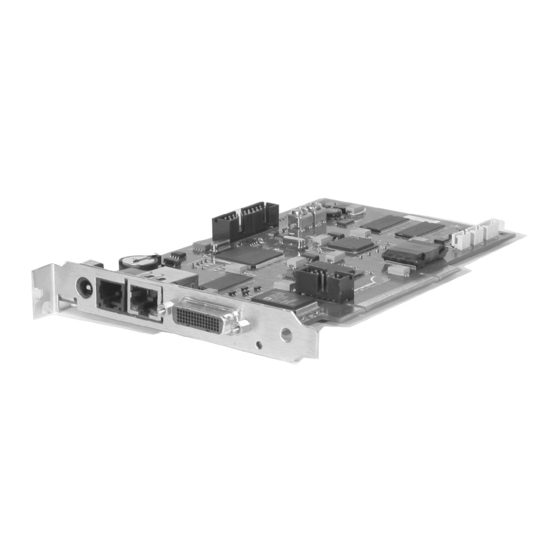

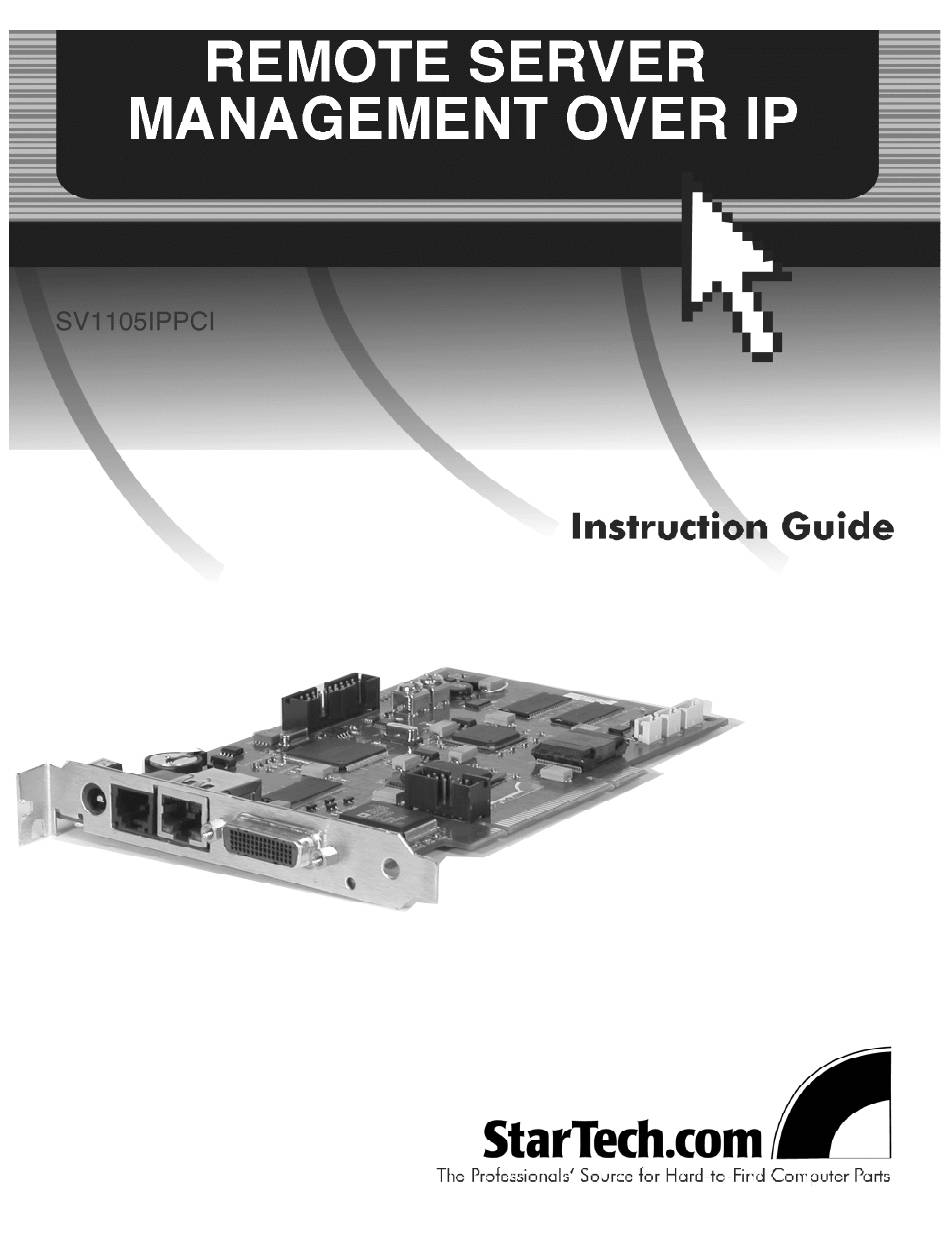

- Page 1 Actual product may vary from photo...
- Page 2 Information in this document is provided in connection with StarTech.com products. No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in the StarTech.com Terms and Conditions of Sale for such products, StarTech.com assumes no liability whatsoever,...
-
Page 4: Table Of Contents
Product Guide Remote Server Management over IP PCI Adapter SV1105IPPCI CONTENTS OVERVIEW..................4 StarTech.com Remote Server Management over IP ............. 4 Understanding important concepts ................4 What’s Included....................... 4 Feature Summary ......................5 Requirements ........................6 Host computer ..........................6 Client computer .......................... - Page 5 Using a Telnet client........................37 Using an FTP client ........................38 Obtaining additional product support ..................39 APPENDIX B – TECHNICAL SPECIFICATIONS ......40 Hardware specifications ....................40 Software specifications ....................41 FCC Compliance (Class A) ................... 41 GLOSSARY.................. 42 SV1105IPPCI Product Guide...
-
Page 6: Overview
StarTech.com Remote Server Management over IP StarTech.com Remote Server Management over IP card is a hardware-based solution that enables you to control and manage computers through a remote client computer and an Internet browser. -
Page 7: Feature Summary
PCI bus or using the external 12v DC power supply. Client Viewers Microsoft Windows-compatible Remote Server Management over IP Viewer is provided for controlling the host control session. Compatibility The Remote Server Management over IP card does not require any host video drivers. SV1105IPPCI Product Guide... -
Page 8: Requirements
Web browser is Microsoft Internet Explorer 5.5 or higher. • System hardware meets or exceeds the following minimum configuration: • 500 Mhz / Intel Pentium III processor 256 Mb RAM 2 Mb free local hard drive space SV1105IPPCI Product Guide... -
Page 9: Mouse Acceleration
Remote Server Management over IP Viewer Auto Mouse Sync option to Off. (For more information, see Chapter 4 – Remote Server Management over IP Management, Understanding Remote Server Management over IP Viewer settings.) SV1105IPPCI Product Guide... -
Page 10: Video Settings
Using an unsupported refresh rate may not provide the best video lock on all video adapters. For optimum video resolution and performance, use either a video setting of 1024 x 768 @ 60 Hz or the lowest refresh rate for any of the listed resolutions. SV1105IPPCI Product Guide... -
Page 11: Chapter 1 - Installation
Overview chapter, Requirements section. Installing the Remote Server Management over IP card There are two types of cables included with your SV1105IPPCI: one black, multi-ended KVM cable and two red/black braided power/reset cables. -
Page 12: Connecting The Remote Server Management Over Ip Card And Cables
Using the other reset/power cable, attach the white connector to the J8 pin block and attach the black connector to the reset connection on the host computer system board. system board system board power on/off connection reset connection SV1105IPPCI Product Guide... - Page 13 Attach the Remote Server Management over IP card to your network using a 10/100 Ethernet cable connected through the card’s network port. Connect the 12v power adapter to power port and to a grounded power source. The Remote Server Management over IP card is now installed and powered. SV1105IPPCI Product Guide...
-
Page 14: Chapter 2 - Initial Setup
Using VPS Find to discover the IP address The VPS Find utility, available for download from the StarTech.com website, searches for Remote Server Management over IP cards installed on a network segment. The steps below outline how to use VPS Find to identify the IP address associated with each Remote Server Management over IP card. -
Page 15: Verifying Dhcp Configuration
IP address will revert to the last IP address set on the device. If there was no previous IP address set, then the IP address will revert to the predefined static IP address of 192.168.1.254. SV1105IPPCI Product Guide... - Page 16 Select the Set Static IP address option and use the previous static IP address, gateway, and subnet mask settings, or enter new IP address information, and click Apply Settings. Log in to the static IP address and the Remote Server Management over IP Web Server will refresh with the new IP address. SV1105IPPCI Product Guide...
-
Page 17: Using A Static Ip Address
Log in to the Remote Server Management over IP Web Server as admin or as a user with Administrator rights. From the Device Configuration tab, enter the new IP address, gateway, and subnet mask information, click Apply Settings, and then log in to the new IP address. SV1105IPPCI Product Guide... -
Page 18: Using Arp To Change The Factory-Configured Ip Address
TCP traffic or packets. Verify that the corresponding port for each feature you want to access is routed as follows: Applications and services Ports (decimal) Remote Server 5900 Management over IP Viewer UPDATE.EXE 12296 HTTP Telnet SV1105IPPCI Product Guide... -
Page 19: Completing The Setup Process
In the browser Address bar, type the Remote Server Management over IP card IP address and click Enter. From the Connect to dialog, type the default user name admin and default password password (case-sensitive) and click OK. SV1105IPPCI Product Guide... - Page 20 From the Welcome web page, you can click the Device Configuration tab, set the current time, date, time zone, and change the host name or Remote Server Management over IP card name. Click Apply Settings to save any changes. SV1105IPPCI Product Guide...
- Page 21 Make sure you write down or store the admin user password and keep it in a secure location. NO USER RECOVERY PROCESS IS AVAILABLE TO RESTORE THE ADMIN PASSWORD. If you do not have this password, you will need to contact Support to arrange a factory reset. SV1105IPPCI Product Guide...
-
Page 22: Launching The Remote Server Management Over Ip Viewer
From any of the Remote Server Management over IP Web Server web pages, click Launch Viewer. NOTE For Microsoft Internet Explorer 5.5 SP2, 6.0, and 6.1, the IP address is automatically passed through to the Remote Server Management over IP card. SV1105IPPCI Product Guide... - Page 23 From the Remote Server Management over IP Viewer screen, you can now view the host computer, control its keyboard and mouse, and execute tasks on it. (For more information on viewing and controlling computers, see Chapter 4 – Remote Server Management over IP Management, Using the Remote Server Management over IP Viewer.) SV1105IPPCI Product Guide...
-
Page 24: Chapter 3 - Advanced Configuration
Log in to the Web Server as admin or as a user with Administrator rights. (For information on assigning access levels, see Chapter 3 – Advanced Configuration, Configuring users and access.) From the Device Configuration tab, click Set Time. From the Set Time dialog, enter the current time, date, time zone and click Apply Settings. SV1105IPPCI Product Guide... -
Page 25: Changing The Host Name Or Card Name
Configuring users and access section later in this chapter.) From the Device Configuration tab, enter the new IP address, gateway, and subnet mask information, click Apply Settings, and log in to the new IP address. SV1105IPPCI Product Guide... - Page 26 From the User Administration web page, click Add user. From the Add user dialog, type a user ID and description. Enter/verify a password for the new user. Click the user access level you want to assign. Click Apply Settings to save the new information. SV1105IPPCI Product Guide...
-
Page 27: Configuring Security
When you specify either Encryption Level 1 or Encryption Level 2, the Web Server is automatically set to SSL connections only. If you want to disable the SSL only setting, you will need to change the Remote Session Encryption back to Level 0. SV1105IPPCI Product Guide... -
Page 28: Working With Log Files
Log in to the Web Server as admin or as a user with Administrator rights. (For information on assigning access levels, see Chapter 3 – Advanced Configuration, Configuring users and access.) From the Security tab, click View Logs. SV1105IPPCI Product Guide... -
Page 29: Refreshing The Log File
Clear Log flushes all log file data from the System Log window and starts a new log of activity occurring on the Remote Server Management over IP card. Log files are overwritten after 400 KB of data is logged. SV1105IPPCI Product Guide... -
Page 30: Printing, Saving, Or Emailing The Log File
Replace the default server certification with a new certificate by typing the following FTP commands: put <new_certificate.pem> /flash/inc/server.pem put <new_key.pem> /flash/inc/cakey.pem put <certificate_authority_certificate.pem> /flash/inc/cacert.pem Cycle power to the Remote Server Management over IP card. The new server certificate is now in place. SV1105IPPCI Product Guide... -
Page 31: Chapter 4 - Remote Server Management Over Ip Management
The Remote Server Management over IP Viewer enables users to view and control a host computer. The tables below outline features and commands you can execute remotely, using the Remote Server Management over IP Viewer dropdown menus. SV1105IPPCI Product Guide... -
Page 32: Understanding The Remote Server Management Over Ip Viewer Shortcuts
(For more information, see the Overview chapter, Requirements and also Appendix A – Troubleshooting, Resolving keyboard and mouse problems.) Show frames / sec Displays current bandwidth usage in Remote Server and network bits / sec Management over IP Viewer status bar. SV1105IPPCI Product Guide... -
Page 33: Understanding The Remote Server Management Over Ip Viewer Connection Options
OS environments. NOTE The Host OS options only function for a client computer with a USB keyboard or mouse. They have no effect on a client computer with a PS2 keyboard or mouse. SV1105IPPCI Product Guide... -
Page 34: Maintaining Your Remote Server Management Over Ip Environment
Log in to the Web Server as admin or as a user with Administrator rights. (For information on assigning access levels, see Chapter 3 – Advanced Configuration, Configuring users and access.) Click the Device Configuration tab and note the information listed in the Firmware Version section, located below the IP Address area. SV1105IPPCI Product Guide... - Page 35 To use the Update utility From the StarTech.com website, download the latest Remote Server Management over IP card firmware image and Update utility (UPDATE.EXE) to a client computer. Verify the IP address of the Remote Server Management over IP card you want to update and close all open Remote Server Management over IP sessions (e.g., viewing or controlling) on that device.
-
Page 36: Using Vps Find To Locate Other Remote Server Management Over Ip Cards
The VPS Find utility searches for Remote Server Management over IP cards installed in a network segment. To use VPS Find From the StarTech.com website, download the latest VPS Find utility to a client computer. From the client computer, launch VPSFIND.EXE. -
Page 37: Appendix A - Troubleshooting
Overview chapter, Requirements section and also see Chapter 4 – Remote Server Management over IP Management, Understanding Remote Server Management over IP Viewer settings.) Verify that the host computer is set to a supported video resolution. (For information on supported video settings, • see the Overview chapter, Requirements section.) SV1105IPPCI Product Guide... -
Page 38: Resolving Video Problems
Lower the color setting: from the Remote Server Management over IP Viewer Connection dropdown, click Low • Color. (For more information on Remote Server Management over IP Viewer menu options, see Chapter 4 – Remote Server Management over IP Management, Using the Remote Server Management over IP Viewer.) SV1105IPPCI Product Guide... -
Page 39: Viewing System Configuration Data For A Remote Server Management Over Ip Card
WARNING! Working with system configuration information is an advanced tool. To help understand the data and utilize the configuration commands, contact Support or send an email request to StarTech.com. Using a Telnet client The steps below outline how to use a Telnet client to view system configuration information for a Remote Server Management over IP card. -
Page 40: Using An Ftp Client
<Remote Server Management over IP card IP address> From the FTP prompt, log in to the Remote Server Management over IP card as user Admin. You can now access the standard FTP commands and execute them on the Remote Server Management over IP card. SV1105IPPCI Product Guide... -
Page 41: Obtaining Additional Product Support
The latest Remote Server Management over IP card files, product information, and online Product Guide are available for download from the StarTech.com website. Current release notes, Remote Server Management over IP card firmware images, documentation updates, and tools are posted on a regular basis. -
Page 42: Appendix B - Technical Specifications
Stop bits: 1 No Parity Electrical External power supply: • External +12v DC @ 500 mA Connector polarity: External ring negative Internal ring +12v DC Internal power consumption: 3W from PCI bus Mechanical PCI compatible board • SV1105IPPCI Product Guide... -
Page 43: Software Specifications
This device complies with part 15 of the FCC Rules and also with European standard EN55022. Operation is subject to the following conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation. SV1105IPPCI Product Guide... -
Page 44: Glossary
Client Viewer used to monitor and control a session on a host computer. Management over IP Viewer Remote Server Web interface used to change Remote Server Management over IP card Management over IP configuration settings and also to launch the Remote Server Management Web Server over IP Viewer. SV1105IPPCI Product Guide...
