- Page 1 100m USB 3.2 Extender U3EX100 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................2 Panel .............................. 3 Transmitter......................... 3 Receiver..........................4 Installation and Application................... 5 Brackets Installation ......................... 5 Application ..........................5 Specification ......................6 Warranty ......................... 7 www.avaccess.com info@avaccess.com... -
Page 3: Introduction
Introduction Overview U3EX100 is a new generation of USB 3.2 & USB 3.0 extender. It supports USB 3.2 Gen 1 standard with up to 5Gbit/s USB data transmission rate, and is backward compatible with USB 3.0, USB 2.0, and USB 1.1 specifications. -
Page 4: Panel

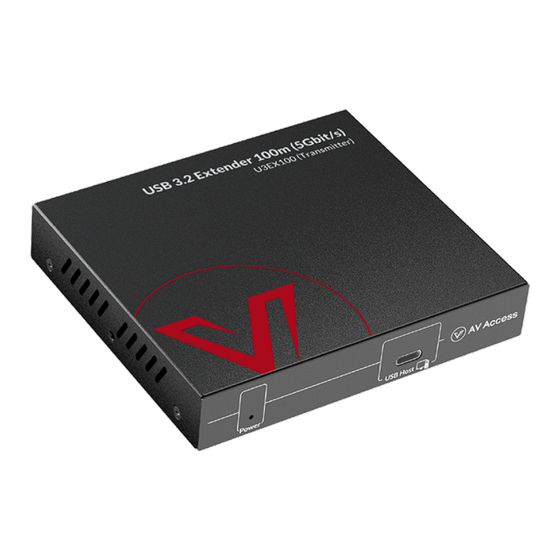

Introduction Panel Transmitter Front Panel Name Description On: The transmitter is powered on. POWER LED Off: The transmitter is powered off. Type-C port. Connect to a USB-C laptop. USB Host Please use the cable recommended: USB Type-C to Type-C cable (USB 3.2 or above). Rear Panel Name Description... -
Page 5: Receiver
Introduction Receiver Front Panel Name Description On: The receiver is powered on. Power LED Off: The receiver is powered off. USB 3.0 USB Type-A ports. Connect to USB devices. Rear Panel Name Description 12V DC power input. Connect to the provided power DC 12V to supply power for the receiver adapter... -
Page 6: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the device is disconnected from the power source. Position and install the mounting brackets with the screws provided in the package, as shown in the figure. Repeat the step 1 for the other side of the unit. Mount and secure the transmitter/receiver to a surface or a suitable location with the mounting screws. -
Page 7: Specification
Specification Specification Technical Transmitter: 1 x USB Host (USB Type-C); 1 X UTP Out; 1 x Update (Micro-USB) Input/Output Port Receiver: 4 x USB DEVICE (USB Type-A); 1 X UTP In; 1 x DC 12V IN USB 3.2 Gen1, and backward compatible with USB USB Standard 3.0, USB 2.0, and USB 1.1 standards Data Rate... -
Page 8: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
