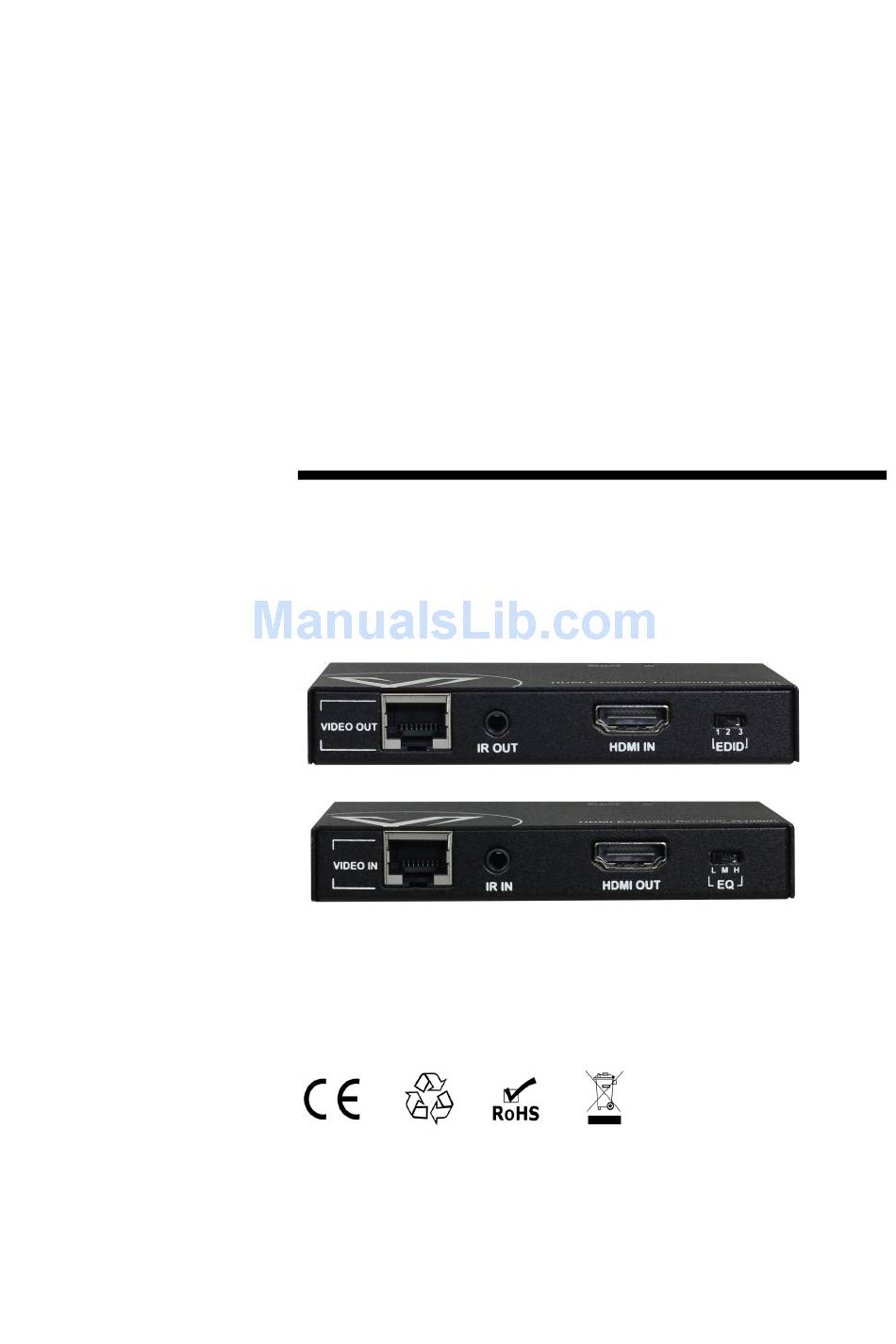

Page 1: User Manual
User Manual AVA-EX11-40TX AVA-EX11-40RX HDMI over Single CatX Cable Extender Version: V1.0.1... -
Page 2: Table Of Contents
Table of Contents Introduction ....................2 Overview ....................2 Features ....................3 Package Contents ..................4 Specifications .................... 5 Panel Description ..................7 Transmitter ..................7 Receiver .................... 9 Hardware Installation ................... 11 EDID and EQ Management ................13 EDID Management ................. 13 EQ Management .................. -
Page 3: Introduction
Introduction Overview AVA-EX11-40TX/RX is a pair of HDMI extender used to extend Full HD 1080p signals up to 131 feet (40 meters) over a single CatX cable. The transmitter supports EDID management, which offers multiple EDID options for various resolutions output. And the receiver supports EQ management, which provides multiple EQ options for various applications and equalizes the signals for better viewing effects. -
Page 4: Features
Features Ultra-slim appearance, space saving and easy-to-install Supports Full HD 1080p signal transmission distance up to 131 feet (40 meters) via a single CatX cable, reach to 262 feet (80 meters) under special condition Single CatX cable solution, including the transmission of HD ... -
Page 5: Package Contents
Package Contents 1 x Transmitter AVA-EX11-40TX 1 x Receiver AVA-EX11-40RX 2 x 5V USB Power Lead 4 x Mounting Ear 1 x User Manual ... -
Page 6: Specifications
Specifications Technical 6.75Gbps (Maximum) Data Range 1080p up to 40m/131ft Maximum Distance (It can reach to 80m/262ft under special conditions) Transmitter 1 x Video OUT, 1 x HDMI IN, 1 x IR OUT I/O Connections Receiver 1 x Video IN, 1 x HDMI OUT, 1 x IR IN Power Supply 5VDC, 1A Transmitter: 3.65W... - Page 7 Technical negative voltage) Operating 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing Temperature Storage -4°F ~ 140°F (-20°C ~ 70°C) 10% ~ 90%, non-condensing Temperature General Product Dimension 100 mm × 15.8 mm × 63.8 mm (W x H x D) / 3.94'' x 0.62'' x 2.51'' (each) Weight 0.14 kg (each)
-
Page 8: Panel Description

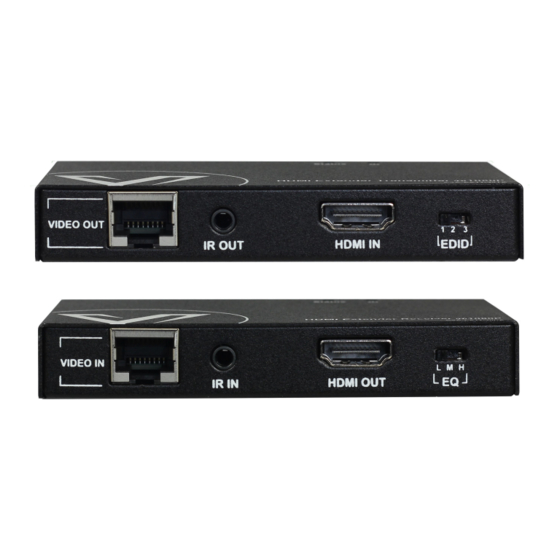

Panel Description Transmitter Top Panel ID Indicator Description On: Transmitter and Receiver are linked. Status Off: Transmitter and Receiver are not linked. On: Transmitter is powered on. Power Off: Transmitter is powered off. - Page 9 Front Panel ID Connector/Switch Description VIDEO OUT Connects to the Receiver. IR OUT Connects to the supplied IR Emitter. HDMI IN Connects to HDMI source devices. Manage communication between connected devices and transmission over EDID DIP Switch cable distances Rear Panel ID Connector Description DC 5V...
-
Page 10: Receiver
Receiver Top Panel Indicator Description On: Transmitter and Receiver are linked. Status Off: Transmitter and Receiver are not linked. On: Receiver is powered on. Power Off: Receiver is powered off. - Page 11 Front Panel ID Connector/Switch Description Connects to the Transmitter. VIDEO IN Connects to the supplied IR receiver IR IN (30KHz -50KHz) HDMI OUT Connects to HDMI display device. Manage communication between connected devices and transmission over cable distances. Rear Panel ID Connector Description DC 5V...
-
Page 12: Hardware Installation
Hardware Installation Connect an HDMI source (such as a Blu-Ray, games console, media server etc.) to Transmitter using quality HDMI cables. Connect a good quality, well terminated Cat5e/6 cable between the video output of the Transmitter and video input of Receiver. Note: 40m/131ft is the recommended transmission distance for this model and denotes perfect transmission conditions –... -
Page 14: Edid And Eq Management
EDID and EQ Management EDID Management The following table lists the EDID information built in the device. Position Functions 1 (Default) EDID Copy Mode (Copy EDID from display) 1080i, 2CH 1080p, 2CH Note: Repower the transmitter for the changes to take effect. EQ Management The following table lists the EQ information built in the device. -
Page 15: Troubleshooting
Troubleshooting 1. Why the display connected to the Receiver shows no picture? Check that all the devices are powered on and working properly. Check that all the cables are qualified and connected properly Check that the display works properly, and that the source device ... - Page 16 AV Access Technology Co., Ltd. B4, B block Tianrui Industry Park, Xinhe Fuyuan Rd, Fuyong St., Baoan District, Shenzhen, China America, Africa Sales & Market Ms. Suze Leung suze@avaccess.com Europe, Asia, Middle East Sales & Market Ms. Jessica Lee jessica@avaccess.com...
