Summary of Contents for AV Access U2EX60

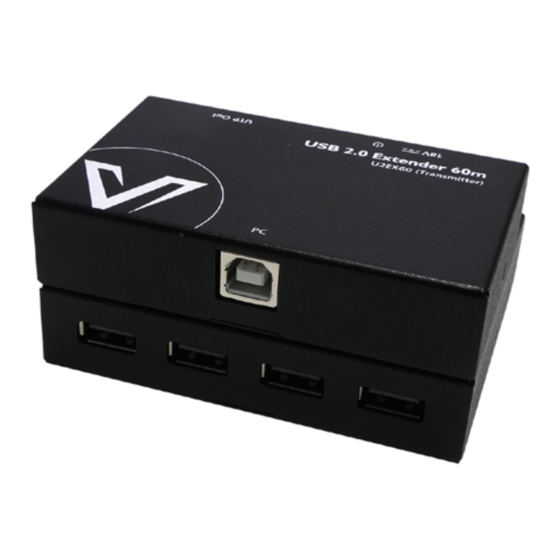

- Page 1 60m USB 2.0 Extender U2EX60 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................2 Overview ........................2 Features ........................2 Package Contents ....................2 Panel .......................... 3 Transmitter ...................... 3 Receiver ......................3 Installation and Application ............... 4 Bracket Installation ....................4 Application ......................4 Specification ..................6 Warranty .................... -
Page 3: Introduction
Supports all major operating systems, including Windows, Mac OS, Linux, etc. Package Contents Before you start the installation of the product, please check the package contents: U2EX60 (Transmitter) x 1 U2EX60 (Receiver) x 1 DC 18V Power Adapter x 1 ... -
Page 4: Panel
Introduction Panel Transmitter Name Description Connect to a PC using the USB-A to USB-B cable provided. Connect to the power adapter provided. Note: The power-on transmitter can power receiver through PoC, no power adapter required at receiver. On: The device is powered on. Power LED ... -
Page 5: Installation And Application
Installation and Application Name Description 4 x USB-A ports. Connect to USB devices such as USB Device keyboard, mouse, MIC, camera, etc. Note: The four ports share 3A current. On: The device is powered on. Power LED Off: The device is powered off. UTP In Connect receiver to transmitter using a Cat X cable. - Page 6 Installation and Application Application 2 – Personal entertainment system Application 3 – Surveillance system www.avaccess.com info@avaccess.com...
-
Page 7: Specification
Specification Specification Technical TX: 1 x DC 18V, 1 x USB Type-B, 1 x UTP Out Input/Output Port RX: 4 x USB Type-A, 1 x UTP In General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model:... -
Page 8: Warranty
2. The warranty has expired. 3. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
