Page 1: User Manual

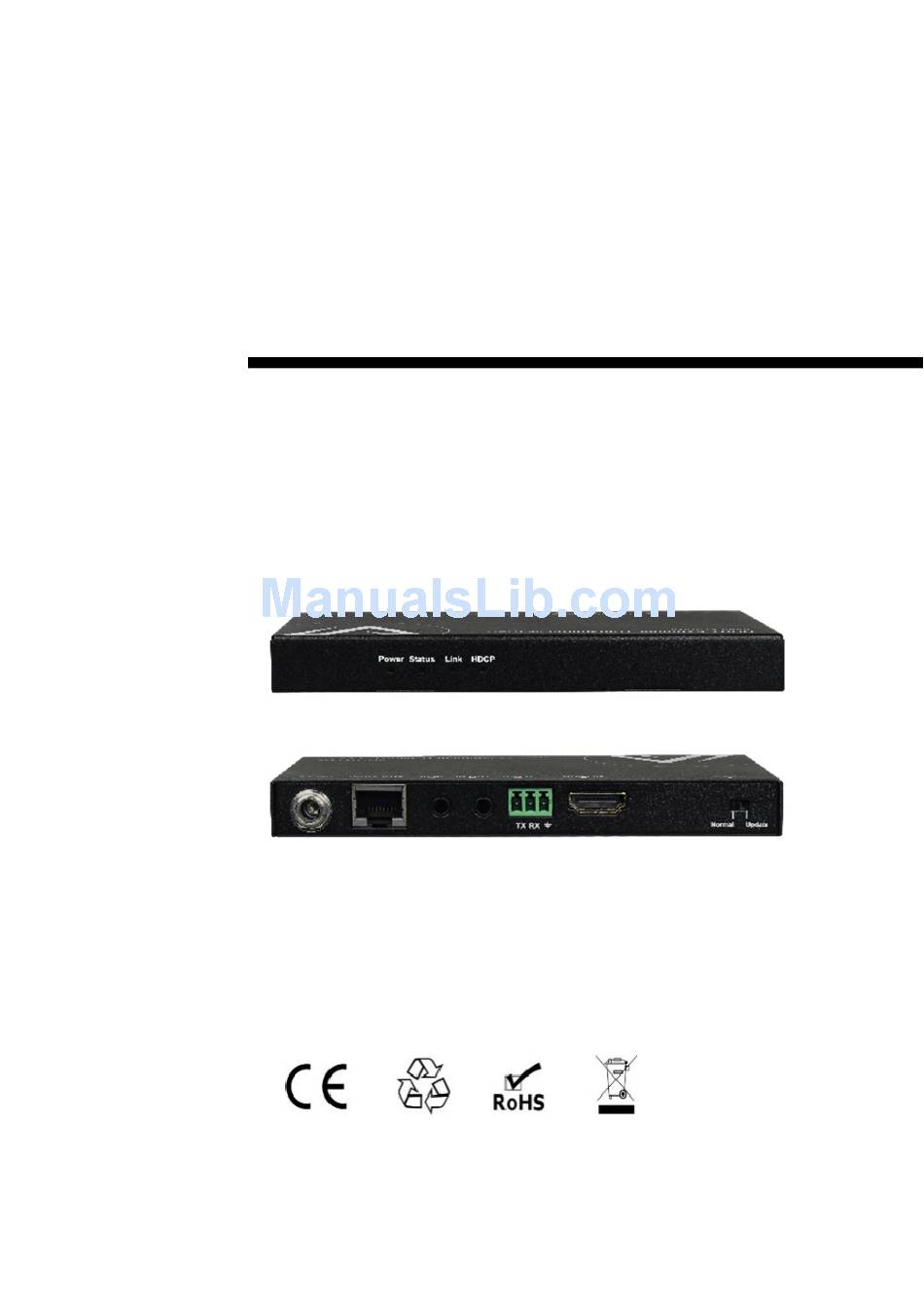

User Manual AVA-EX11-70TX AVA-EX11-70RX 70m HDMI Extender Version: V1.0.2... -
Page 2: Table Of Contents
Table of Contents Introduction ............. 2 Overview ............2 Features ............3 Package Contents ..........4 Specifications ............ 5 Panel ............... 10 Transmitter ..........10 Receiver ........... 13 Hardware Installation..........16 IR and RS232 ............ -
Page 3: Introduction
Introduction Overview AVA-EX11-70TX (Transmitter for short) and AVA-EX11-70RX (Receiver for short) is a pair of slim HDMI extenders designed to extend HDMI signals up to 230 feet (70 meters) via a single CatX cable. The Transmitter and Receiver just need a single power supply to power both devices via its bi-directional PoE function. -
Page 4: Features
Features Slim appearance and space saving Supports 4K signal transmission distance up to 131feet (40 meters), full HD 1080p signal transmission distance up to 230 feet(70 meters) via a single Cat X cable Supports bi-directional PoE Transfer bi-directional infrared control ... -
Page 5: Package Contents
Package Contents 1 x Transmitter AVA-EX11-70TX 1 x Receiver AVA-EX11-70RX 1 x 18V 1A DC Power Supply 2 x Phoenix Male Connector (3.5 mm, 3 pin) 4 x Mounting Ear 2 x IR Emitter ... -
Page 6: Specifications
Specifications Technical 4K up to 40m/131ft Maximum Distance 1080p up to 70m/230ft Transmitter 1 x HDMI IN, 1 x HDBT OUT, 1 x IR IN, 1 x IR OUT Connections Receiver 1 x HDMI OUT, 1 X HDBT IN, 1 x IR IN, 1 x IR OUT Power DC 18V 1A Supply... - Page 7 Technical Transmitter Receiver Transmitter:5.5W both Receiver: 7.6W connected to power Input Video 0.5-1.2 volts p-p Signal 4096 x 2160@30Hz, Input 3840x2160@30Hz, 1080p, Resolution 1080i, 720p, 576p, 480p, Support 576i, 480i 4096x2160@30Hz, Output 3840x2160@30Hz, 1080p, Resolution 1080i, 720p, 576p, 480p, 576i, Support 480i Wavelength: 940nm...
- Page 8 Technical Video 100Ω Impedance Maximum 297MHz Pixel Clock Human-body model: ±8 kV (Air-gap discharge) Protection ±4 kV (Contact discharge) 61000-4-4 (EFT) Surge (5/50ns); 61000-4-5 Protection (Lightning) 25A (8/20μs) Operating 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing Temperature Storage -4°F ~140°F (-20°C ~70°C)
- Page 9 Cable Specifications It's recommended that straight-through Ethernet cables of T568B be required. Cable Type Range Supported Video 1080p, 60 Hz36 60 m 1080p 60 Hz 48 CAT5e/CAT6 35 m 1080p 60 Hz 3D 4K2K 30Hz 1080p, 60 Hz36 70 m 1080p 60 Hz 48 CAT6a/CAT7 40 m...
- Page 10 General Product 135 mm x 14 mm x 77 mm / Dimension 5.3'' x 0.6'' x 3.0'' (each) (W x H x D) 220g (Transmitter), Weight 240g (Receiver) Certification CE, FCC, RoHS...
-
Page 11: Panel
Panel Transmitter Front Panel Name Description Connects to a power supply. If Transmitter is connected to a Power power, Receiver is adapter free. - Page 12 Name Description HDBT Connects to the Receiver via a CatX cable. Connects to the supplied IR IR IN receiver (30KHz-50KHz). IR OUT Connects to the IR emitter. Update firmware or pass- RS232 through. HDMI Connects to HDMI source. Normal: RS232 signals can be transmitted and Transmitter cannot be updated.
-
Page 13: Rear Panel
Rear Panel Name Description On: It is powered on. Power Off: It is powered off. Blinking: It works properly. Status Off: It does not work properly. On: Linked to Receiver. Blinking: Connection exception. Link Off: No link. On: HDCP video is being transmitted. -
Page 14: Receiver
Receiver Front Panel Name Description Connects to a power supply. Power If Receiver is connected to a power, Transmitter is adapter free. HDBT Connects to the Transmitter via a CatX cable. - Page 15 Name Description Connects to the supplied IR receiver IR IN (30KHz-50KHz). Connects to the supplied IR emitter. RS232 Update firmware or pass-through. HDMI Connects to HDMI display device. Normal: RS232 signals can be transmitted and Receiver cannot be updated. Mode Update: RS232 signals cannot be transmitted and Receiver can be...
- Page 16 Rear Panel Name Description On: It is powered on. Power Off: It is powered off. Blinking: It works properly. Status Off: It does not work properly. On: Linked to Transmitter. Blinking: Connection exception. Link Off: No link. On: HDCP video is being transmitted.
-
Page 17: Hardware Installation
Hardware Installation Connect an HDMI source (such as a Blu- Ray, games console, media server etc.) to Transmitter using quality HDMI cables. Connect a good quality, well terminated Cat5e/6 cable of no more than 70m/230ft in length between the HDBT output of the Transmitter and HDBT input of Receiver. - Page 18 Connect IR emitters from the IR OUT ports of Transmitter and Receiver and firmly attach the IR emitter eye directly over the infrared receiving sensors of the source and display device to be controlled. Location of the emitter eye on each device may need to be adjusted later to achieve best IR performance.
-
Page 20: Ir And Rs232
IR and RS232 IR Control IR pass-through function allows you to control the source from the sink's location or control the sink from source's location. Scenario 1 In this case, you can control the TV on Transmitter side. - Page 21 TV remote HDMI IR RX Transmitter Cat X Cable Receiver HDMI IR TX...
-
Page 22: Scenario 2
Scenario 2 In this case, you can control the Blu-Ray on Receiver side. HDMI IR TX Transmitter Cat X Cable Receiver IR RX HDMI DVD remote... -
Page 23: Rs232 Control
RS232 Control Connect RS232 port to a computer to update firmware or a RS232 device to communicate with another RS232 device on the other extender's side via a CAT5e/CAT6 cable. Update Update the Transmitter: switch "Mode" in the front panel to "Update". RS232 Transmitter... - Page 24 Update the receiver: switch "Mode" in the front panel to "Update". RS232 Receiver...
-
Page 25: Pass-Through
Pass-through Note: Please switch "Mode" in the front panel to "Normal" mode on both devices. RS232 device RS232 Transmitter Cat X Cable Receiver RS232 RS232 device... -
Page 26: Troubleshooting
Troubleshooting 1. Why the display connected to the Receiver shows no picture? Check that all the devices are powered on and working properly. Check that all the cables are qualified and connected properly Check that the display works properly, ... - Page 27 2. Why the display connected to Receiver displays snow or mosaic? Check that all the cables are qualified and connected properly. Check that the source input device has no problems, such as snow, mosaic or a damaged disc. If so, replace it with another normal input source.
- Page 28 AV Access Technology Co., Ltd. B4, B block Tianrui Industry Park, Xinhe Fuyuan Rd, Fuyong St., Baoan District, Shenzhen, China America, Africa Sales & Market Ms. Suze Leung suze@avaccess.com Europe, Asia, Middle East Sales & Market Ms. Jessica Lee jessica@avaccess.com...
