Summary of Contents for AV Access 4KEX60-H2
- Page 1 4KEX60-H2 4K@60 444 HDMI Extender User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................2 Panel ............................3 Installation and Application................. 5 Brackets Installation ......................5 Application ..........................6 Specification ......................7 Trouble Shooting ....................8 Warranty ....................... 9 www.avaccess.com services@avaccess.com... -
Page 6: Introduction

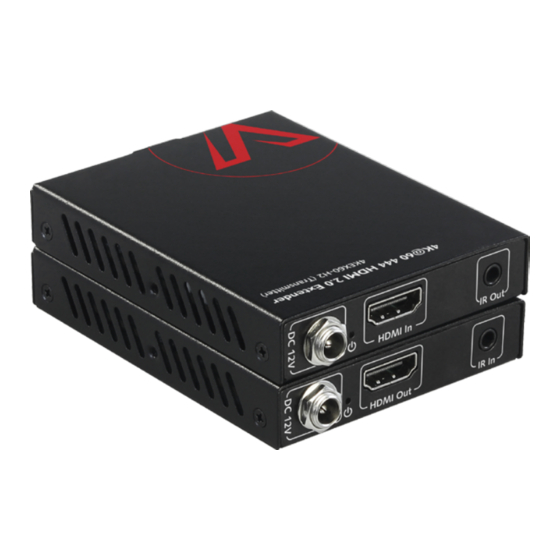

Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual carefully. 4KEX60-H2 is a slim transmitter receiver set with HDCP 2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4 8bit, and transmits UHD video, HD audio up to 35m/115ft over a Cat 6 or above cable. -
Page 7: Panel
Introduction IR Emitter x 1 IR Receiver x 1 Mounting Brackets (with Screws) x 4 User Manual x 1 Panel Transmitter Name Description Status LED Lights when there’s HDMI input. Connect transmitter to receiver via a Cat 5e/6/7 UTP Out cable. - Page 8 Introduction Receiver Name Description Status LED Lights when there’s HDMI output. Connect receiver to transmitter via a Cat 5e/6/7 UTP In cable. DC 12V Connect to DC 12V power adapter provided. Power LED Lights when the device has power. HDMI Out Connect to an HDMI display.
-
Page 9: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the kit is disconnected from the power source. Steps to install the device in a suitable location: Attach the installation bracket to the enclosure using the screws that were provided in the package separately. -
Page 10: Application
Installation and Application Application Remote Display Blu-ray Player HDMI IN IR Emitter HDMI OUT IR Receiver Transmitter Receiver CATX Note: Connect a broadband IR receiver to IR In and an IR emitter to IR Out. www.avaccess.com services@avaccess.com... -
Page 11: Specification
Specification Specification Video Input/Output Signal Type HDMI 2.0b, HDCP 2.2, 3D Up to 4096x2160@60Hz, including Input/Output Resolution Supported 4K@60Hz/4K@30Hz/1080P/1080i/720P Maximum Data Rate HDMI: 18Gbps Maximum Pixel Clock 600MHz Audio Fully supports audio formats in HDMI 2.0 specification, Audio format supported including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X General... -
Page 12: Trouble Shooting
Trouble Shooting Trouble Shooting No Power Ensure the power is on. Ensure you use the power adapter provided in the package. No Picture or Video Flash Ensure all devices are on, and all cables are qualified and connected ... -
Page 13: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.0...
