- Page 1 EC3500 Ruggedized Embedded System with NVIDIA® Jetson AGX Orin™ module User’s Manual Document Version 1.0 (Jun. 2024)
- Page 2 IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
-
Page 3: Compliance
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) • Cadmium (Cd) • Hexavalent chromium (Cr6+) • Polybrominated biphenyls (PBB) • Polybrominated diphenyl ether (PBDE) EC3500 User’s Manual... - Page 4 EC3500 User’s Manual...
-
Page 5: Important Safety Information
CAUTION A Lithium-type battery may be provided for uninterrupted backup or emergency power. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries by observing local regulations. EC3500 User’s Manual... -
Page 6: Warranty Policy
The arrangement of the peripherals • Software used (such as OS and application software) 3. If repair service is required, please download the RMA form at http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and contact your distributor or sales representative. EC3500 User’s Manual... -
Page 7: Table Of Contents
Mounting Installation ................9 2.1.2 HDMI Type-A Connector ..............10 2.1.3 DC Power Input Connector ............10 2.1.4 Dual USB 3.2 Gen1 Type-A Connector ........11 Chapter 3 Software Setup ................17 Software/BSP Installation ................18 Recovery Mode ....................18 EC3500 User’s Manual... -
Page 8: Chapter 1 General Information
Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Specifications • Product View • Dimensions... -
Page 9: Introduction
General Information 1.1 Introduction EC3500 is NVIDIA Jetson AGX Orin 64GB module delivers up to 275 TOPS of AI performance with power configurable between 15W and 60W. 1.2 Features • Supports NVIDIA® Jetson AGX Orin™ 32GB/64GB module • Wide Power Input Range 9 to 36VDC •... -
Page 10: Specifications
EC3500-32: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 CPU Type EC3500-64: 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 • System memory: 32/64 GB 256-bit LPDDR5 204.8 Memory • 64 GB eMMC 5.1 Stroage •... - Page 11 General Information Environment Operating 0 ~ 50 °C (32 ~ 140 °F) Temperature Relative 10 ~ 90 %, non-condensing Humidity All specifications are subject to change without prior notice. EC3500 User’s Manual...
-
Page 12: Product View

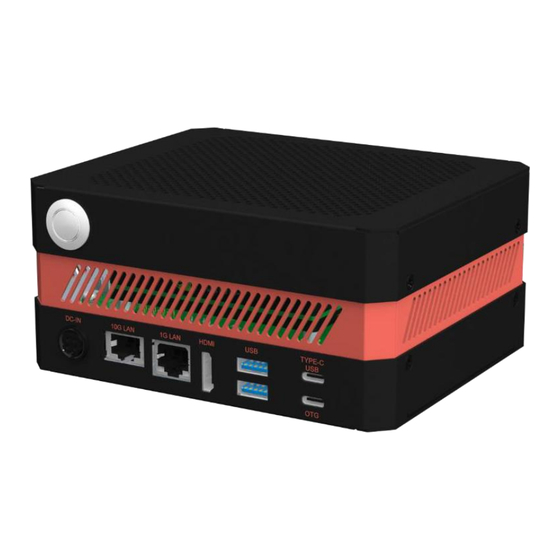

General Information 1.5 Product View I/O View No. Name No. Name Power On/Off Button USB 2.0 Type-C (OTG) DC-in Jack Antenna Holes 10G GbE LAN Port SIM Card Slot GbE LAN Port MicroSD Slot EC3500 User’s Manual... - Page 13 General Information HDMI 2.1 Type A Recovery button USB 3.2 Gen1 Type-A Reset button USB 3.2 Gen2 Type-C EC3500 User’s Manual...
-
Page 14: Dimensions
General Information DIN Rail Mounting View (Optional) 1.6 Dimensions Unit: mm EC3500 User’s Manual... -
Page 15: Chapter 2 Hardware Configuration
Chapter 2 Hardware Configuration This section contains general information about: • Installations • Jumper and connectors... -
Page 16: Installations
Wall Mounting Installation 1. Turn the device upside down. Attach the wall-mount kit to the device using the supplied 4 screws. 2. Prepare at least 4 screws (M3) to install the device on the wall. EC3500 User’s Manual... -
Page 17: Hdmi Type-A Connector
Hardware Configuration 2.1.2 HDMI Type-A Connector Item Description Location CN8 Type HDMI Type-A female connector Pinout Please refer to HDMI Type-A Standard 2.1.3 DC Power Input Connector ➊ ➋ ➌ ➍ EC3500 User’s Manual... -
Page 18: Dual Usb 3.2 Gen1 Type-A Connector
4-Pin Male DC Power Connector Pinout Please refer to DC Jack Standard Signal Name Signal Name 2.1.4 Dual USB 3.2 Gen1 Type-A Connector Item Description CN11 Location Type Type-A USB connector Pinout Please refer to USB Standard EC3500 User’s Manual... - Page 19 2.1.7 OTG Type-C / USB 3.2 Gen2 Type-C #➊ #➋ Item Description CN10 Location Type Dual USB TYPE-C connector Pinout Please refer to USB standard Notes #1 OTG Type-C Port #2 USB 3.2 Gen2 Type-C 2.1.8 Gigabit Ethernet Connector EC3500 User’s Manual...
- Page 20 2.1.9 10 Gigabit Ethernet Connector Item Description Location Type RJ-45 connector Pinout Please refer to Ethernet standard Notes LED Static ON: LAN Link is active. LED Blinking: Data is being transmitted. LED Static OFF: LAN Link is inactive EC3500 User’s Manual...
- Page 21 Hardware Configuration 2.1.10 Reset Button Item Description Location Type Tact switch Notes To trigger system reset action 2.1.11 Recovery Button EC3500 User’s Manual...
- Page 22 Hardware Configuration Item Description Location Type Tact switch Notes To trigger system reset action 2.1.12 Micro SD Card Slot Item Description Location Type Push-Push Micro SD card holder EC3500 User’s Manual...
- Page 23 Hardware Configuration 2.1.13 Micro SIM Card Socket Item Description Location Type Push-Push SIM card socket EC3500 User’s Manual...
-
Page 24: Chapter 3 Software Setup
Chapter 3 Software Setup This chapter introduces the following setup on the device: (for advanced users only) • Software/BSP Installation • Recovery Mode... -
Page 25: Software/Bsp Installation
BSP. Please visit the IBASE website or contact with IBASE FAE for installation guides, BSPs and technical tips. 3.2 Recovery Mode The OTG Type-C port of EC3500 can be connected to another host device (Linux PC running NVIDIA JetpackTM) to run recovery process for re-flashing BSP. - Page 26 3.3.2 Hardware connection ATTENTION: Jetson Orin module is not hot-pluggable. Before installing or removing the module, the main power supply (to Power connector, CN12) must be disconnected and adequate time allowed for the various power rails to fully discharge. For the initial setup, users will need to connect LAN port, keyboard and mouse via USB interface, HDMI interface, and power connector.
