- Page 1 IB811LF Series ® ® ® Intel Pentium / Celeron Atom™ x7 / x5 SoC 3.5” Disk-Size SBC User’s Manual Version 3.0 (April 2022)
- Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
- Page 3 0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) • Cadmium (Cd) • Hexavalent chromium (Cr6+) • Polybrominated biphenyls (PBB) • Polybrominated diphenyl ether (PBDE) IB811LF Series User’s Manual...
- Page 4 Danger of explosion if the internal lithium-ion battery is replaced by an incorrect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions or recycle them at a local recycling facility or battery collection point. IB811LF Series User’s Manual...
- Page 5 Software in use (such as OS and application software, including the version numbers) If repair service is required, you can download the RMA form at http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and contact your distributor or sales representative. IB811LF Series User’s Manual...
-
Page 7: Table Of Contents
Table of Contents Chapter 1 General Information ..........3 Introduction ..................4 Features ....................5 Packing List ..................6 Optional Accessories ................6 Specifications ..................7 Block Diagram ................... 10 Product View ..................11 Dimensions ..................13 Chapter 2 Hardware Configuration ........14 Essential Installations Before You Begin ........... - Page 8 Save & Exit Settings ................74 Appendix ..................75 I/O Port Address Map ................ 76 Interrupt Request Lines (IRQ) ............79 Watchdog Timer Configuration ............81 Onboard Connector Reference Types ..........85 Peripheral Device Power Control ............86 IB811LF Series User’s Manual...
-
Page 9: Chapter 1 General Information
Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Block Diagram • Specifications • Product View • Board Dimensions... -
Page 10: Introduction
DisplayPort and HDMI ports and onboard headers for 24-bit dual channel LVDS interfaces. The SBC features ambient operating temperature ranging from 0°C ~ 60°C, and -40°C ~ 85 °C for models with wide temperature support. IB811LF IB811LF Series User’s Manual... -
Page 11: Features
2 x GbE LAN, 4 x USB 3.0, 2 x USB 2.0, 4 x COM, 2 x SATA III, 1 x Mini PCIe slot (full-size), 1 x M.2 (B-key) • Configurable watchdog timer and digital I/O, mSATA, EuP/ErP • Wide temperature supported by IB811LF-I50 and IB811LF-I40 and IB811LF-I30 IB811LF Series User’s Manual... -
Page 12: Packing List
Cable Kit (IB76A-1) SATA cable (SATA-53A) Power cable (PW87) COM ports cable (PK1H) USB cable (USB29) • Heatsink for IB811LF-I50/IB811LF-I40/IB811LF-I30 (HSIB811-A) • Heatsink for IB811LF-420 / IB811LF-335 (HSIB811-B) • Audio cable (Audio-18) • COM1 RJ50 cable (PK105) IB811LF Series User’s Manual... -
Page 13: Specifications
Audio Codec Realtek ALC888S codec & Controller Speaker amplifier TI TPA2012D2 Power 9~36V DC-In (jumper-selectable ATX / AT power mode) Requirement Watchdog Yes (256 segments, 0, 1, 2…255 sec / min) Timer BIOS AMI BIOS H/W Monitor IB811LF Series User’s Manual... - Page 14 Onboard audio connector for Line-In, Line-Out, and Audio Mic-In Digital IO 4-In & 4-Out • 1 x Mini PCIe slot (full-size) with USB and mSATA Expansion • 1 x M.2 (B key) 3042 Slot with PCIe (x1), USB and Slots SATA IB811LF Series User’s Manual...
- Page 15 • Storage: -40 ~ 110 °C • Storage: -40 ~ 110 ° (-40 ~ 230 °F) C (-40 ~ 230 °F) Relative 0 ~ 90 %, non-condensing at 60 °C Humidity All specifications are subject to change without prior notice. IB811LF Series User’s Manual...
-
Page 16: Block Diagram
Block Diagram IB811LF Series User’s Manual... -
Page 17: Product View

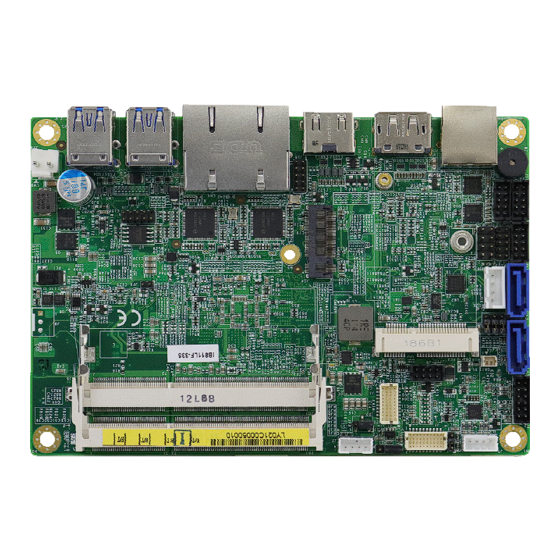

General Information Product View Top View Bottom View ＊The photos above are for reference only. Some minor components may differ. IB811LF Series User’s Manual... - Page 18 I/O View Name Name COM1 (RJ50) Port LAN Port DisplayPort USB 3.0 Port HDMI Port IB811LF Series User’s Manual...
-
Page 19: Dimensions
General Information Dimensions IB811LF Series User’s Manual... -
Page 20: Chapter 2 Hardware Configuration
CPU and the memory before using the product. The topics covered are: • Essential installations before you begin: CPU and the memory • Jumper and connector locations • Jumper settings and information of connectors IB811LF Series User’s Manual... -
Page 21: Essential Installations Before You Begin
Hardware Configuration Essential Installations Before You Begin Follow the instructions below to install the memory. 2.1.1 Installing the Memory To install the modules, locate the memory slot on the board and perform the following steps: Align the key of the memory module with that on the memory slot and insert the module slantwise. -
Page 22: Setting The Jumpers
When two pins of a jumper are encased in a jumper cap, this jumper is closed, i.e. turned On. When a jumper cap is removed from two jumper pins, this jumper is open, i.e. turned Off. IB811LF Series User’s Manual... -
Page 23: Jumper & Connector Locations
Hardware Configuration Jumper & Connector Locations IB811F Series User’s Manual... -
Page 24: Jumpers Quick Reference
LCD Panel Brightness Selection LVDS Planel Power Selection LVDS Brightness Control Selection ATX / AT Power Selection CMOS Data Clearance ME Register Clearance Factory Use Only 2.4.1 LVDS Panel Brightness Selection (JP1) Function Pin closed Illustration 3.3V (default) IB811LF Series User’s Manual... -
Page 25: Lvds Panel Power Selection (Jp2)
Hardware Configuration 2.4.2 LVDS Panel Power Selection (JP2) Function Pin closed Illustration 3.3V (default) 2.4.3 LVDS Brightness Control Selection (JP3) Function Pin closed Illustration For super I/O (default) For CPU IB811F Series User’s Manual... -
Page 26: Atx / At Power Selection (Jp5)
2.4.4 ATX / AT Power Selection (JP5) Function Pin closed Illustration (default) IB811LF Series User’s Manual... -
Page 27: Cmos Data Clearance (Jp6)
Hardware Configuration 2.4.5 CMOS Data Clearance (JP6) Function Pin closed Illustration Normal (default) Clear CMOS IB811F Series User’s Manual... -
Page 28: Me Register Clearance (Jp7)
2.4.6 ME Register Clearance (JP7) Function Pin closed Illustration Normal (default) Clear ME IB811LF Series User’s Manual... -
Page 29: Connectors Quick Reference
Hardware Configuration Connectors Quick Reference Function Connector Page CN2 (shared with M.2 B-key) SATA III Connector CN3 (shared with mSATA) LAN Ports CN5, CN6 USB 3.0 Ports (USB Power Control) Console COM1 (RJ50) RS-232/422/485 Port DisplayPort HDMI Port LCD Backlight Connector LVDS Connector J1, J3 Audio Connector... -
Page 30: Sata Iii Connectors (Cn2, Cn3)
2.5.1 SATA III Connectors (CN2, CN3) Remarks: CN2: shared with M.2 B-key CN3: shared with mSATA 2.5.2 LAN Ports (CN4) 2.5.3 USB 3.0 Ports (CN5, CN6) * USB Power Control IB811LF Series User’s Manual... -
Page 31: Console Com1 (Rj50) Rs-232/422/485 Port (Cn7)
Hardware Configuration 2.5.4 Console COM1 (RJ50) RS-232/422/485 Port (CN7) COM1 port is jumper-less and configurable in the BIOS. Assignment Assignment DSR, Data set ready DCD, Data carrier detect Ground DTR, Data terminal ready Ground CTS, Clear to send TX, Transmit RTS, Request to send RX, Receive RI, Ring Indicator... -
Page 32: Displayport (Cn8)
2.5.5 DisplayPort (CN8) 2.5.6 HDMI Port (CN9) 2.5.7 LCD Backlight Connector (J2) Assignment Assignment +12V Brightness Control Backlight Enable Ground IB811LF Series User’s Manual... -
Page 33: Lvds Connector (J1, J3)
Hardware Configuration 2.5.8 LVDS Connector (J1, J3) Remarks: J1: 2nd channel J3: 1st channel Assignment Assignment TX0P TX0N Ground Ground TX1P TX1N Ground Ground TX2P TX2N Ground Ground CLKP CLKN Ground Ground TX3P TX3N IB811F Series User’s Manual... -
Page 34: Audio Connector (J4)
2.5.9 Audio Connector (J4) Assignment Assignment Lineout_L Lineout_R JD_FRONT Ground LINEIN_L Linein_R JD_LINEIN Ground MIC_L MIC-R JD_MIC1 Ground 2.5.10 DDR3L SO-DIMM Slot (J5, J8) IB811LF Series User’s Manual... -
Page 35: Usb 2.0 Connector (J6)
Hardware Configuration 2.5.11 USB 2.0 Connector (J6) Assignment Assignment Ground Ground 2.5.12 Amplifier Connector (J7) Assignment Assignment OUTL+ OUTR- OUTL- OUTR+ IB811F Series User’s Manual... -
Page 36: Sata Hdd Power Connector (J10)
2.5.13 SATA HDD Power Connector (J10) Assignment Assignment Ground Ground +12V 2.5.14 Mini PCIe / mSATA Slot (J11) IB811LF Series User’s Manual... -
Page 37: Com2 / Com3 / Com4 Rs-232 Port (J16, J17, J12)
Hardware Configuration 2.5.15 COM2 / COM3 / COM4 RS-232 Port (J16, J17, J12) Assignment Assignment DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready Ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Not Used 2.5.16... -
Page 38: Front Panel Connector (J13)
Orientation is not required when making a connection to this header. • Power LED: Pins 7 and 8 This connector connects to the system power LED on control panel. This LED will light when the system turns on. IB811LF Series User’s Manual... -
Page 39: Digital I/O Connector (J18)
Hardware Configuration 2.5.18 Digital I/O Connector (J18) Assignment Assignment Ground OUT3 OUT1 OUT2 OUT0 2.5.19 DC Power Input Connector (J19) Assignment +9V ~ +36V Ground IB811F Series User’s Manual... -
Page 40: Chapter 3 Drivers Installation
Chapter 3 Drivers Installation This chapter introduces installation of the following drivers: • ® Intel Chipset Software Installation Utility • VGA Driver • HD Audio Driver • ® Intel Trusted Execution Engine Installation • LAN Driver IB811LF Series User’s Manual... -
Page 41: Introduction
The contents of this section include the following: Note: After installing your Windows operating system, you must install the ® Intel Chipset Software Installation Utility first before proceeding with the drivers installation. IB811LF Series User’s Manual... -
Page 42: Intel ® Chipset Software Installation Utility
Follow the instructions below to complete the installation. Insert the disk enclosed in the package with the board. Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. Click Intel(R) Chipset Software Installation Utility. IB811LF Series User’s Manual... - Page 43 Click Yes to accept the software license agreement and proceed with the installation process. On the Readme File Information screen, click Install for installation. The driver has been completely installed. You are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 44: Vga Driver Installation
VGA Driver Installation Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. Click Intel(R) Apollolake Graphics Driver. IB811LF Series User’s Manual... - Page 45 When the Welcome screen appears, click Next to continue. Click Yes to accept the license agreement and click Next until the installation starts. The driver has been completely installed. You are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 46: Hd Audio Driver Installation
HD Audio Driver Installation Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. Click Realtek High Definition Audio Driver. IB811LF Series User’s Manual... - Page 47 On the Welcome screen of the InstallShield Wizard, click Next for installation. Click Next until the installation starts. The driver has been completely installed. You are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 48: Intel ® Trusted Execution Engine Drivers
® Intel Trusted Execution Engine Drivers Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. Click Intel(R) TXE Drivers. IB811LF Series User’s Manual... - Page 49 When the Welcome screen appears, click Next. Accept the license agreement and click Next. Click Next for installation. As the driver has been sccessfully installed, you are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 50: Intel ® Serial Io Drivers
® Intel Serial IO Drivers Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. Click Intel(R) Serial IO Drivers. IB811LF Series User’s Manual... - Page 51 Accept the license agreement and click Next. After reading the Readme File Information, click Next for installation. As the driver has been sccessfully installed, you are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 52: Lan Driver Installation
LAN Driver Installation Click LAN Card on the left pane and then Intel LAN Controller Drivers on the right pane. Click Intel(R) I21x Gigabit Network Drivers.. IB811LF Series User’s Manual... - Page 53 On the Setup Options screen, click the checkbox to select the desired driver(s) for installation. Then click Next to continue. The wizard is ready for installation. Click Install. As the installation is complete, you are suggested to restart the computer for changes to take effect. IB811LF Series User’s Manual...
-
Page 54: Chapter 4 Bios Setup
This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Boot Settings • Security Settings • Save & Exit IB811LF Series User’s Manual... -
Page 55: Introduction
The following message will appear on the screen: Press <DEL> Enter Setup In general, press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help, and <Esc> to quit. IB811LF Series User’s Manual... - Page 56 These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could make the system unstable and crash in some cases. IB811LF Series User’s Manual...
-
Page 57: 4.3 Main Settings
4.3 Main Settings BIOS Setting Description Sets the date. Use the <Tab> key to switch System Date between the data elements. Set the time. Use the <Tab> key to switch System Time between the data elements. IB811LF Series User’s Manual... -
Page 58: 4.4 Advanced Settings
4.4 Advanced Settings This section allows you to configure, improve your system and allows you to set up some system features according to your preference. IB811LF Series User’s Manual... - Page 59 TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. Device Select Auto will support both with the default sat to TPM 2.0 devices if not found. TPM 1.2 devices will be enumerated. IB811LF Series User’s Manual...
- Page 60 Enable Hibernation (OS/S4 Sleep State). This option may be not effective with some OS. Selects an ACPI sleep state (Suspend Disabled ACPI Sleep State or S3) where the system will enter when the Suspend button is pressed. IB811LF Series User’s Manual...
- Page 61 Standby Power on S5 Options: All Enable / Enable Ethernet for WOL / All Disable Sets parameters of serial ports. Serial Ports Enables / Disables the serial port and select an Configuration optimal setting for the Super IO device. IB811LF Series User’s Manual...
- Page 62 IO = 2E8h; IRQ = 3, 4, 5, 6, 7, 9, 10, 11, 12 Changes the serial port mode to: • RS232 • RS485 TX Low Active Device Mode • RS485 with Termination TX Low Active • RS422 • RS422 with Termination IB811LF Series User’s Manual...
- Page 63 PC health status. Sets a threshold of temperature to shut down if CPU goes overheated. CPU Shutdown Temperature Options: Disabled / 70 °C / 75 °C / 80 °C / 85 °C / 90 °C / 95 °C IB811LF Series User’s Manual...
- Page 64 4.4.5 M.2 Setup BIOS Setting Description M.2 Select Selects the M.2 interface as SATA or PCIe. IB811LF Series User’s Manual...
- Page 65 Displays the socket specific CPU information. Information CPU Power Allows you to enable / disable Turbo Mode. Management Active Processor Enables / Disables the cores in the processor Cores package. Monitor Mwait Enables / Disables Monitor Mwait. IB811LF Series User’s Manual...
- Page 66 4.4.7 AMI Graphic Output Protocol Policy BIOS Setting Description Output Select Outputs through HDMI interface. IB811LF Series User’s Manual...
- Page 67 If disabled, Ipv4 HTTP boot option will not be created. Assigns a period of time to press ESC key to PXE boot wait time abort the PXE boot. Assigns a number of times to check the presence Media detect count of media. IB811LF Series User’s Manual...
- Page 68 Postponed executes the trap during legacy boot. Boot option filter Controls the priority of Legacy and UEFI ROMs. Option ROM Controls the execution of UEFI and Legacy PXE execution - Network Option ROM. Options: Do not launch/UEFI/ Legacy. IB811LF Series User’s Manual...
- Page 69 The maximum time the device will take before it properly reports itself to the Host Controller. Device power-up Auto uses default value for a Root port it is delay 100ms. But for a Hub port, the delay is taken from Hub descriptor. IB811LF Series User’s Manual...
-
Page 70: 4.5 Chipset Settings
4.5 Chipset Settings 4.5.1 South Cluster Configuration IB811LF Series User’s Manual... - Page 71 BIOS Setup 4.5.1.1 HD Audio Configuration 4.5.1.2 PCI Express Configuration BIOS Setting Description PCI Express Root Accesses the control of the PCI Express Root Port 1 ~ 6 Port. IB811LF Series User’s Manual...
- Page 72 Options: Disable / L0s / L1 / L0SL1 / Auto Sets PCIe L1 substates. L1 Substates Options: Disables / L1.1 / L1.2 / L1.1 & L1.2 PME SCI Enables / Disables PME SCI. PCIe Speed Configures the PCIe speed. IB811LF Series User’s Manual...
- Page 73 BIOS Setting Description Enables / Disables the Chipset SATA Controller. The Chipset SATA Controller supports the 2 Chipset SATA black internal SATA ports (up to 3Gb/s supported per port). SATA Mode Selection Determines how SATA controller(s) operate. IB811LF Series User’s Manual...
- Page 74 USB port from reporting a device connection to Override the controller. XDCI Support Enables / Disables XDCI. XHCI Disable FALSE makes the XHCI Link Compliance Mode Compliance Mode not disabled. TRUE disables the XHCI Link Compliance Mode. IB811LF Series User’s Manual...
-
Page 75: 4.6 Security Settings
BIOS Setup 4.6 Security Settings BIOS Setting Description Setup Administrator Sets an administrator password for the setup Password utility. User Password Sets a user password. Secure Boot Customizable Secure Boot IB811LF Series User’s Manual... - Page 76 And after reset, the mode will return to STANDARD mode. Force System to User Mode. Configure NVRAM Restore Factory Keys to contain OEM-defined factory default Secure Boot keys. Enables expert users to modify Secure Boot Key Management Policy variables without full authentication IB811LF Series User’s Manual...
- Page 77 (PK). Options available: Update Displays the current status of the Key Exchange Key Exchange Keys Key Database (KEK). Options available: Update/Append. Displays the current status of the Authorized Authorized Signatures Signature Database. Options available: Update /Append. IB811LF Series User’s Manual...
- Page 78 Database. Signatures Options available: Update /Append. Displays the current status of the Authorized Authorized TimeStamps Database. TimeStamps Options available: Update /Append. Displays the current status of the OsRecovery OsRecovery Signature Database. Signatures Options available: Update /Append. IB811LF Series User’s Manual...
-
Page 79: 4.7 Boot Settings
Boot mode select Selects a Boot mode, Legacy / UEFI / Dual. Sets the system boot order priorities for hard Fixed Boot Order disk, CD/DVD, USB hard disk, USB CD/DVD, Priorities USB Key, USB Floppy, USB Lan, Network. IB811LF Series User’s Manual... -
Page 80: 4.8 Save & Exit Settings
Restores / Loads defaults values for all the setup Restore Defaults options. Save as User Defaults Saves the changes done so far as User Defaults. Restores the user defaults to all the setup Restore User Defaults options. IB811LF Series User’s Manual... -
Page 81: Appendix
Appendix This section provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration. -
Page 82: I/O Port Address Map
Motherboard resources 0x000000B2-0x000000B3 Motherboard resources 0x00000680-0x0000069F Motherboard resources 0x00000400-0x0000047F Motherboard resources 0x00000500-0x000005FE Motherboard resources 0x00000600-0x0000061F Motherboard resources 0x0000164E-0x0000164F Motherboard resources Intel(R) Celeron(R)/Pentium(R) 0x0000F040-0x0000F05F Processor SMBUS - 5AD4 Intel(R) Celeron(R)/Pentium(R) 0x0000D000-0x0000DFFF Processor PCI Express Root Port - 5AD9 IB811LF Series User’s Manual... - Page 83 0x000000A4-0x000000A5 Programmable interrupt controller 0x000000A8-0x000000A9 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x0000F000-0x0000F03F Intel(R) HD Graphics IB811LF Series User’s Manual...
- Page 84 Address Device Description 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer IB811LF Series User’s Manual...
-
Page 85: Interrupt Request Lines (Irq)
Controller IRQ 39 SDA Standard Compliant SD Host Controller IRQ 54 ~ IRQ 204 Microsoft ACPI-Compliant System IRQ 256 ~ IRQ 511 Microsoft ACPI-Compliant System IRQ 4294967279 Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft) IB811LF Series User’s Manual... - Page 86 Intel(R) I211 Gigabit Network Connection #2 IRQ 4294967285 IRQ 4294967286 ~ Intel(R) I211 Gigabit Network Connection IRQ 4294967291 IRQ 4294967292 Intel(R) Trusted Execution Engine Interface IRQ 4294967293 Intel(R) HD Graphics IRQ 4294967294 Standard SATA AHCI Controller IB811LF Series User’s Manual...
-
Page 87: Watchdog Timer Configuration
Fintek 81964, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime); if (bTime) EnableWDT(bTime); } else DisableWDT(); return 0; IB811LF Series User’s Manual... - Page 88 // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------- #include "F81964.H" #include <dos.h> //--------------------------------------------------------------------------- unsigned int F81964_BASE; void Unlock_F81964 (void); void Lock_F81964 (void); //--------------------------------------------------------------------------- unsigned int Init_F81964(void) unsigned int result; IB811LF Series User’s Manual...
- Page 89 LD); Lock_F81964(); //--------------------------------------------------------------------------- void Set_F81964_Reg( unsigned char REG, unsigned char DATA) Unlock_F81964(); outportb(F81964_INDEX_PORT, REG); outportb(F81964_DATA_PORT, DATA); Lock_F81964(); //--------------------------------------------------------------------------- unsigned char Get_F81964_Reg(unsigned char REG) unsigned char Result; Unlock_F81964(); outportb(F81964_INDEX_PORT, REG); Result = inportb(F81964_DATA_PORT); Lock_F81964(); return Result; //--------------------------------------------------------------------------- IB811LF Series User’s Manual...
- Page 90 F81964_DATA_PORT (F81964_BASE+1) //--------------------------------------------------------------------------- #define F81964_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81964_UNLOCK 0x87 #define F81964_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81964(void); void Set_F81964_LD( unsigned char); void Set_F81964_Reg( unsigned char, unsigned char); unsigned char Get_F81964_Reg( unsigned char); //--------------------------------------------------------------------------- #endif // F81964_H IB811LF Series User’s Manual...
-
Page 91: Onboard Connector Reference Types
Hao Guo Xing Ye Connector WAFER396-2S-WV VHR-2N Dupon Digital I/O Dupon 2.00 mm-pitch pin Connector 2.00 mm-pitch (Female) header (Male) LCD Backlight E-CALL Connector 0110-161-040 PHR-4. J3 (1st channel), LVDS Hirose Hirose Connectors DF20G-20DP-1V DF20A-20DS-1C J1 (2nd channel) IB811LF Series User’s Manual... -
Page 92: Peripheral Device Power Control
API. The following are the connectors that can be controlled. Function Connector Software Mapping USB 3.0 CN6(A.B) bit_0 Remarks: This feature is only available on the next board version – IB811LF USB 3.0A. IB811LF Series User’s Manual...
