4.

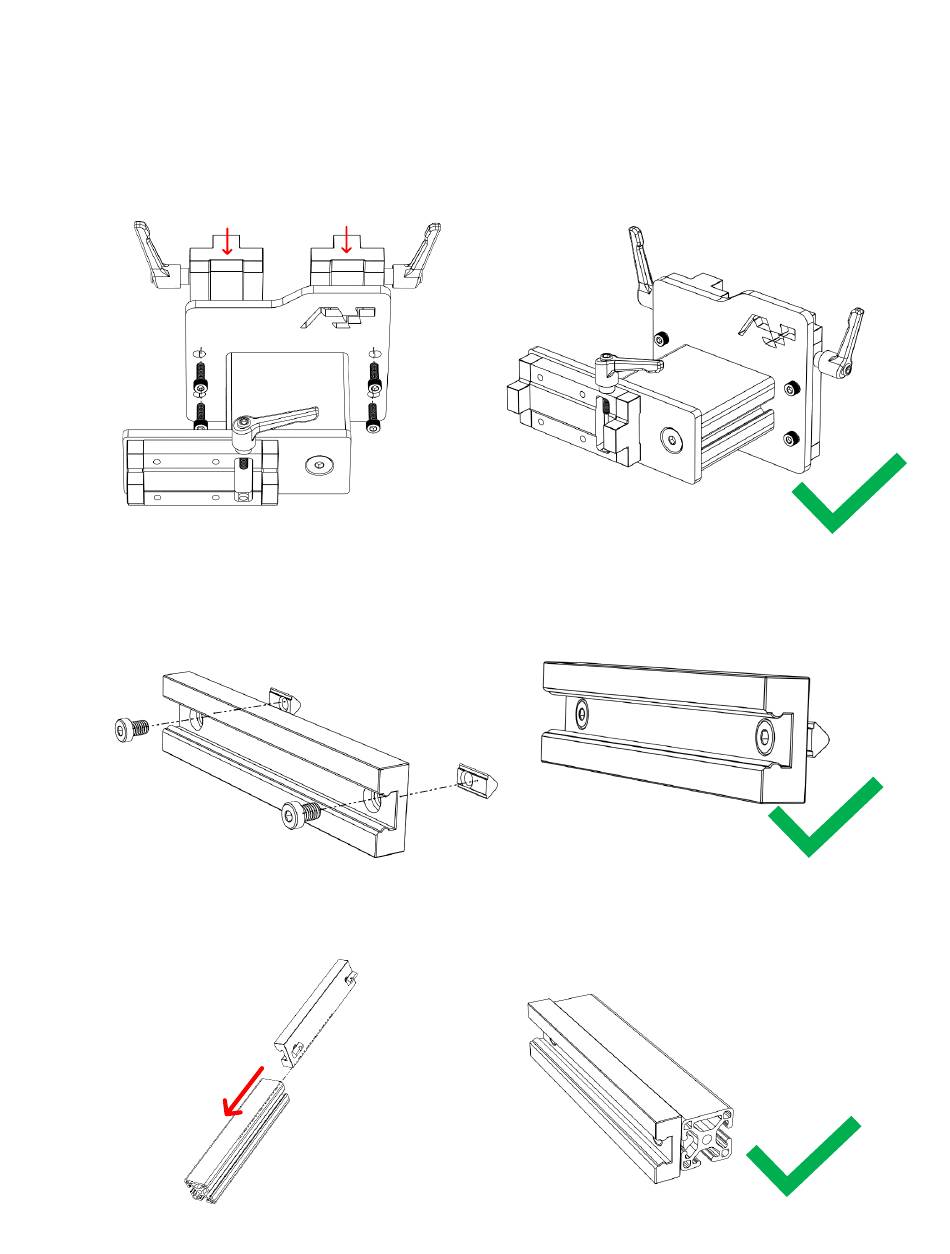

Assemble the vertical rollers to the side plate using 2X M5x16 socket screws
each. Tighten no more than hand tight. Make sure to respect the orientation of
the locking handles. Repeat for both sides.
2X
5.
Assemble the linear guide rail with 2X M8 X 12 low profile socket screws and
2X t-nuts. Tighten no more than a turn, repeat for both guides.
2X
6.
Slide the rail through the 1.5" X 8" extrusion. Make sure to have the flat face
perpendicular to the rail, as shown.
2X
28
