30.

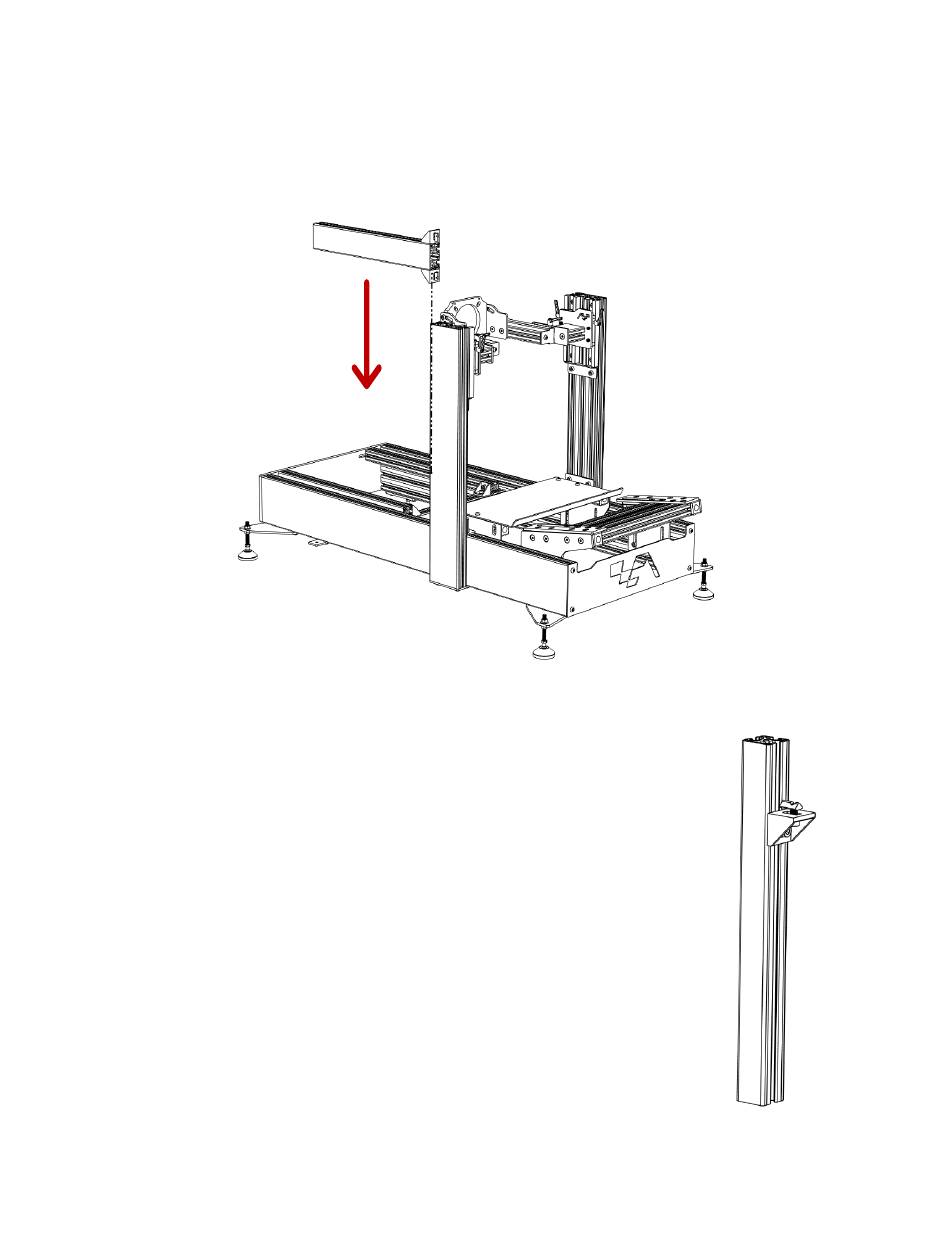

Slide the assembled extrusion through the top of the desired Up Post (depending
if you want a RHD or LHD setup, a LHD setup is shown). Slide it down to about
the middle, don't tighten yet.
31.
Prepare a corner gusset with 2X M8 T-Nuts and 2X M8 X
16 socket screws. Install the gussets on the 1.5" X 16"
extrusion. Place it about 3" from the top, with the flat face of
the extrusion as shown. Do not tighten yet.
18
