10.

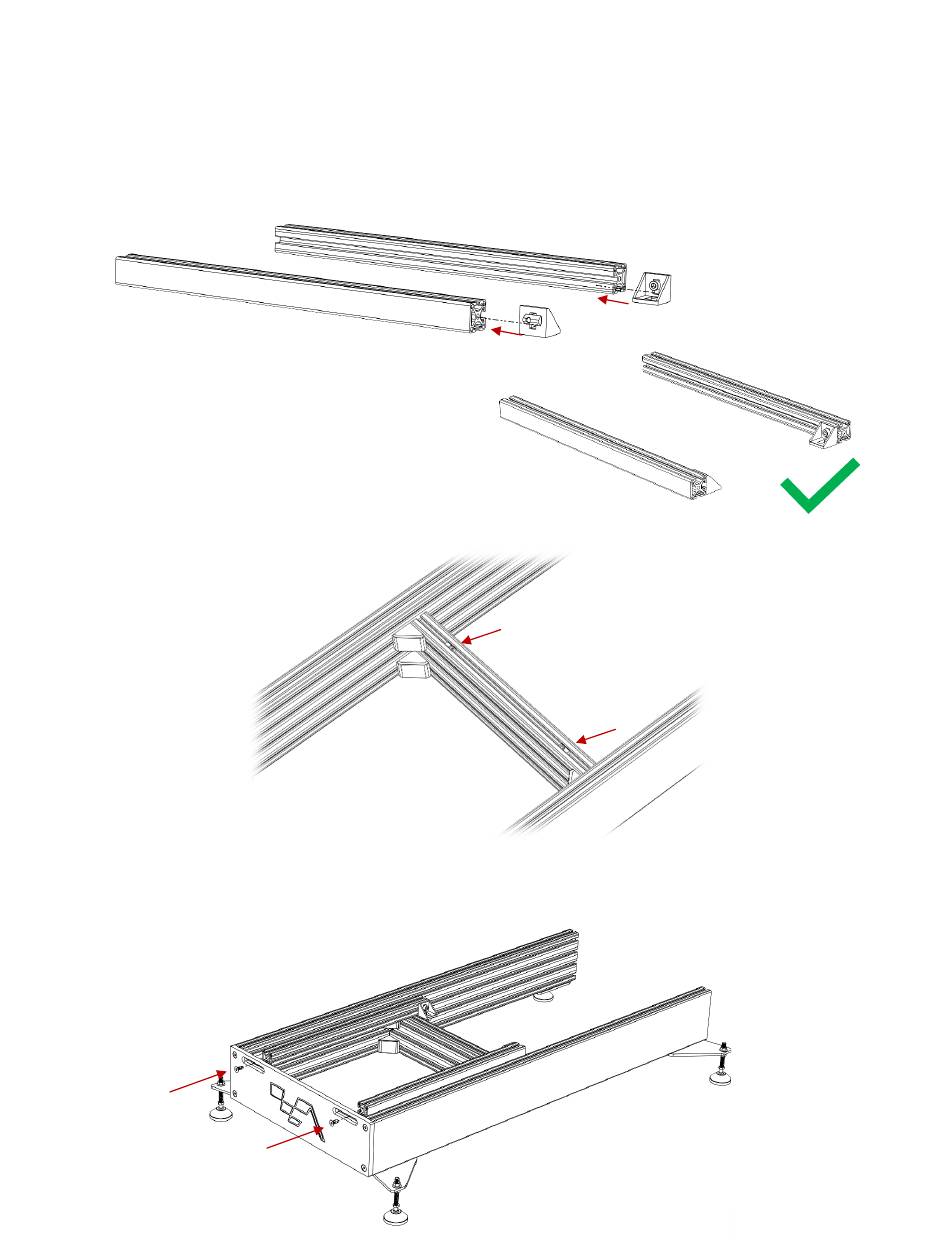

Place the gussets at the end of the 1.5" X 22" extrusions following the pattern
shown below. Make sure the gusset are place on the opposite side of the flat
face. Tighten no more than handtight.
11.
Place 2 M8 t-nuts through the top slot of the 4.5" X 19" extrusion. Use the
technique explained on the page "T-nut install tip" to help installation.
12.
Screw the 1.5" X 22" extrusion through the rear plate using 1X M8 X 20 flat
head screw, and to the previously placed M8 t-nut using a M8 X 16 socket
screw. Repeat for both 22" extrusions. Tighten no more than hand tight.
