Pro Wheel Deck - ADVANCED SIMRACING ASR Pro Assembly And User's Manual

Pro Wheel Deck

1.

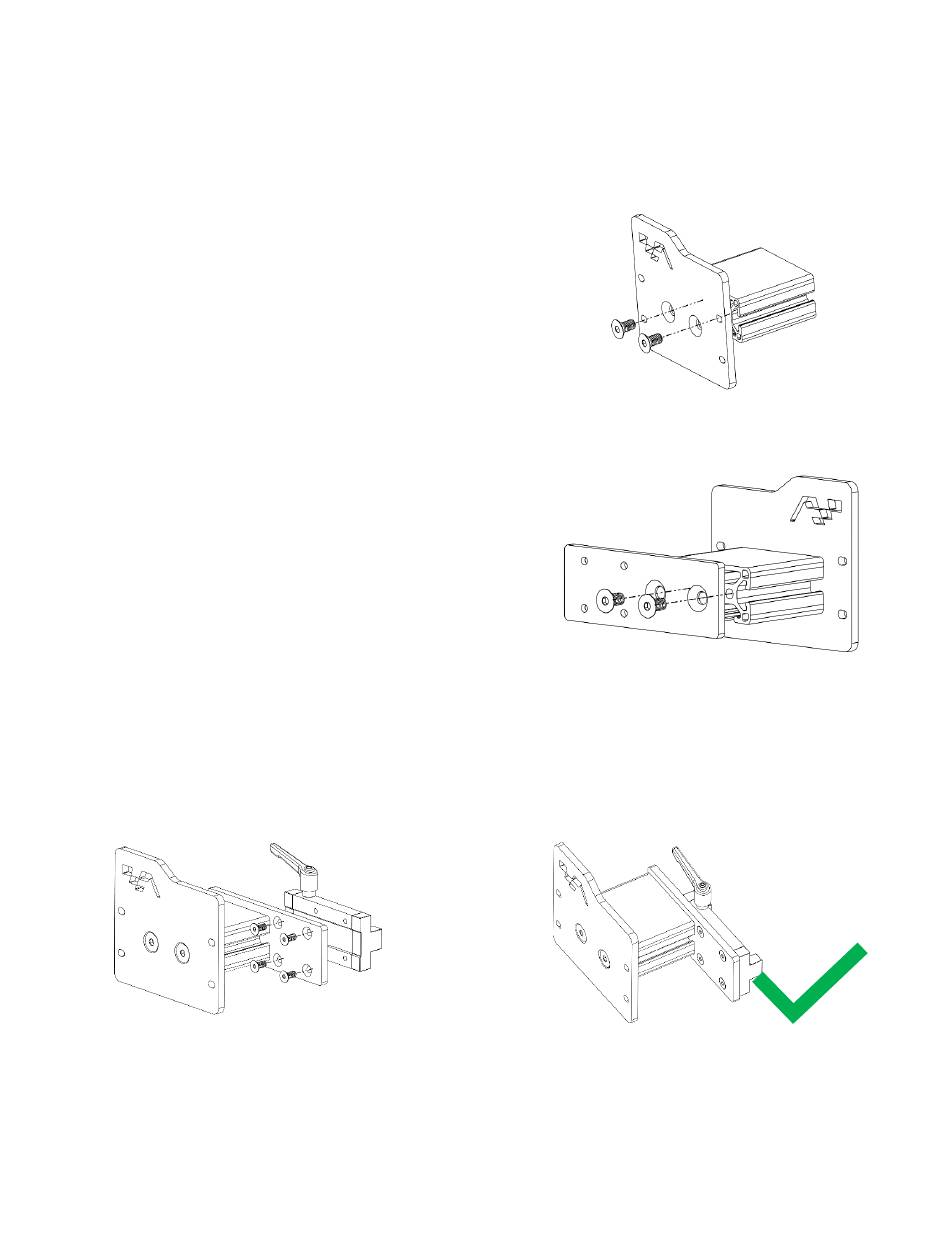

Assemble the side plate to the 3" X 2 7/8"
extrusion using 2X M8 X 16 flat head
screws. Repeat for both sides, tighten fully.
2X
2.
Assemble the guide fastening plate to the
3" X 2 7/8" extrusion using 2X M8 X 16
flat head screws. Repeat for both sides
(mirrored) and tighten fully.
2X
3.
Assemble the roller part of the guide to the guide fastening plate using 4X M5 X
16 flat head screws. Make sure the end of the plate is flush to the guide as
shown. Tighten fully.
2X
27
