ASR Kart Chassis
ASSEMBLY AND USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASR Kart and is the answer not in the manual?

Questions and answers

Summary of Contents for ADVANCED SIMRACING ASR Kart

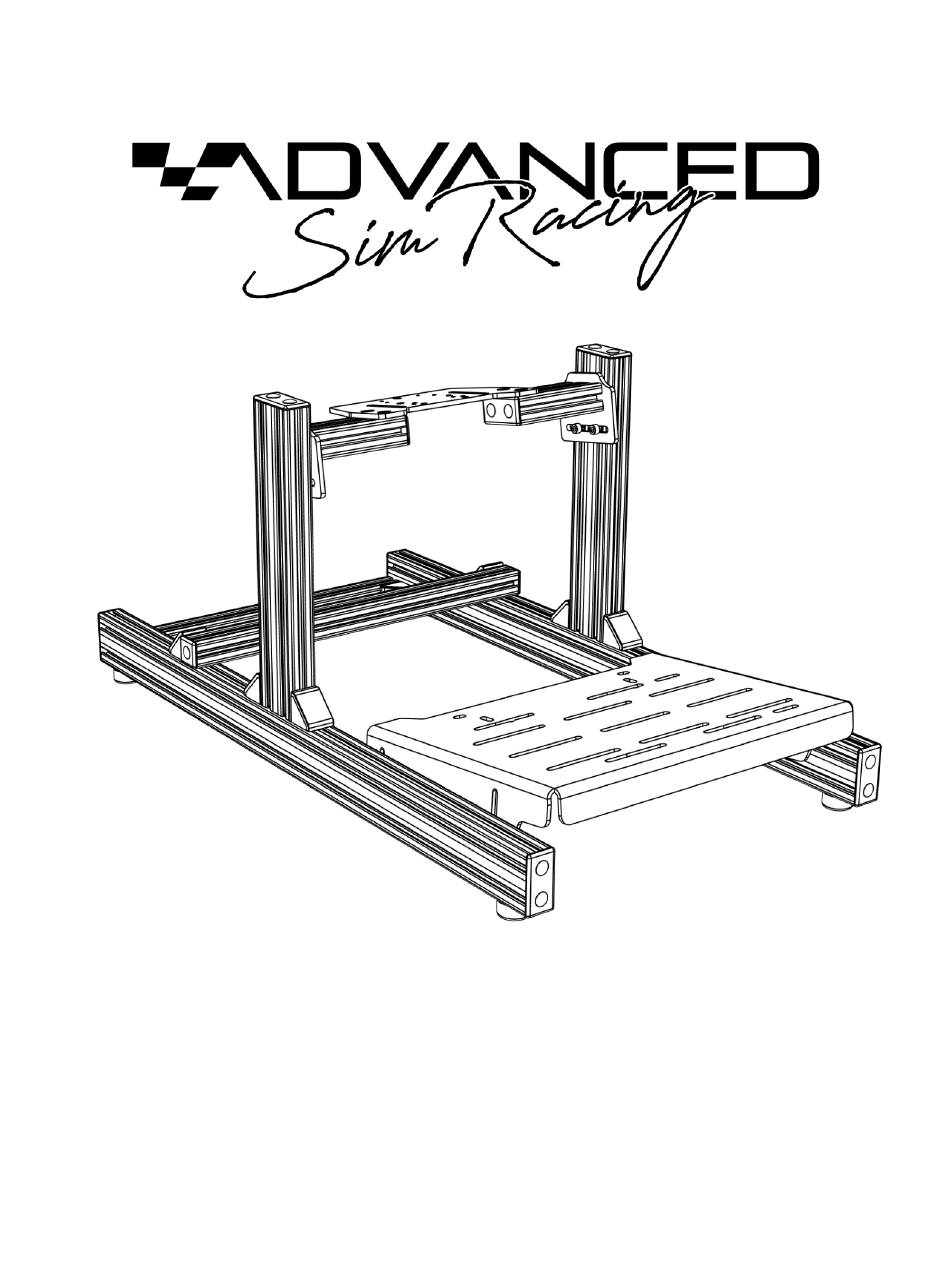

  • Page 1 ASR Kart Chassis ASSEMBLY AND USER GUIDE...
  • Page 2: Table Of Contents

    Table of Contents Required Tools ............................1 Content of packages .......................... 2 Content ..............................2 Wheel Deck Components ......................3 Assembly guide ............................. 4 Main Chassis ............................ 4 Wheel Deck ............................ 14 Seat Install ............................15 User Guide ............................16 Pedal tray adjustment .......................
  • Page 3: Required Tools

    Required Tools 6mm Allen key 5mm Allen Key Flathead screwdriver Tape Measure For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center...
  • Page 4: Content Of Packages

    Content of packages Boxes 1X Chassis box, 1X Hardware box ,1X Pedal tray box ,1X Wheel deck box Content Corner Gusset & Cover M8 X 16 8X each Hex screws – 24X M8 T-Nuts – 24X 3” End Cap – 6X 1.5”...
  • Page 5: Wheel Deck Components

    Wheel Deck Components Deck to Up Post plate – 2X 3” X 5.625” Extrusion – 2X Push Pin – 4X 3” End Cap – 2X M8 X 16 Flat Head Screw - 8X Option 1: Standard Wheel Deck Standard Mount – 1X Option 2: Direct Drive Wheel Deck Asetek plate –...
  • Page 6: Assembly Guide

    Assembly guide Main Chassis Assemble 6 X corner gussets with 2 M8 screws and 2 M8 T-Nuts. Screw in the T-Nuts no more than ½ a turn. Make sure to respect the shown orientation of the T-Nuts for trouble-free assembly. Slide the gussets on either side of the 19”...
  • Page 7 Loosely assemble the rubber feet with the M6 X 20 screw and M6 T-Nut. Slide the rubber feet through the bottom slot on the 3” X 50” Extrusions and place at least 1” from the end. Tighten fully. Assemble 4 X M8 X 16 Socket screws and 4X M8 T-Nuts on the pedal tray sides.
  • Page 8 Slide the pedal tray through the 50” Extrusions. Slide through the top slot for the highest adjustments capabilities, or the bottom slot for the lowest adjustments, or a mix of both for more angle. Tighten it snug for the moment, but only fully tighten after positioning your pedals.
  • Page 9 Slide the 16” post through the top of the 40” extrusion. Repeat on both sides. Place the posts at 19” from the front, as shown below, and tighten fully.
  • Page 10 Prepare 2 corner gussets with the following twist : Using the flathead screwdriver, slide the flathead under the small tab on the bottom, and pry out the tab. It will snap at the base. Snap off both tabs on one side. Prepare the snapped gussets with 2X M8 T-Nut and 2X M8 X 16 socket screw each.
  • Page 11 Slide the 1.5” X 22” extrusion as shown below and tighten at 10” from the end of the chassis. Tighten fully. 17.Follow the Wheel Deck Assembly Section. Installation is the same wether you have the standard or Direct Drive Wheel Deck. Prepare the Wheel Deck with 4X T-Nuts and 4X M8 X 16 socket screws.
  • Page 12 Slide the Wheel Deck through the top of the Up Post Channels. Fully tighten. If the Wheel Deck seems too large for the gap, loosen the corner gussets holding the Up Posts. It is made to fit.
  • Page 13 For the finishing touches, cap all the visible open extrusion ends using the corresponding endcap and pushpins and install the corner gusset caps.
  • Page 14 For the seat installation, Put 2 M8 T-Nuts on the forward-most 1.5in extrusion, and one in the center of the rear 1.5” extrusion. Use the 3x M8 low profile button head screws included with the seat to screw it down. (Actual seat will differ from currently shown illustration, it comes pre- drilled for easy fastening)
  • Page 15 Congratulations on your new ASR-K Simracing Chassis!
  • Page 16: Wheel Deck

    Wheel Deck Standard Wheel Deck 1. Assemble the side plate to the 3” X 5.625” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Using 4X M8 X 12 flat head screws and 4X M8 T-Nuts, install the wheel plate as shown below.
  • Page 17: Seat Install

    Front Mount Wheel Deck 1. Assemble the side plate to the 3” X 5.625” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Assemble the center plate to the 3” X 5.625” extrusion using 2X M8 X 16 flat head screws.
  • Page 18: User Guide

    User Guide Pedal tray adjustment You can slide the T-nut/screw assembly either through the bottom or top channel of the extrusion, and you can position it however high or low. Make sure to have your pedals already properly set up before placing the pedal tray! Tighten fully the 4 screws holding the pedal tray before use, you may want to verify a second time just to be sure.
  • Page 19: Wheel Deck Adjustment

    Wheel deck adjustment The standard wheel deck can be adjusted using the Up Post brackets. With your wheel installed, loosen 3 out of the 4 screws and place yourself in the rig. Slowly loosen the last screw until you feel the wheel deck moving. It will most probably drop with the weight of the wheel so be careful! You can then place the wheel according to your preference in height and angle and tighten when the position is satisfactory.
  • Page 20: Accessories

    Accessories Have you thought about accessories? Mounting plates for your shifter or handbrake, keyboard tray, cable management brackets, etc. We got you. Have a look through our catalog! https://www.advancedsimracing.com/collections/accessories-parts-for-the-chassis...
