3.

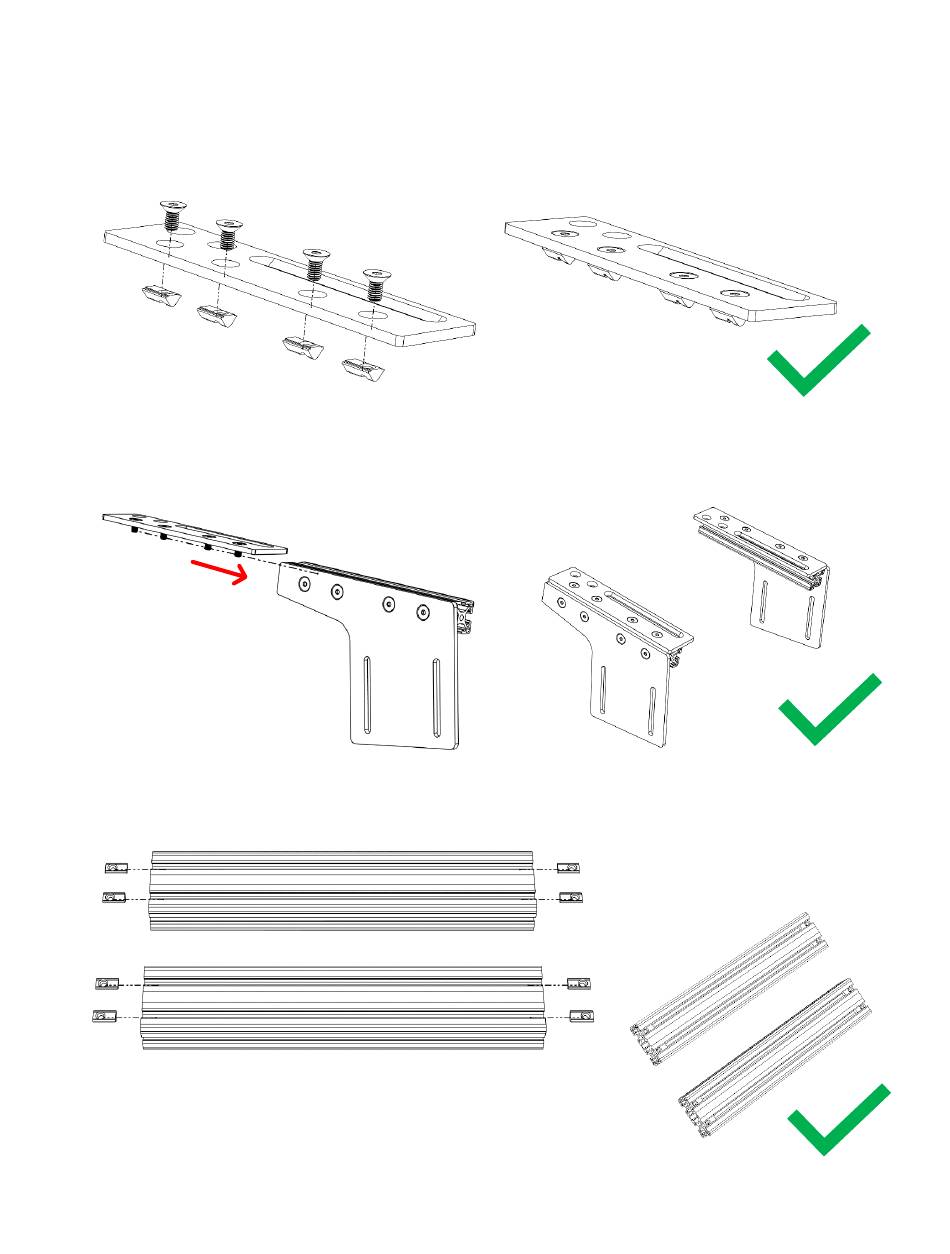

Assemble the pedal tray tops with 4X M8 t-nuts and 4X M8 X 16 flat head
screws. Tighten no more than a turn. Repeat for both sides.
2X
4.
Slide the pedal tray top over the side and extrusion assembly. Repeat for both
sides. Tighten fully.
2X
5.
Prepare the 3" X 15.5" extrusion by placing 8X M8 t-nuts to the ends as shown.
23
