ASR1 Chassis
ASSEMBLY AND USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASR1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADVANCED SIMRACING ASR1

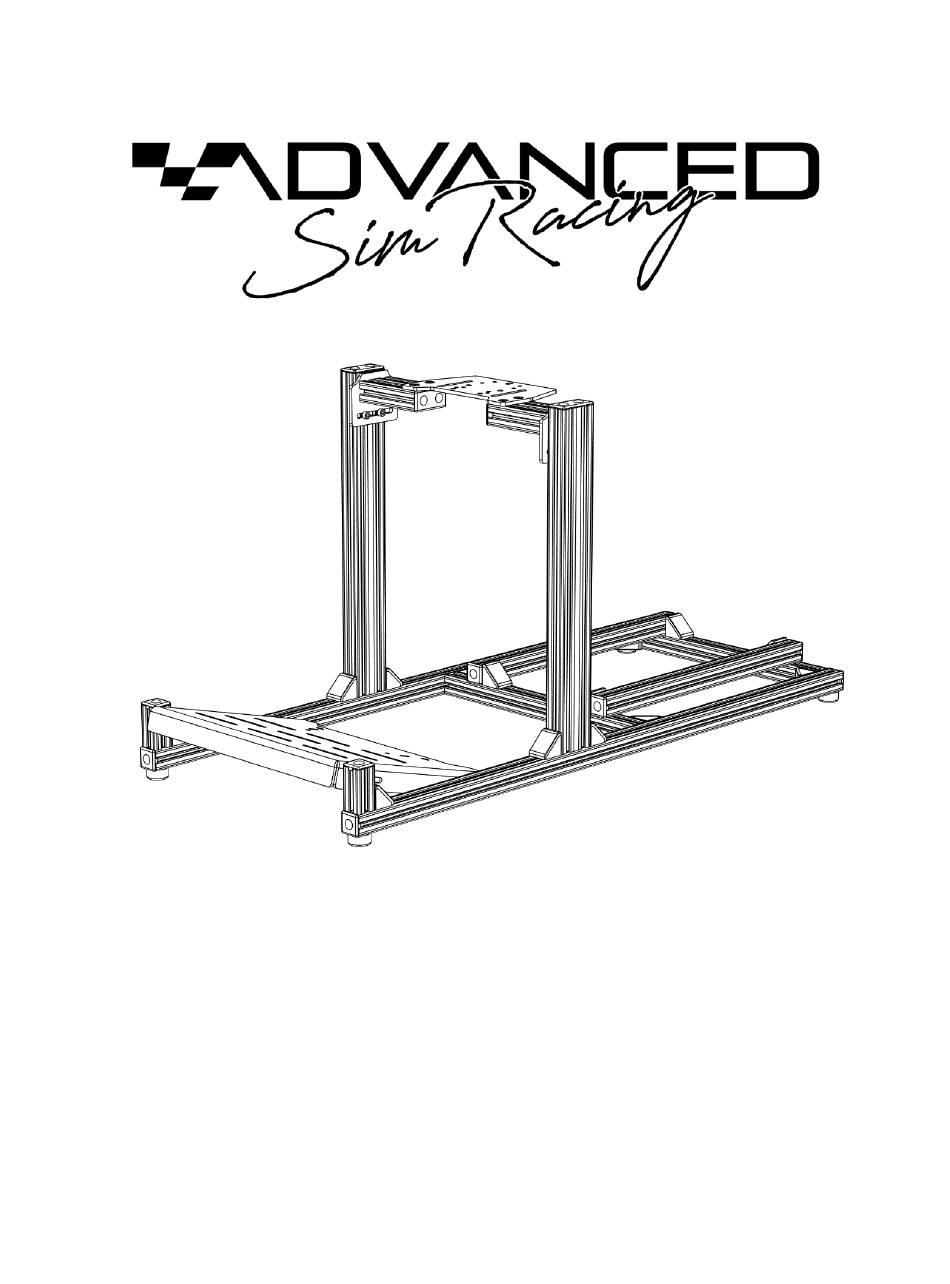

  • Page 1 ASR1 Chassis ASSEMBLY AND USER GUIDE...
  • Page 2: Table Of Contents

    Table of Contents Required Tools ............................1 Content of packages .......................... 2 Common Content ........................... 2 Wheel Deck Components ......................3 Assembly guide ............................. 4 Main Chassis ............................ 4 Wheel Deck Assembly ......................14 T-Nut install tip ..........................16 User Guide ............................17 Pedal tray adjustment .......................
  • Page 3: Required Tools

    Required Tools 6mm Allen key 5mm Allen Key Flathead screwdriver Tape Measure For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center...
  • Page 4: Content Of Packages

    Content of packages Boxes 3X Chassis boxes, 1X Hardware box ,1X Pedal plate box ,1X Wheel deck box Common Content Corner Gusset & Cover 14X each M8 X 16 M8 T-Nuts – 44X Hex screws – 44X 1.5” End Cap – 10X 3”...
  • Page 5: Wheel Deck Components

    Wheel Deck Components Deck to Up Post plate – 2X 3” X 5.625” Extrusion – 2X Push Pin – 4X 3” End Cap – 2X M8 X 16 Flat Head Screw - 8X Option 1: Standard Wheel Deck Standard Mount – 1X Option 2: Fanatec Wheel Deck Side plate spacer for M8 X 12 Button...
  • Page 6: Assembly Guide

    Assembly guide Main Chassis Assemble 10 X corner gussets with 2 M8 screws and 2 M8 T-Nuts. Screw in the T-Nuts no more than ½ a turn. Make sure to respect the shown orientation of the T-Nuts for trouble-free assembly. Slide the gussets on either side of the 19”...
  • Page 7 Measure 22” as shown and tighten fully. You can cap up the Corner gussets. Loosely assemble the rubber feet with the M6 X 20 screw and M6 T-Nut. Slide the rubber feet through the bottom slot on the 3” X 50” Extrusions. Tighten fully.
  • Page 8 Slide 2 gussets at the end of a 3” X 24” extrusion and tighten fully. Repeat twice. Slide the 24” post through the top of the 50” extrusion. Repeat on both sides.
  • Page 9 Place the posts at 19” from the front, as shown below. Tighten fully and cap off the gussets. Assemble a corner gusset with a 1.5” X 3” extrusion and tighten flush to the end. Repeat twice. Attach the 3” extrusion to the end of the 50” extrusions. Tighten fully.
  • Page 10 Assemble 4 X M8 X 16 Socket screws and 4X M8 T-Nuts on the pedal tray sides. Screw in the T-Nuts no more than ½ a turn. Slide the rear t-nuts of the pedal trail through the inside slot of the 50” extrusion, and the front t-nuts through the 3”...
  • Page 11 Prepare 4 corner gussets with the following twist : Using the flathead screwdriver, slide the flathead under the small tab on the bottom, and pry out the tab. It will snap at the base. Snap off both tabs on one side. Prepare the snapped gussets with 1X M8 T-Nut and 1X M8 X 16 socket screw each, on the side where the...
  • Page 12 Place 2X T-Nuts on each of the 3” X 19” that run across. Use the technique at the page “T-Nut install tip” Further in this manual if you struggle with placing the t-nut! Loosely screw the 1.5” X 22” extrusions to the chassis using 4X M8 X 16 socket screws.
  • Page 13 19. Follow the Wheel Deck Assembly Section. Installation is the same wether you have the standard or Direct Drive Wheel Deck. Prepare the Wheel Deck with 4X T-Nuts and 4X M8 X 16 socket screws. Screw in the T-Nuts no more than ½ a turn. Slide the Wheel Deck through the top of the Up Post Channels.
  • Page 14 For the finishing touches, cap all the visible open extrusion ends using the corresponding endcap and pushpins. Install also any remaining corner gusset caps.
  • Page 15 Congratulations on your new ASR1 Simracing Chassis!
  • Page 16: Wheel Deck Assembly

    Wheel Deck Assembly Standard Wheel Deck 1. Assemble the side plate to the 3” X 7” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Using 4X M8 X 12 flat head screws and 4X M8 T-Nuts, install the wheel plate as shown below.
  • Page 17 Fanatec side mount Wheel Deck 1. Assemble the side plate to the 3” X 5.625” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Assemble the center plate to the 3” X 5.625” extrusion using 2X M8 X 16 flat head screws and the Fanatec specific spacer.
  • Page 18: T-Nut Install Tip

    T-Nut install tip Insert an M8 T-Nut in the desired slot of the extrusion. Insert the T nut perpendicular, and with the help of a small allen key in your attire such as a 3mm, pry the T nut straight with the allen key through the hole. The t-nut will snap into place when in position.
  • Page 19: User Guide

    User Guide Pedal tray adjustment You can position the T-nut/screw assembly however high or low. Make sure to have your pedals already properly setup before placing the pedal tray! Tighten fully the 4 screws holding the pedal tray before use, you may want to verify a second time just to be sure.
  • Page 20: Wheel Deck Adjustment

    Wheel deck adjustment The standard wheel deck can be adjusted using the Up Post brackets. With your wheel installed, loosen 3 out of the 4 screws and place yourself in the rig. Slowly loosen the last screw until you feel the wheel deck moving. It will most probably drop with the weight of the wheel so be careful! You can then place the wheel according to your preference in height and angle and tighten when the position is satisfactory.
  • Page 21: Accessories

    Accessories Have you thought about accessories? Mounting plates for your shifter or handbrake, keyboard tray, cable management brackets, etc. We got you. Have a look through our catalog! https://www.advancedsimracing.com/collections/accessories-parts-for-the-chassis...
