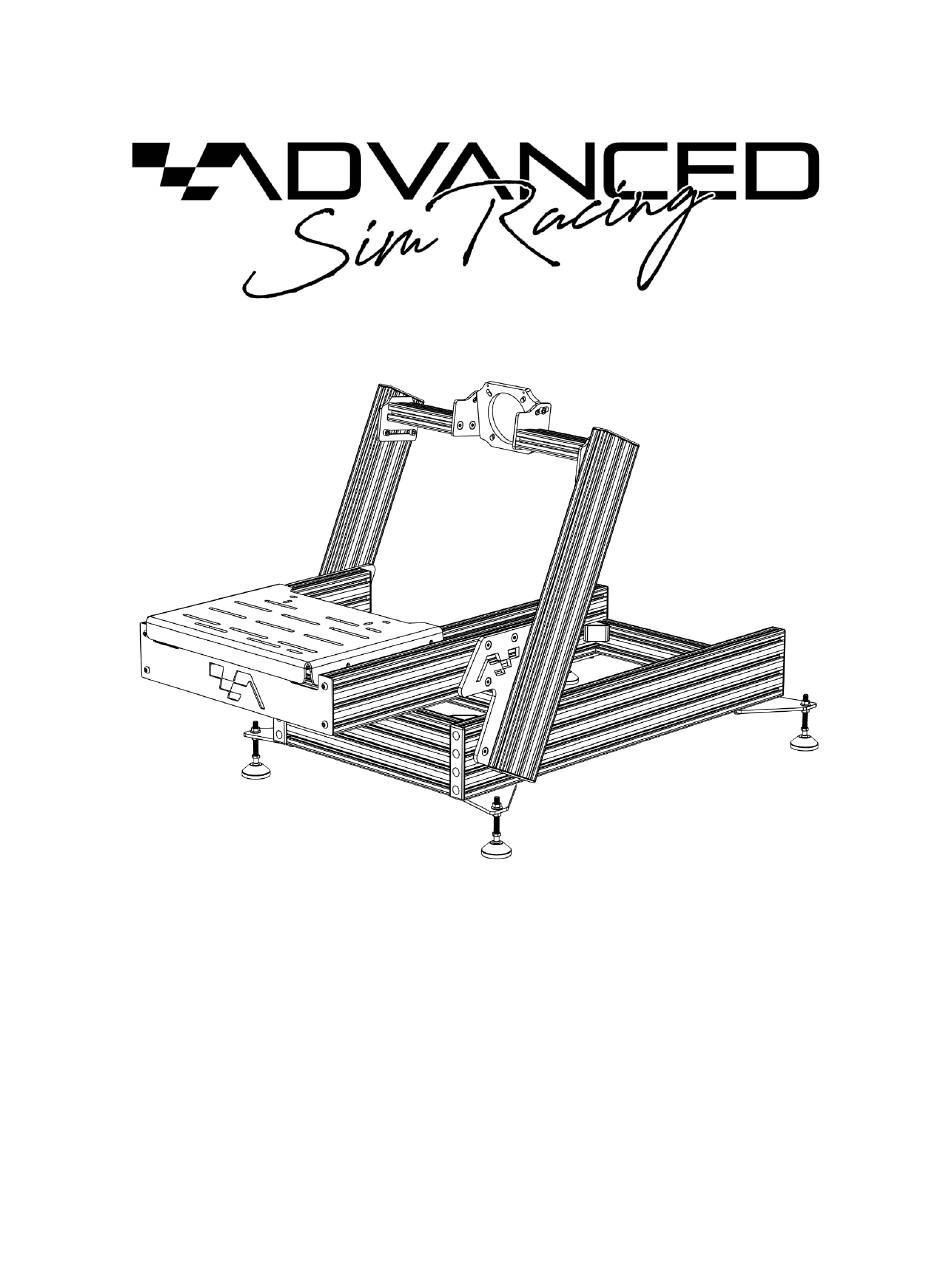

  • Page 1 ASR F Chassis ASSEMBLY AND USER GUIDE...

  • Page 2: Table Of Contents

    Table of Contents Required Tools ............................1 Content of packages .......................... 2 Common Content ........................... 2 Wheel Deck Components ......................4 Assembly guide ............................. 5 Main Chassis ............................ 5 Pedal Tray ............................16 Wheel Deck ............................ 17 Seat Install ............................18 T-Nut install tip ..........................

  • Page 3: Required Tools

    Required Tools 6mm Allen key 5mm Allen Key Flathead screwdriver Tape Measure For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center...

  • Page 4: Content Of Packages

    Content of packages Boxes 3X Chassis boxes, 1X Hardware box ,1X Pedal tray box ,1X Wheel deck box Common Content M8 X 12 button Corner Gusset & Cover head screw – 4X 16X each Front Plate – 1X M8 T-Nuts – 64X M8 X 16 Hex screws –...
  • Page 5 Pedal Tray Components Steel Pedal Tray specific components Steel Pedal Plate – 1X Aluminium Pedal Tray/heel rest combo specific components Pedal Tray Side Plate Pedal Tray Side Plate 3” X 18.5” Extrusion – 2X Right – 1X Left – 1X M8 Flat Head M8 X 12 Socket M8 T-Nuts –...

  • Page 6: Wheel Deck Components

    Wheel Deck Components Deck to Up Post plate – 2X 3” X 7.5” Extrusion – 2X Push Pin – 4X 3” End Cap – 2X M8 X 16 Flat Head Screw - 8X Option 1: Standard Wheel Deck Standard Mount – 1X Option 2: Direct Drive Wheel Deck Asetek plate –...

  • Page 7: Assembly Guide

    Assembly guide Main Chassis Assemble 12 X corner gussets with 2 M8 screws and 2 M8 T-Nuts. Screw in the T-Nuts no more than a turn. Make sure to respect the shown orientation of the T-Nuts for trouble-free assembly. Slide the gussets on either side of the 19” x 6” extrusion and place flush. Tighten the screws fully using a 6mm allen key.
  • Page 8 Slide the gussets on either side of the 19” x 3” extrusion. Repeat twice. Tighten the screws fully using a 6mm allen key. Slide the remaining open part of the gusset through the 40” x 6” extrusions. To position the inner 3” X 19” appropriately, place your seat bracket for dimensional reference (shown as reference is our maximum range side brackets).
  • Page 9 Assemble the adjustable feet at the same height. Make sure to have 2 mirrored and not all 4 on the same side! Also attach 2X M8 X 16 socket screws and 2X M8 t-nuts. With the platform upside down, slide in the feet to every end through the bottom of the 6”...
  • Page 10 To begin the raised pedal tray assembly, start with placing 5X M8 X 20 flat head screws and 5X M8 t-nuts in the shown locations below. Do no tighten more than a turn. Repeat for the opposite side’s piece. Slide the assembled plate through the 4.5” X 24” extrusion. Repeat twice. Tighten fully with a position similar to shown in the bubble, as long as both side are the same.
  • Page 11 From the extrusion side, place 5 M8 X 20 flat head screws and 5X M8 t-nuts. Tighten no more than a turn. Repeat for both sides. Slide the 4.5” X 28” extrusion through the assembled t-nuts and bring flush to the bottom of the bracket.
  • Page 12 To assemble the prepared arm to the base, insert 3X M8 X 20 flat head screw and 3X M8 t-nuts in the remaining holes, screw in no more than a turn. Repeat for both sides. Slide the posts through the sides of the 6” X 40” extrusion. Place the side post brackets at 2”...
  • Page 13 15. Follow the Pedal Tray Assembly section. The Steel pedal tray is shown, installation is also valid for the aluminium pedal tray. Assemble 4 X M8 X 16 Socket screws and 4X M8 T-Nuts on the pedal tray sides. Screw in the T-Nuts no more than a turn. Slide the pedal tray through the 4.5”...
  • Page 14 Install the front plate using 4 X M8 X 12 button head screws. Tighten fully.
  • Page 15 19. Follow the Wheel Deck Assembly Section. Installation is the same wether you have the standard or Direct Drive Wheel Deck. Prepare the Wheel Deck with 4X T-Nuts and 4X M8 X 16 socket screws. Screw in the T-Nuts no more than a turn. Slide the Wheel Deck through the top of the Up Post Channels.
  • Page 16 For the finishing touches, cap all the visible open extrusion ends using the corresponding endcap and pushpins.
  • Page 17 Congratulations on your new ASR F Simracing Chassis!

  • Page 18: Pedal Tray

    Pedal Tray The steel pedal tray requires no assembly. Can’t say that about the aluminium one though! Follow the steps here before completing your ASR4 if you’ve got the aluminium pedal tray. Assemble the Pedal Tray sides with the 3” X 18.5” extrusions using 8 M8 flat head screws.

  • Page 19: Wheel Deck

    Wheel Deck Standard Wheel Deck 1. Assemble the side plate to the 3” X 7.5” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Using 4X M8 X 12 flat head screws and 4X M8 T-Nuts, install the wheel plate as shown below.

  • Page 20: Seat Install

    Front Mount Wheel Deck 1. Assemble the side plate to the 3” X 7.5” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully. 2. Assemble the center plate to the 3” X 7.5” extrusion using 2X M8 X 16 flat head screws.

  • Page 21: T-Nut Install Tip

    T-Nut install tip Insert an M8 T-Nut in the desired slot of the extrusion. Insert the T-nut perpendicular, and with the help of a small allen key in your attire such as a 3mm, pry the T-nut straight with the allen key through the hole. The t-nut will snap into place when in position.

  • Page 22: User Guide

    User Guide Pedal tray adjustment Both aluminium and steel pedal tray are adjusted in the same fashion. You can slide the T-nut/screw assembly either through the bottom, middle or top channel of the extrusion, and you can position it however high or low. Make sure to have your pedals already properly setup before placing the pedal tray! Tighten fully the 4 screws holding the pedal tray before use, you may want to verify a second time just to be sure.

  • Page 23: Wheel Deck Adjustment

    Wheel deck adjustment The standard wheel deck can be adjusted using the Up Post brackets. With your wheel installed, loosen 3 out of the 4 screws and place yourself in the rig. Slowly loosen the last screw until you feel the wheel deck moving. It will most probably drop with the weight of the wheel so be careful! You can then place the wheel according to your preference in height and angle and tighten when the position is satisfactory.

  • Page 24: Accessories

    Accessories Have you thought about accessories? Mounting plates for your shifter or handbrake, keyboard tray, cable management brackets, etc. We got you. Have a look through our catalog! https://www.advancedsimracing.com/collections/accessories-parts-for-the-chassis...
