ADVANCED SIMRACING ASR Pro Assembly And User's Manual

Wheel deck add-on
Hide thumbs Also See for ASR Pro:

Advertisement

Table of Contents

ASR Pro Wheel deck Add-on
ASSEMBLY AND USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASR Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADVANCED SIMRACING ASR Pro

Summary of Contents for ADVANCED SIMRACING ASR Pro

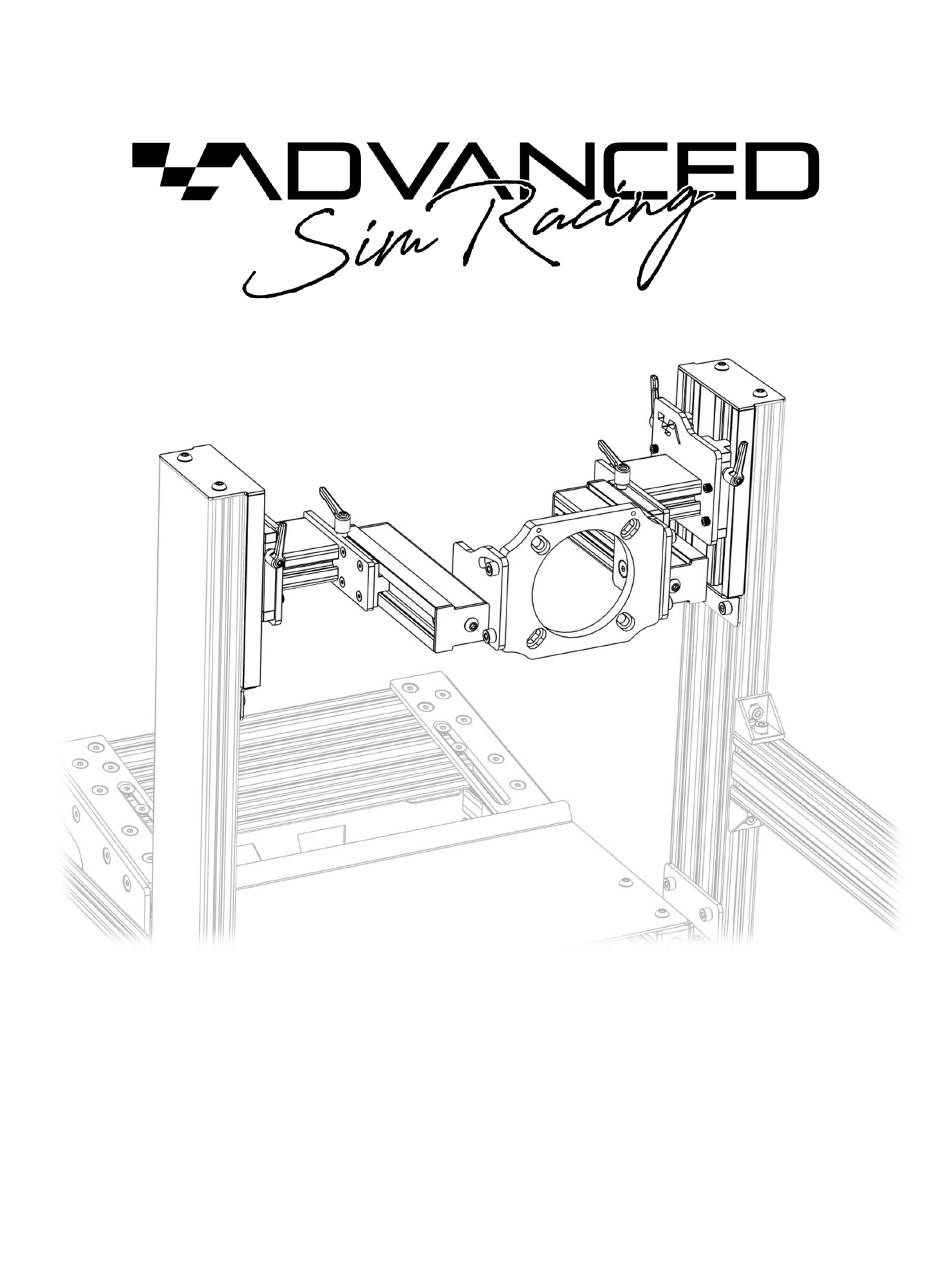

  • Page 1 ASR Pro Wheel deck Add-on ASSEMBLY AND USER GUIDE...

  • Page 2: Table Of Contents

    Table of Contents Required Tools ............................1 Content of packages .......................... 2 Common Content ........................... 2 Assembly guide ............................. 3 User Guide ............................11 Wheel deck adjustment ......................11...

  • Page 3: Required Tools

    Required Tools 6mm Allen key 5mm Allen Key Tape Measure For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center...

  • Page 4: Content Of Packages

    Content of packages Boxes 1X Wheel deck box Common Content 1.5” X 8” Extrusion – 2X Linear Guide – 6X 3” X 2 7/8” Extrusion – 2X M5 X 12 Flat Head M8 T-Nuts – 8X Guide fastening plate – 2X Screw - 8X Deck to vertical guide M8 X 16 Flat Head...

  • Page 5: Assembly Guide

    Assembly guide Assembly is shown with the ASR Pro, steps are the same for an ASR 4 or 6. Assemble the side plate to the 3” X 2 7/8” extrusion using 2X M8 X 16 flat head screws. Repeat for both sides, tighten fully.
  • Page 6 Assemble the vertical rollers to the side plate using 2X M5x16 socket screws each. Tighten no more than hand tight. Make sure to respect the orientation of the locking handles. Repeat for both sides. Assemble the linear guide rail with 2X M8 X 12 low profile socket screws and 2X t-nuts.
  • Page 7 Assemble the DD side plate with 2X M8 X 16 flat head screws and 2X M8 t- nuts, and slide on the 1.5” X 8” extrusion as shown. Place the DD side at 1” from the end of the 1.5” extrusion. Repeat for both sides. Tighten Fully. Slide the roller part of the guide through the guide rail.
  • Page 8 Install the 4 guide end plates using 1 M8 X 16 button head screw each. Tighten fully. Install the front mount plate using 4X M8 X 16 socket screws. Make sure to respect the orientation shown.
  • Page 9 Prepare the lower guide stopper with 2X M8 X 16 socket screws and 2X M8 t- nuts. Tighten no more than a turn. Repeat for both stoppers. Slide the stopper through the up-post. Repeat on both sides. Tighten by hand. Prepare the 4X remaining guide rails with 2X M8 x 12 low profile socket screws and 2X M8 t-nuts each.
  • Page 10 Slide the guides down the first and last slot of the 4.5” X 30” extrusion and place them flush to the top. Make sure the lower guide stopper is touching the guides at the bottom and tighten all screws.
  • Page 11 Slide down the wheeldeck through the guide rails. If it doesn’t slide right in, loosen the M5X16 screws holding the guide rollers. Once in place, tighten the locking levers to stop the wheeldeck from hitting the lower guide stopper. Install the upper guide stopper using 2X M8 X 16 button head screws. Repeat on both sides and tighten fully.
  • Page 12 Congrats on your new ASR Pro adjustable wheel deck!

  • Page 13: User Guide

    User Guide Wheel deck adjustment The Pro wheel deck brings a quick and easy depth and height adjustment to accommodate either different wheels or different drivers. To adjust depth, loosen the two levers for the horizontal linear guides, place to the desired spot, and re-tighten.
