25.

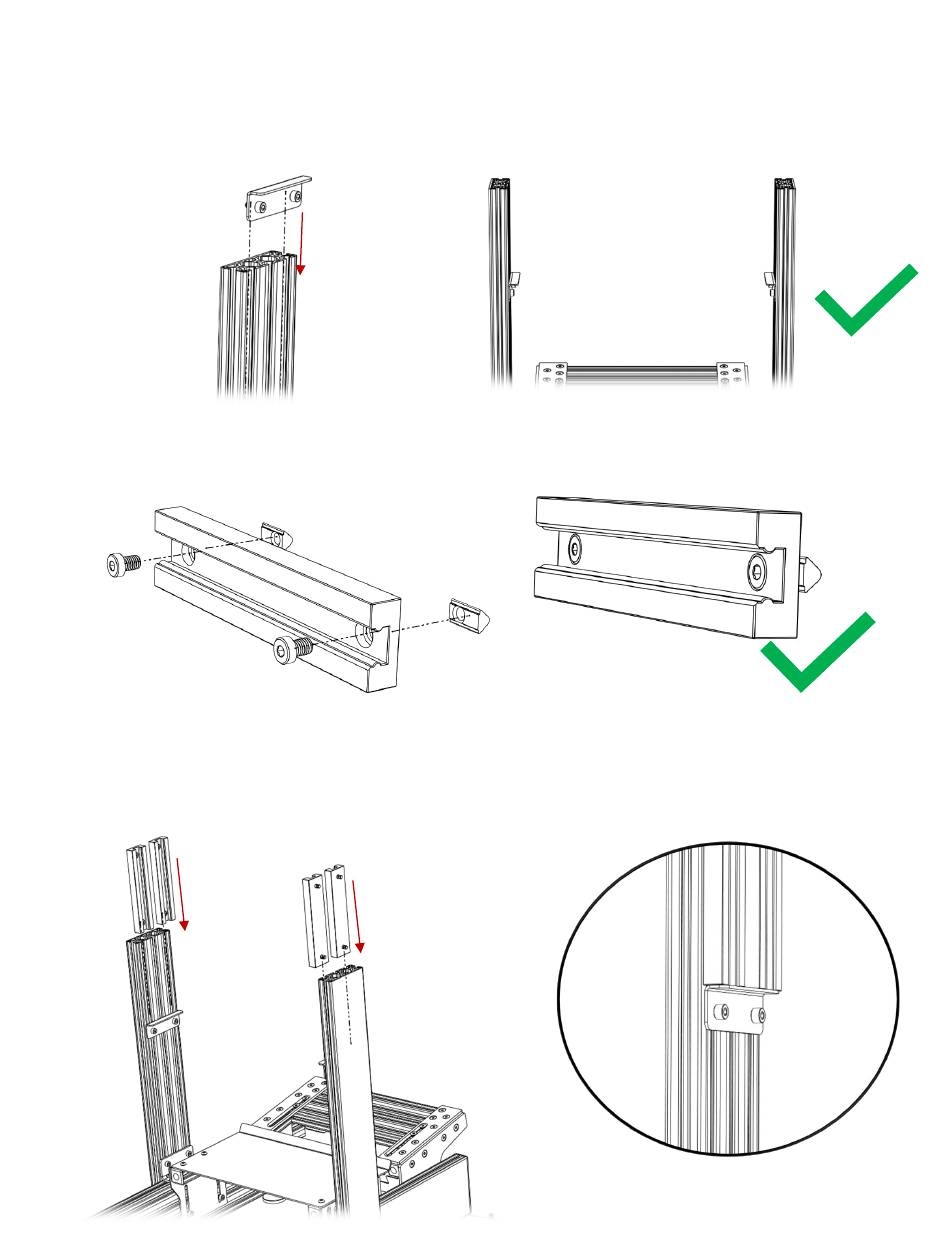

Slide the stopper through the up-post. Repeat on both sides. Tighten by hand.
26.
Prepare the 4X remaining guide rails with 2X M8 x 12 low profile socket screws
and 2X M8 t-nuts each.
4X
27.
Slide the guides down the first and last slot of the 4.5" X 30" extrusion and place
them flush to the top. Make sure the lower guide stopper is touching the guides
at the bottom and tighten all screws.
16
