Summary of Contents for SMITH SYSTEM Constellate Book Display Casters & Glides

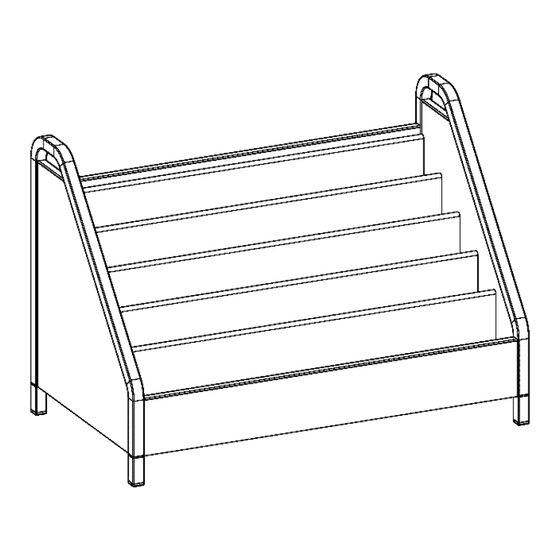

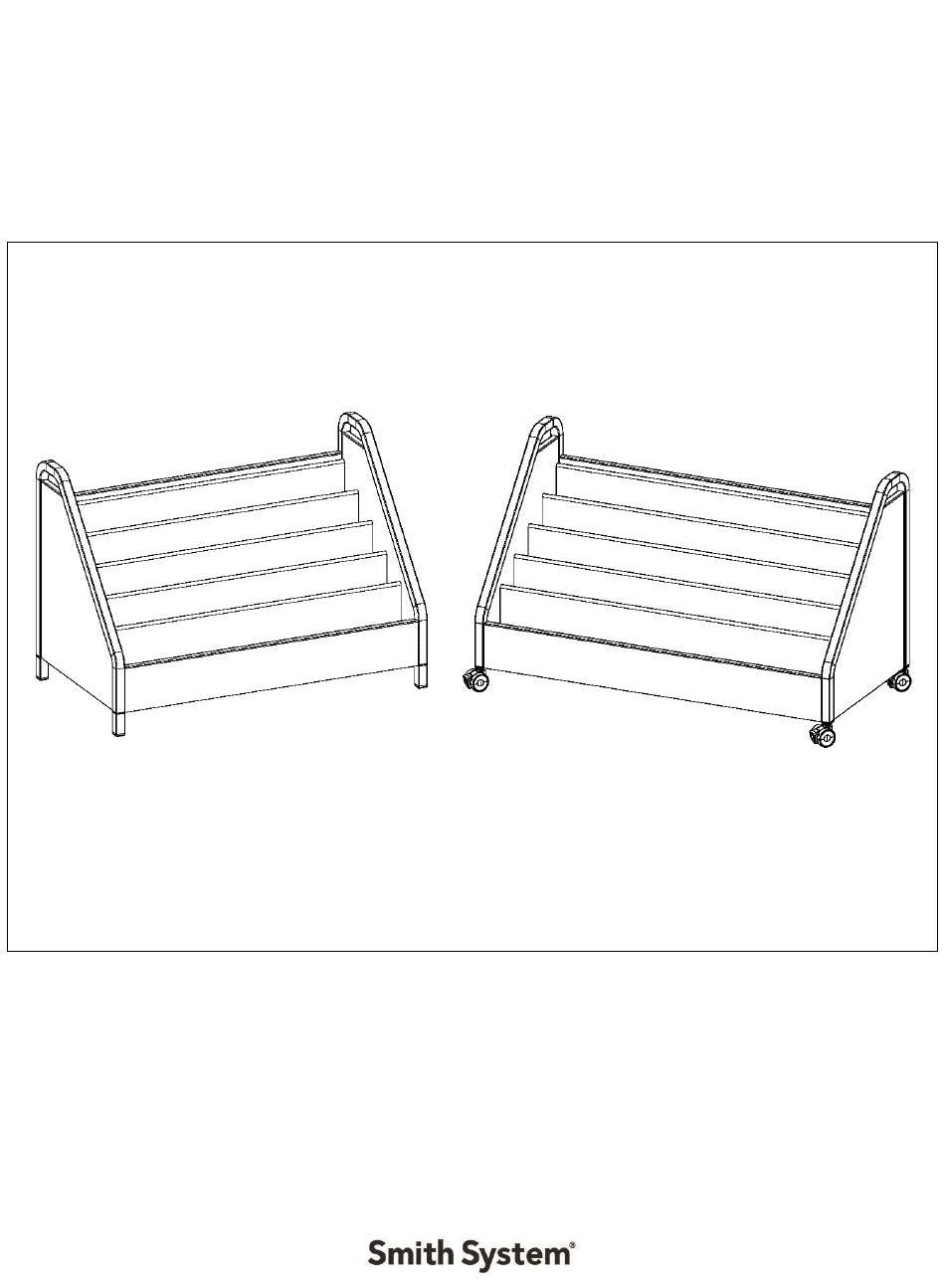

- Page 1 Assembly Instructions Constellate Book Display Casters & Glides If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179729 REVISED: 02/2024...
- Page 2 Hardware and Components CASTER MODELS ONLY (PN:60021 x4) GLIDE MODELS ONLY (PN:60372) Special Notes: • TOOLS REQUIRED: o Drill w/ 3/16”x3” hex driver bit (bit provided) – For glide assembly only. o NOTE: Do NOT use impact drills. • Check that all components are accounted for and undamaged before assembling. •...
- Page 3 BD36C & BD42C Assembly Instructions 1. Unpack and confirm all parts are present. 2. As a team, remove the Constellate Book Display unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. 3.
- Page 4 BD36G & BD42G Assembly Instructions 1. Unpack and confirm all parts are present. 2. As a team, remove the Constellate Book Display unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. 3.
