SMITH SYSTEM 58021 Assembly Instructions Manual

SMITH SYSTEM 58021 Assembly Instructions Manual

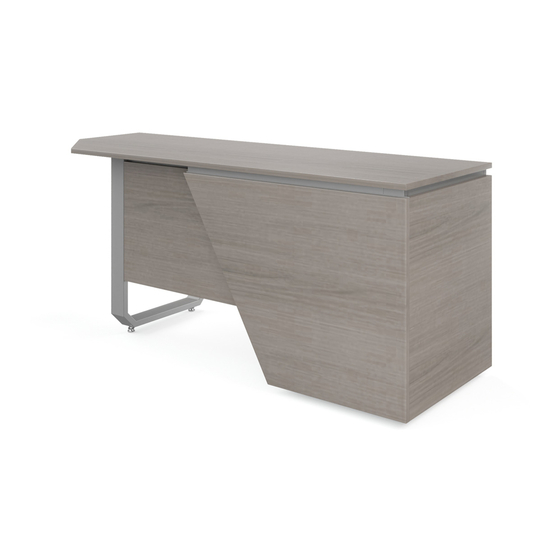

Motum teachers desk split height left hand

Advertisement

Quick Links

Assembly Instructions

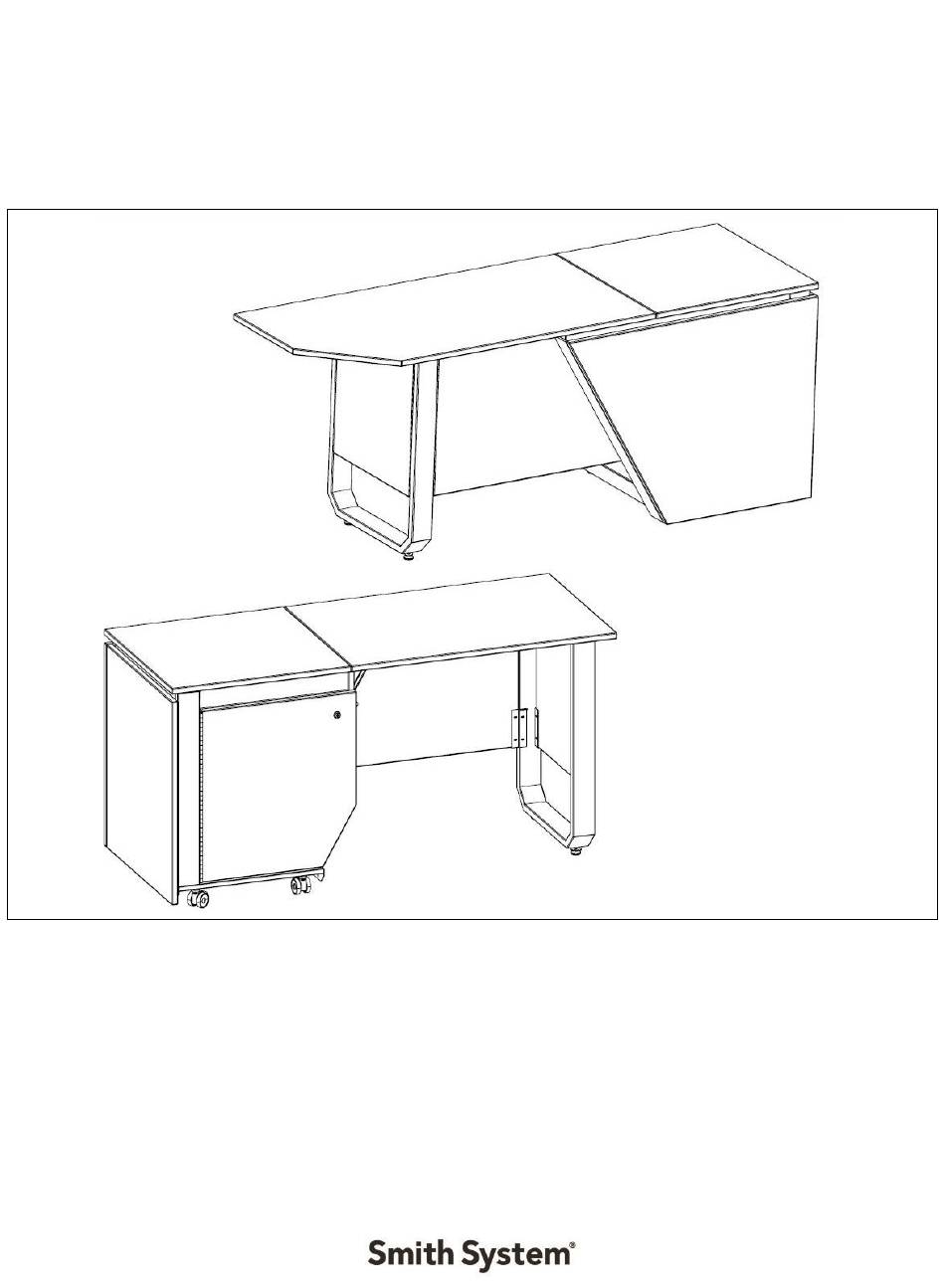

MOTUM TEACHERS DESK
SPLIT HEIGHT LEFT HAND
MODEL NUMBERS
58021 AND 58023
Document #: 179719
If you have damaged or missing components,
please contact customer service at 1-800-328-1061
REVISED: 2/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the 58021 and is the answer not in the manual?

Questions and answers

Summary of Contents for SMITH SYSTEM 58021

  • Page 1 Assembly Instructions MOTUM TEACHERS DESK SPLIT HEIGHT LEFT HAND MODEL NUMBERS 58021 AND 58023 If you have damaged or missing components, please contact customer service at 1-800-328-1061 REVISED: 2/2022 Document #: 179719...
  • Page 2 Hardware and Components BOX A (60149) ITEM NO. DESCRIPTION TEACHER DESK U TUBE LEG ASSEMBLY SWIVEL GLIDE W/ GLIDE STOP TEACHER DESK STRAIGHT TUBE LEG ASSEMBLY TD BRACED L BRACKET TD STRAIGHT TUBE LEG Z BRACKET ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Vibra tion-Res is ta nt Ca tch TD SUPPORT BRACE...
  • Page 3 Hardware and Components BOX B (60150) ITEM NO. DESCRIPTION TD SPLIT LAMINATE COVER LH SIDE TD SPLIT LAMINATE COVER LH FRONT SIT-STAND DESK FLIP TOP COLUMN REVISED: 2/2022 Document #: 179719...
  • Page 4 Hardware and Components BOX A ITEM #A-13 (60139) – TEACHERS DESK HARDWARE PACK COMPONENTS BOX B ITEM #B-11 (60140) – TD SPLIT HEIGHT HARDWARE PACK COMPONENTS REVISED: 2/2022 Document #: 179719...
  • Page 5 Hardware and Components FOR 72” MODEL ONLY FOR 60” MODEL ONLY 58023 58021 REVISED: 2/2022 Document #: 179719...
  • Page 6: General Assembly Guidelines

    General Assembly Guidelines Special Notes: • Ensure that all components are accounted for and undamaged before assembling • Follow each step carefully to ensure the proper assembly of this product • 2-person assembly is highly recommended • Clean the product with a mild cleaner and damp cloth Tools: •...
  • Page 7 Assembly Instructions 1. Place wood top on clean smooth surface upside down with the pilot holes facing up, fasten 2x item #A-7 to item A using 4x fasteners item #13-1 using the supplied T25 Torx bit item #13-4. 2. Slide the previously assembled panel A onto item #A-3, item #A-7 should side over the metal lip of item #A-3 as shown.
  • Page 8 Assembly Instructions 3. Using previously assembled components install item #A-4 and #A-5 using 4x fastener #13-3, do not fully tighten, install item #B-2 using 3x fastener #13-1 note to orientation of #B-2, do not fully tighten. Optional: Use 1x fastener #13-1 to hold #A-3 in place.
  • Page 9 Assembly Instructions 5. Fasten 4x item #B-8 and 1x item #B-9 to panel M using 10x fasteners item #11-1 using the supplied T25 Torx bit item #13-4. 6. Position Panel N as shown over the top of item #B-12. Fasten panel N to item #B-12 using 4x fasteners item #11-3 and #11-10, finger tighten only.
  • Page 10 Assembly Instructions 7. Using 2x item #A-10 as spacers. Place panel D as shown. Confirm edges of panels D and A align as shown. Fasten panel D with the 2x indicated fastener #13-1. Confirm edges of panels D and A are still aligned before installing the remaining 6x #13-1 fasteners 8.
  • Page 11 Assembly Instructions 9. Fasten item #B-7 with 6x fastener #11-1, it is recommended to use a square to ensure panel M is vertical. 10. Remove noted fastener from step 3. Install item #B-1 as shown using 6x fastener 11- 1 and 3x fastener 11-3. REVISED: 2/2022 Document #: 179719...
  • Page 12 Assembly Instructions 11. Slide item #B-4 under item #A-11. Align the edges of item #A-11 and #B-8 with the reference line as shown. Fasten down using 6x fastener #11-1 Align the edges of items #B-8 and #A-11 with the reference lines Reference Line 12.
  • Page 13 Assembly Instructions 13. Place item #A-12 as shown. Confirm faces of panel D and item #A-12 align as show. Fasten item #A-12 with the 5x fasteners #11-1. Edges of panel D and item #12 should be flush as shown, check top and bottom before fastening.
  • Page 14 Assembly Instructions 15. Place the previously assembled item #A-1 and panel B as shown. Attach item #A-8 using 2x fastener #13-1 to panel C and attached item #A-8 to item #A-1 using 2x fastener #13-3, finger tighten only. Confirm the gap between item #A-1 and panel C is constant and as minimal as possible as shown below.
  • Page 15 Assembly Instructions 17-A. This step is 72” model only (58022), for 60” model (58020) skip to step 17-B. Line up item #5 with the reference line. Install 8x fasteners #6 from hardware pack supplied with item #5 into panel T . Reference line 17-B.
  • Page 16 Assembly Instructions 18. Place item #B-10 with the tape face down. Position item #11 as shown below, fasten to item #B-10 using 4x fasteners #11-5 and #11-11 Cable should face the same side as the wider side of item #B-10 19.
  • Page 17 Assembly Instructions 20. On a soft, clean surface flip the desk on its front face as shown. Insert the previously assembled panel O into the unit as shown, fasten panel O with 2x fastener #13-1. 21. Carefully insert the previously assembled item #11 as shown below, the cables should be facing up.
  • Page 18 Assembly Instructions 22. Install item #B-6 first as shown below by sliding the tab into the slot of item #A-11. Slide over to lock into place. Repeat step for item #B-3. Slide item #B-6 back to touch item #B-3. 23. Install 4x of fastener #11-10 and #11-9 as shown, fastening items #B-3 and #B-6 in place.
  • Page 19 Assembly Instructions 24. Install item #7, #8, #9 and #10 as shown below. 25. Carefully flip table to stand upright, without removing the tape backing, place panel K on top of item #B-10. While pressing the right lever, push down on panel K until it makes contact with the top of item #B-3.
  • Page 20 Assembly Instructions 26. While applying pressure to panel K, press right lever to raise lift mechanism fully. Using 4x fastener #13-1, attach top K as shown while applying pressure from above. 27. Attach lift the lever and item #11-6 with 4x fastener #13-1 choosing your left- or right- hand operation.
  • Page 21 Assembly Instructions 28. Assemble door lock item #B-5 as shown with the gray laminate side facing up. Install item #2 using 2x fastener #3. 29. Place previously assembled panel L as shown, installing indicated 3x fastener #13-1 first. Confirm the door hangs level, latches, and locks correctly. Lock the door location in place by installing 1x fastener #13-1 in panel L and 1x fastener #11-2 in the inside of the unit.

This manual is also suitable for:

58023
