Page 1

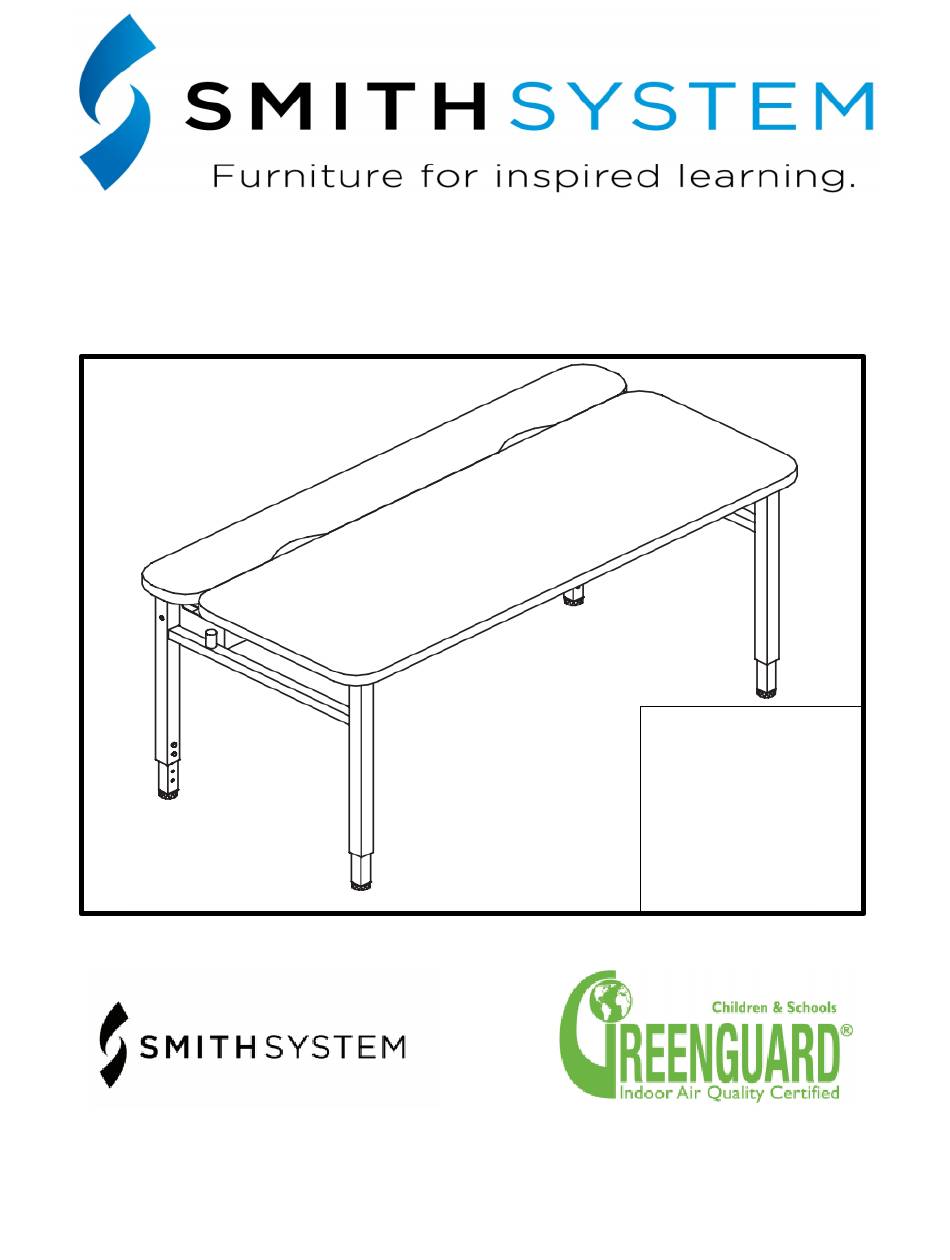

Access Station Assembly Instructions Models: 11160 11140 11161 11141 11162 11142 11163 11143 11164 11144 11165 11145 11166 11146 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at www.smithsystem.com...
Page 2
Hardware and Components P/N: 70867 P/N: 70869 P/N: 70054 (QTY: 4) (QTY:4) #10X3/4” Wood Screw Connector Bolt ¼-20X23mm Connector Nut ¼-20X17mm P/N: 77741 P/N: 77813 (QTY: 8) (QTY:2) 3/8-16X.625 ½Dog Socket Screw Hex Key Allen Wrench 3/16 Planner Leg Set (QTY: 1 Set) Wire Manager With Door and Lock (QTY: 1)
Page 4
Step 3: Attach the PSD legs using (4) Truss head screws to the table top through the predrilled holes. Do not place the screws in the back two holes of the leg (See drawing 3A). Then, screw the wire manager into the table top using the provided wood screws (See drawing 3B). Now, go back and tighten the connector bolts referenced in Step 1.
