Assembly Instructions

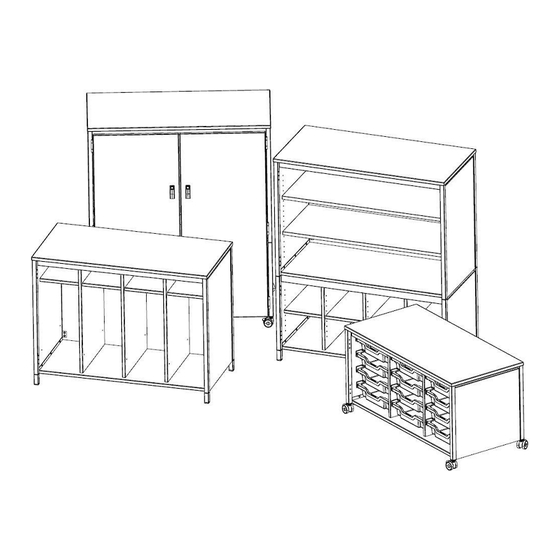

CONSTELLATE CLASSROOM STORAGE
STACK KITS
For video assembly instructions visit our YouTube channel @
https://www.youtube.com/@SmithSystemFurniture
Document #: 179727
Revised: 11/28/2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONSTELLATE CLASSROOM STORAGE STACK KITS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMITH SYSTEM CONSTELLATE CLASSROOM STORAGE STACK KITS

  • Page 1 Assembly Instructions CONSTELLATE CLASSROOM STORAGE STACK KITS For video assembly instructions visit our YouTube channel @ https://www.youtube.com/@SmithSystemFurniture Document #: 179727 Revised: 11/28/2023...
  • Page 2 Hardware And Components GLGLIDE MODELS ONLY (PN: 60372) CASTER MODELS ONLY INCLUDED WITH ALL MODELS ANCHOR KIT PACK (PN: 60375) FOR CUSTOMER STACK KITS ONLY (PN: 60570) Document #: 179727 Revised: 11/28/2023...
  • Page 3 Hardware And Components FOR CUSTOMER DOOR ADD ONS ONLY (PN: 60571) FOR CUSTOMER DOOR ADD ONS ONLY (PN: 60576) DOOR MODELS ONLY FOR DOOR UNITS ONLY (PN: 60550) Document #: 179727 Revised: 11/28/2023...
  • Page 4 General Assembly Guidelines • Ensure that all components are accounted for and undamaged before assembling • Follow each step carefully to ensure the proper assembly of this product • 2-person assembly is highly recommended • Clean the product with a mild cleaner and damp cloth Tools •...
  • Page 5 Caster Assembly Instructions Unpack and confirm all parts are present. As a team, remove the Constellate unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. Tilt unit to one side to install 2x casters, it is a press fit, lock casters once done. Tilt unit to opposite side to install 2x remaining casters.
  • Page 6 Glide Assembly Instructions 1. Unpack and confirm all parts are present. As a team, remove the Constellate unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. Tilt unit to one side to install 2x glides using supplied Allen key. Allen key head is accessed through a hole in the bottom of the glide.
  • Page 7 Stack Kit – New Unit on Bottom Assembly Instructions 1. Unpack and confirm all parts are present. As a team, remove the Constellate Stack Unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. Remove all loose shelves or totes from both units.
  • Page 8 As a team, lift the upper unit onto the bottom unit, aligning the plastic inserts as shown. NOTE: There should be no gap between the plastic inserts and the metal tubes. 7. From inside the bottom unit, install the included 8x 70079 fasteners from the Stack Kit Hardware Pack as shown, do not over tighten.
  • Page 9 Stack Kit – New Unit on Top Assembly Instructions 1. Unpack and confirm all parts are present. As a team, remove the Constellate Stack Unit from the pallet and place standing up on a smooth flat surface. Do not lay on its back. Remove all loose shelves or totes from both units.
  • Page 10 6. Install the 2x wood dowls that came in the stack kit hardware pack as shown in the new upper unit. 7. As a team, place the top removed from the old unit on the new unit aligning the wood pegs. From inside the bottom unit, install the 8x 70079 fasteners removed from the old unit as shown, do not over tighten.
  • Page 11 9. From inside the bottom unit, install the included 8x 70079 fasteners from the Stack Kit Hardware Pack as shown, do not over tighten. 10. If installing doors, please see Door Install Assembly Instructions below. 11. Complete. Document #: 179727 Revised: 11/28/2023...
  • Page 12 Unstack Kit Assembly Instructions 10. Unpack and confirm all parts are present. 11. Remove all loose shelves or totes from the stacked unit that you are unstacking. 12. From inside the bottom unit, remove the 8x 70079 as shown, save fasteners for future steps. NOTE: DO NOT REMOVE THE 6 FASTENERS SHOWN BELOW.
  • Page 13 14. Using the top that came with the unstack kit, as a team place the top on the remaining unit aligning the wood pegs.. 15. From inside the bottom unit, install the 8x 70079 fasteners removed from the old unit as shown, do not over tighten.
  • Page 14 Door Install Assembly Instructions 1. Install protective film centered on the header where the door magnet will make contact as shown. Aligning with the bottom edge of the header. 2. Align fully assembled door as shown below. Using supplied hardware pack attach each door. It is recommended to install the doors as a team to avoid bending hinges during installation.
  • Page 15 3. Complete. Document #: 179727 Revised: 11/28/2023...
  • Page 16 Door Handle Assembly Instructions 1. Install casters or glides first, see caster or glide assembly instructions. Installed handles as shown. NOTE: P15306, the shorter machine screw goes into the top hole. Complete. Document #: 179727 Revised: 11/28/2023...
  • Page 17 Anchor Kit Assembly Instructions 1. Position bracket as shown below on the back of the unit, keeping the bracket inside the hatched area. 2. Attach bracket using 2x P15316 fasteners. 3. Mount other bracket within 6” of the bracket mounted to the back of the unit on the wall of your choice using adequate hardware, capable of supporting 400lbs.
