Assembly Instructions

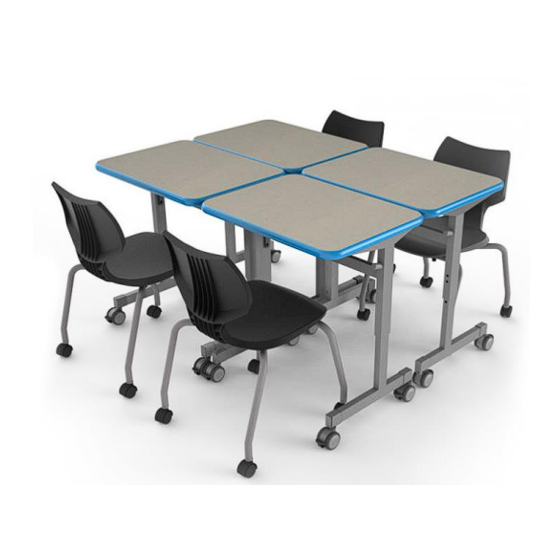

Silhouette Student Desk
Model Numbers: 01600, 01601, 01602, 01603, 01648, 01649 01650, 01651, 01653, 01654, 01657,
01675, 01676, 01677
If you have damaged or missing components,
please contact customer service at 1-800-328-1061
Document #: 179868
REVISED: 06/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMITH SYSTEM Silhouette 01600
Summary of Contents for SMITH SYSTEM Silhouette 01600

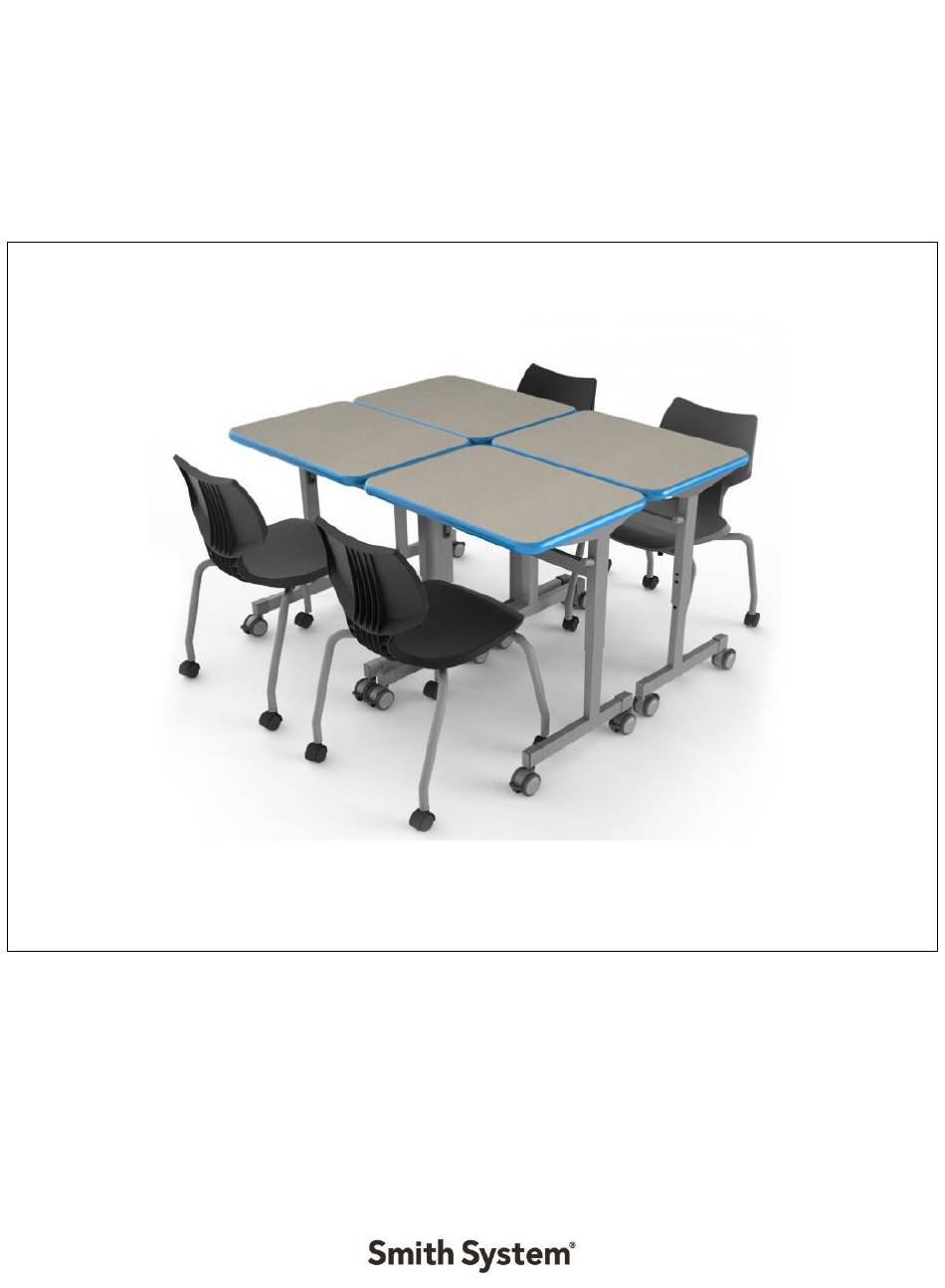

- Page 1 Assembly Instructions Silhouette Student Desk Model Numbers: 01600, 01601, 01602, 01603, 01648, 01649 01650, 01651, 01653, 01654, 01657, 01675, 01676, 01677 If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179868 REVISED: 06/2023...
- Page 2 Hardware and Components Special Notes: • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. • You may need another person to help assemble the product. Team lifting may be required.
- Page 3 Assembly Instructions 1. Place the tabletop on a clean Loosely attach Cross Brace to surface facedown, with seam T-Legs using M8x12MM Cap Screws. location furthest away from you. 4. Align the front of the bracket to be flush 3. Align the rear of the bracket to with the tabletop edge.
- Page 4 Assembly Instructions 6. Fully Tighten all (4) M8x12MM Cap 5. Finish fastening the T-Legs to Screws using the provided Allen Wrench. the tabletop by driving a #10 Wood (Screws from step 2) Screw in the center hole on each leg bracket.
